MONITOR CART
How to Connect
Mains Power Cable
Steps
NOTE: To unplug the mains power cable from the system, turn plug counterclockwise, then pull
the connector out.
Connecting Camera For information on connecting Camera Cart to the Monitor Cart using the camera cable, see
page 68.
System User Guide Rev. 1.0 Curve Dual Display, Curve Single Display Ver. 1.0
1. Connect mains power cable
• Ensure that notches are correctly aligned when inserting the plug.
• Secure connection by turning the plug clockwise 45°.
2. Plug mains power cable into wall outlet.
Check voltage setting before plugging mains power cable into wall outlet.
Always remove the mains power cable from the wall outlet first, before unplugging the
cable from the system.
a

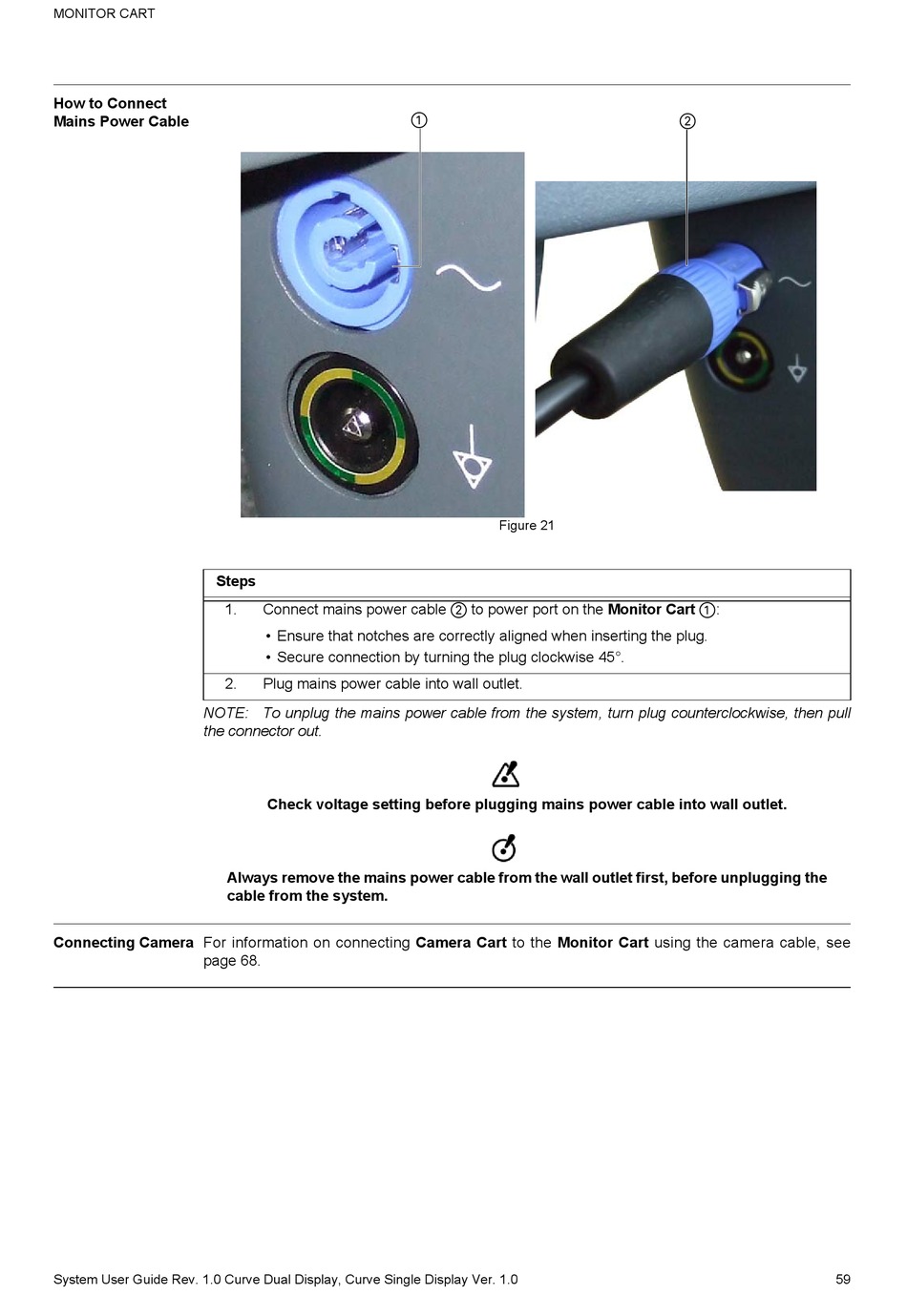

Figure 21
s to power port on the Monitor Cart
s
a :
