TRANSPORT
How to Position
Camera Cart -
Curve Single
Display
Steps
System User Guide Rev. 1.0 Curve Dual Display, Curve Single Display Ver. 1.0
1.
2.
3.

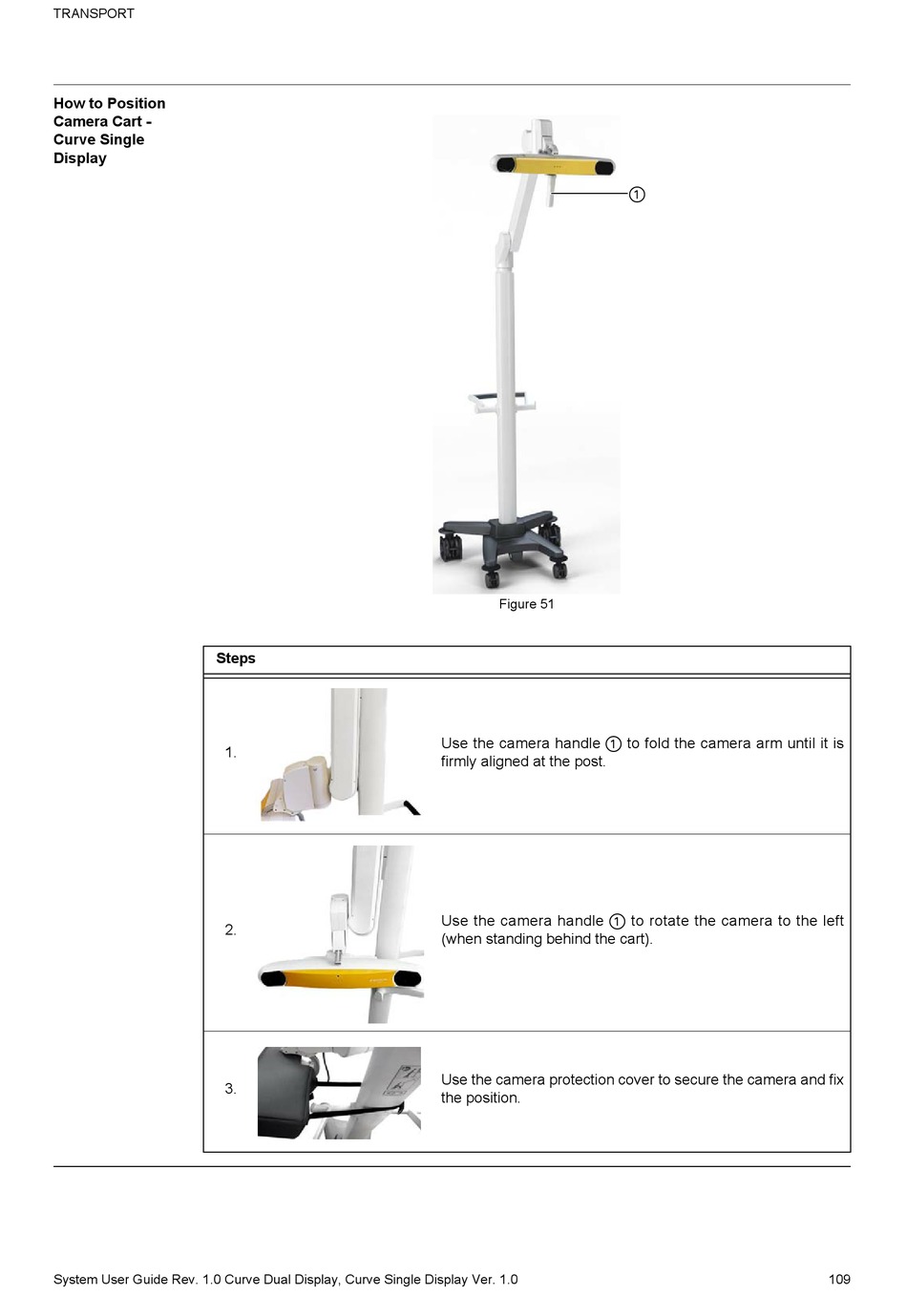

Figure 51
Use the camera handle
a
firmly aligned at the post.
Use the camera handle a
(when standing behind the cart).
Use the camera protection cover to secure the camera and fix
the position.
a
to fold the camera arm until it is
to rotate the camera to the left
109
