Cart Arms and Monitors

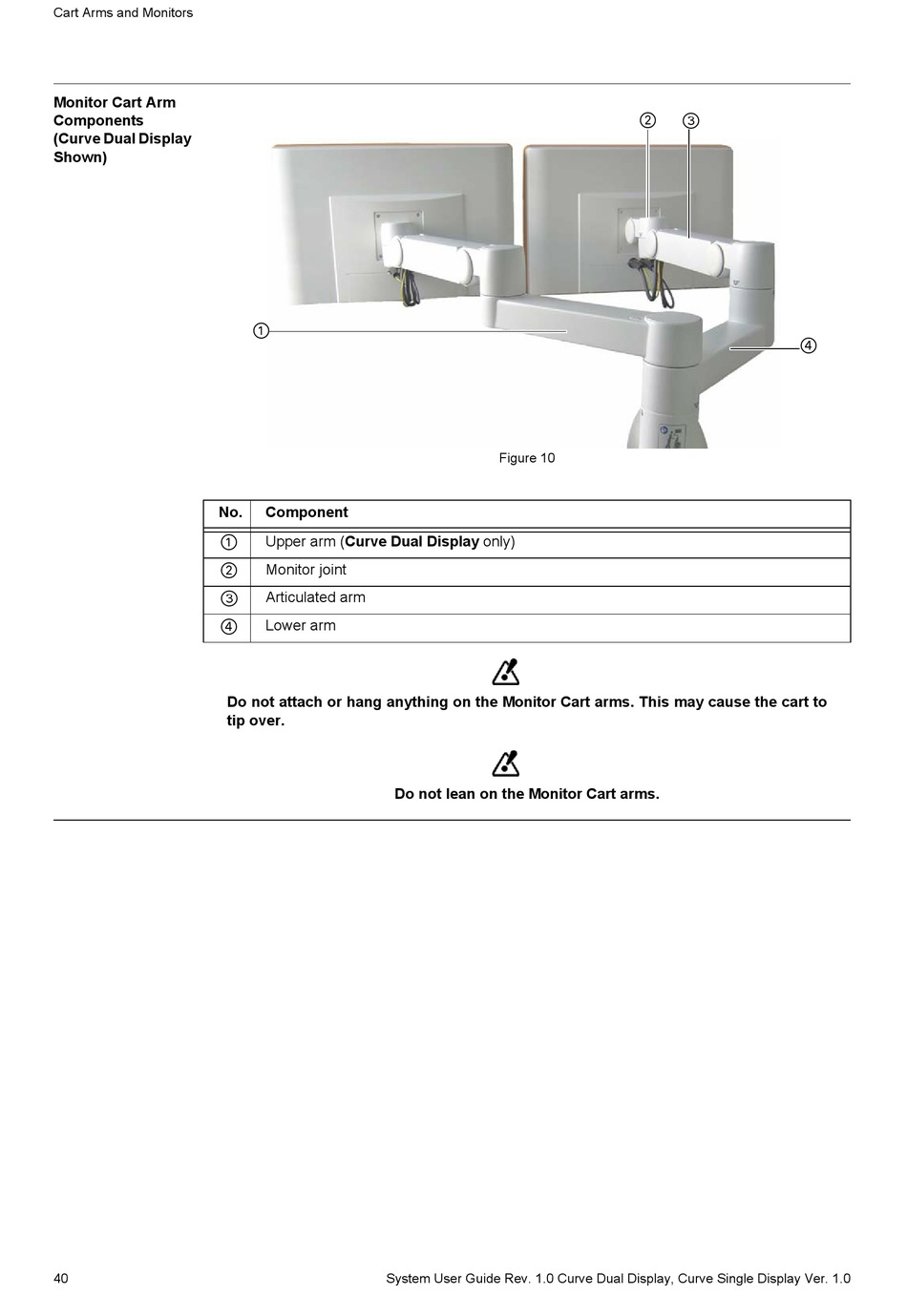

Monitor Cart Arm
Components
(Curve Dual Display
Shown)
No.
a
s
d
f
40
a
Component
Upper arm (Curve Dual Display only)
Monitor joint
Articulated arm
Lower arm
Do not attach or hang anything on the Monitor Cart arms. This may cause the cart to
tip over.
Do not lean on the Monitor Cart arms.
System User Guide Rev. 1.0 Curve Dual Display, Curve Single Display Ver. 1.0
s
Figure 10
d
f
