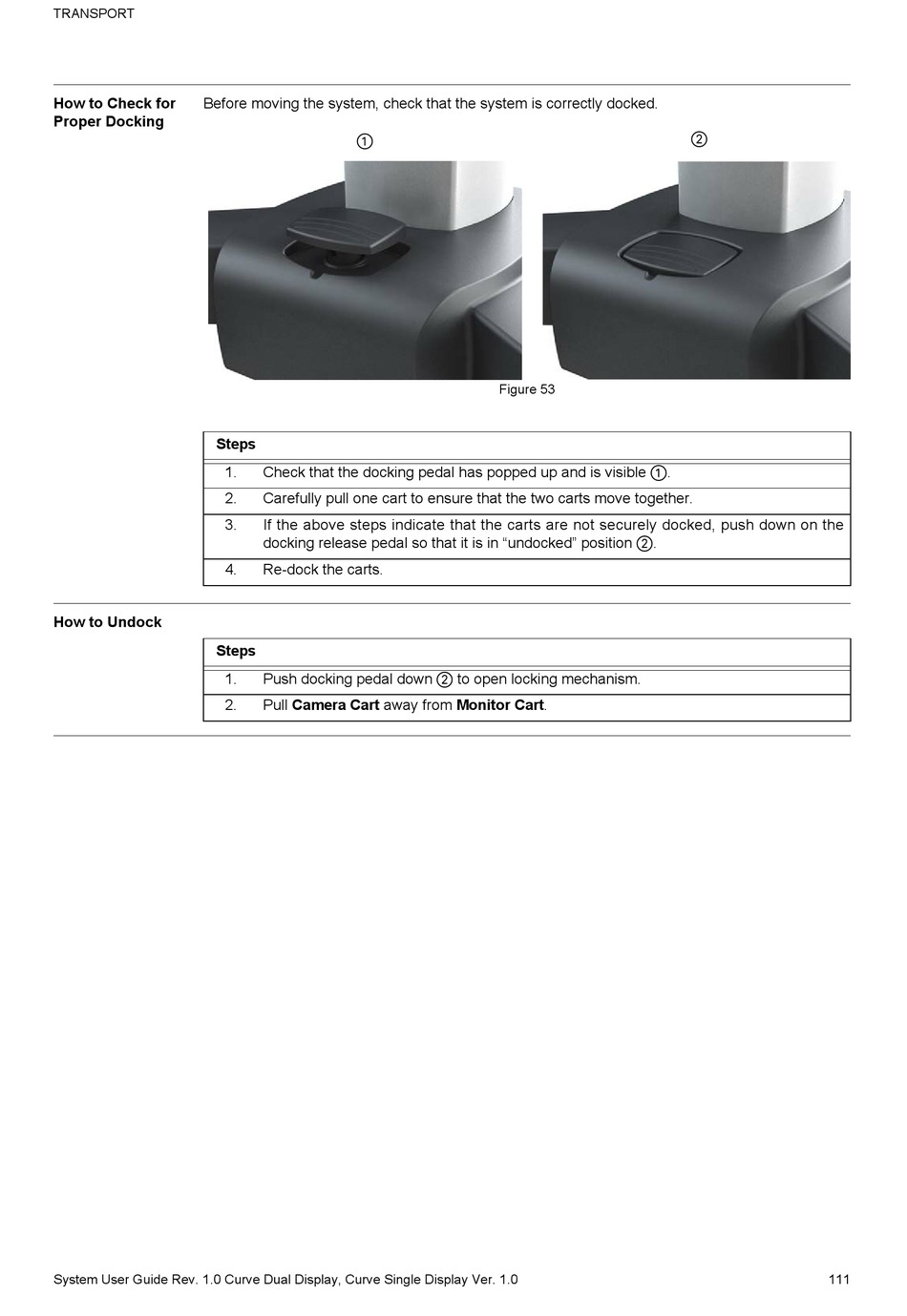

Brainlab CURVE DUAL System User's Manual page 111

TRANSPORT
How to Check for Before moving the system, check that the system is correctly docked.
Proper Docking
Steps
How to Undock
Steps
System User Guide Rev. 1.0 Curve Dual Display, Curve Single Display Ver. 1.0
a
1. Check that the docking pedal has popped up and is visible
2. Carefully pull one cart to ensure that the two carts move together.
3. If the above steps indicate that the carts are not securely docked, push down on the
docking release pedal so that it is in "undocked" position
4. Re-dock the carts.
1. Push docking pedal down
2. Pull Camera Cart away from Monitor Cart.
Figure 53
to open locking mechanism.
s
s
.
a
.
s
