TRANSPORT

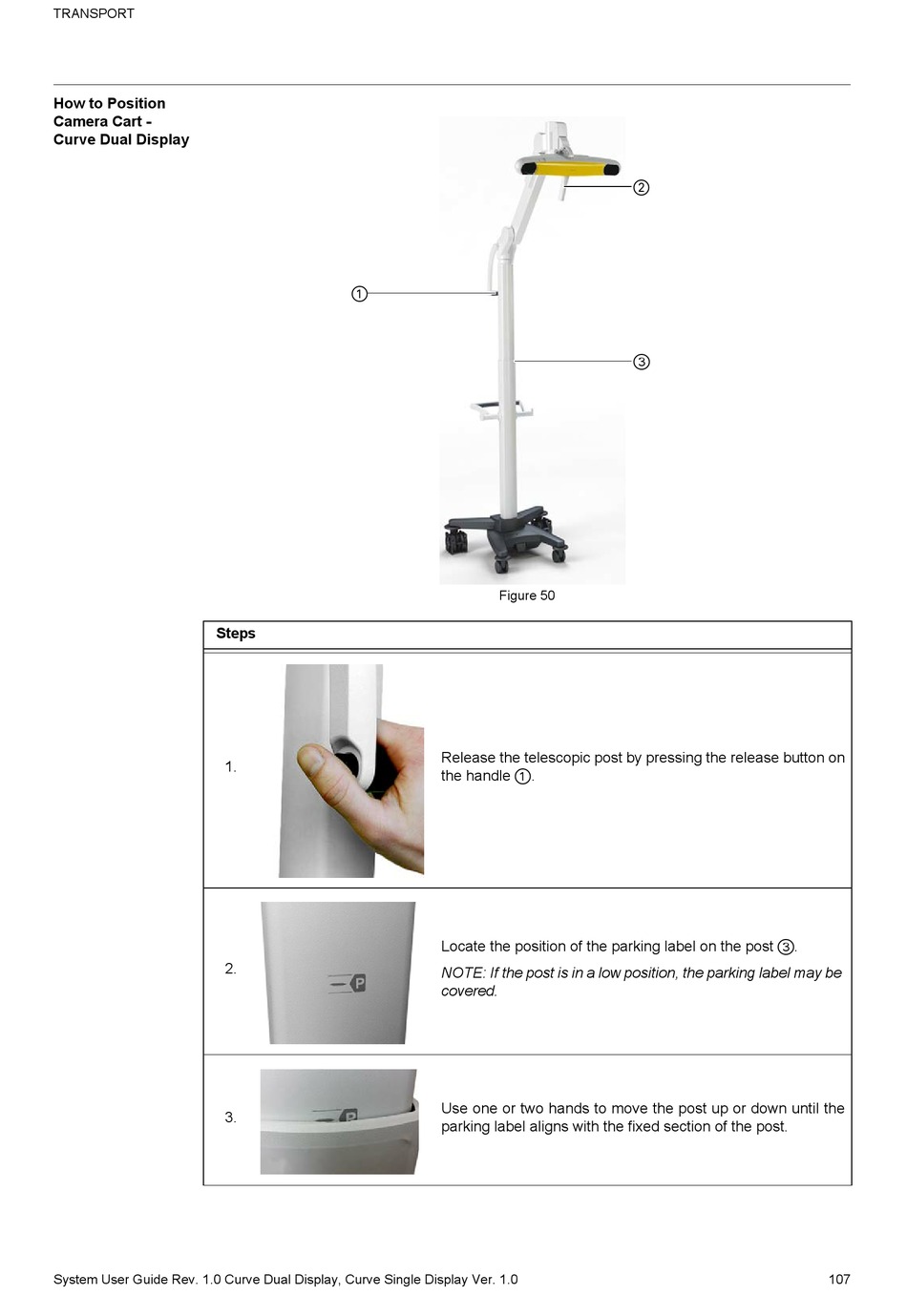

How to Position
Camera Cart -
Curve Dual Display
Steps
System User Guide Rev. 1.0 Curve Dual Display, Curve Single Display Ver. 1.0
a
1.
2.
3.
Figure 50
Release the telescopic post by pressing the release button on
the handle .
a
Locate the position of the parking label on the post
NOTE: If the post is in a low position, the parking label may be
covered.
Use one or two hands to move the post up or down until the
parking label aligns with the fixed section of the post.
s
d
.
d
