Cart Arms and Monitors
3.3.4

Locking Monitors

How to Lock and
Unlock Monitors
and Cart Arms
Steps
When to Lock Ensure that all cart arm locks are secure:
• Before using the touchscreen(s)
• Before docking the system
• Before transportation
• Curve Dual Display only: Before using motorized camera controls, especially if using a Sterile
46
1. Turn the locking knob
Once the desired position is reached, turn the locking knob
2.
itor or cart arm.
Gently check that the monitor/cart arm does not move when touched.
3.
Tighten the locking knob if monitor/cart arm movement is still possible.
Before using the system, lock the Monitor Cart joints into the required position using
the screwable locks to avoid unintentional movement.
Touchpen to press camera control buttons (see page 92)
System User Guide Rev. 1.0 Curve Dual Display, Curve Single Display Ver. 1.0

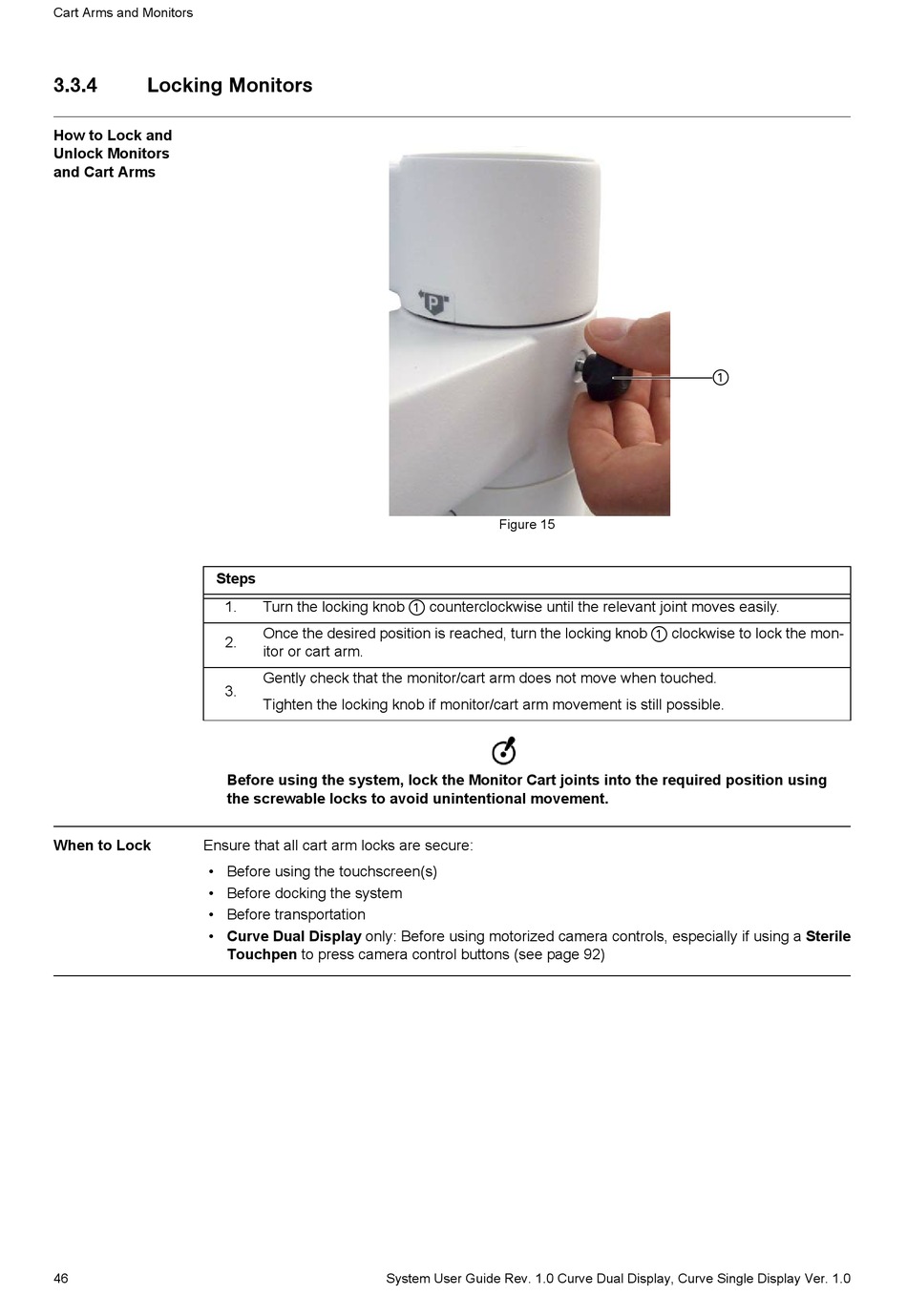

Figure 15
