TRANSPORT

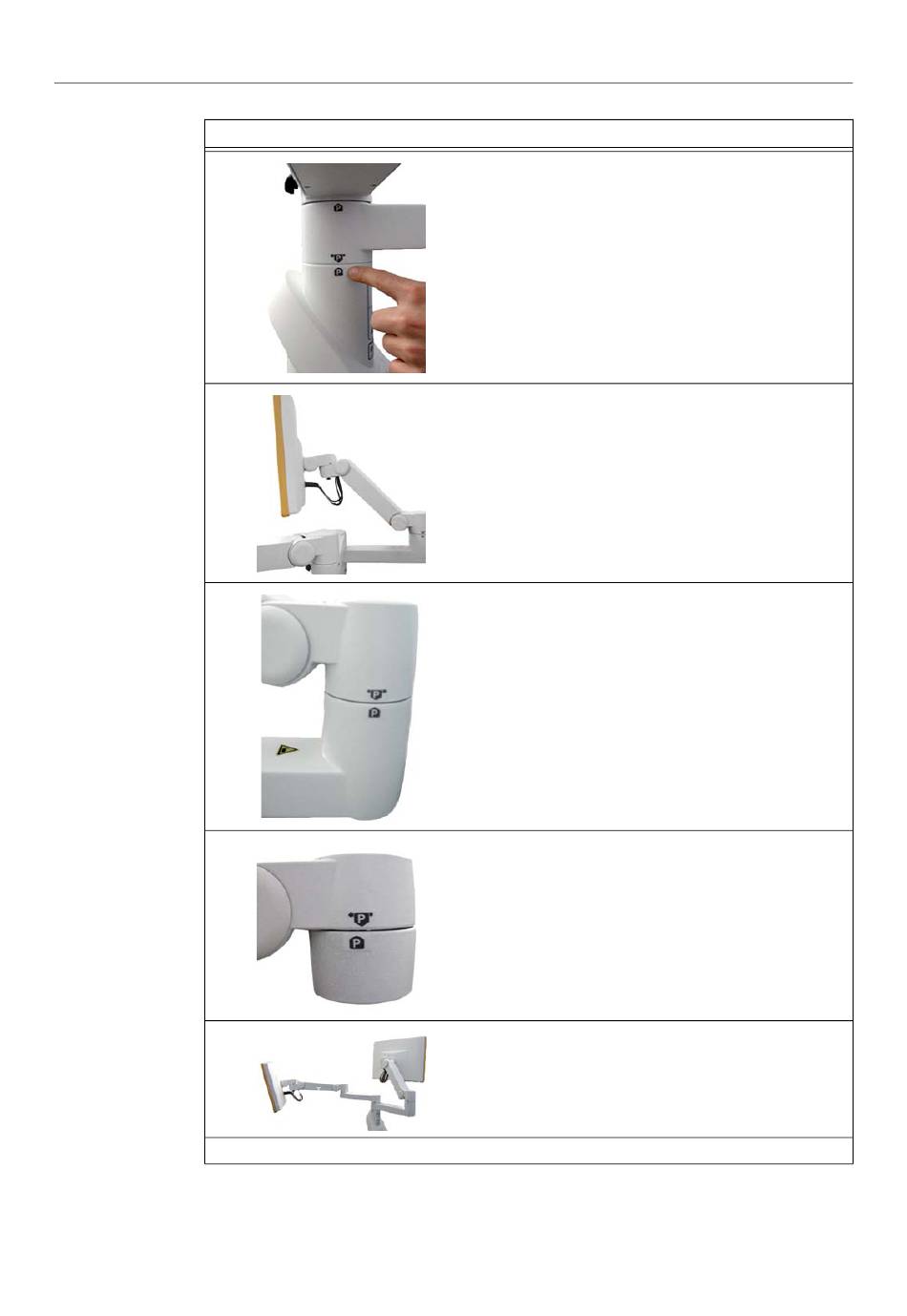

How to Position
Monitor Cart
Steps
System User Guide Rev. 1.0 Curve Dual Display, Curve Single Display Ver. 1.0
1.
2.
3.
4.
5.
6. Fix all screwable locks on this arm to avoid unintentional movement (see page 46).
Rotate the (lowest) arm in the direction indicated on the park-
ing label until the label lines up with the corresponding label
on the Monitor Cart post.
NOTE: If you are using a Monitor Cart - Curve Dual Display,
always begin with the lower arm.
NOTE: Be aware that there is a fixation that causes the upper
arm to move when the angle between both arms is 90°.
Tilt the articulated arm up as high as possible.
Move the inner joint of the articulated arm in the direction indi-
cated on the parking label until the label lines up with the cor-
responding label on the extension arm.
Move the monitor rotation joint in the direction indicated on
the parking label until the label lines up with the correspond-
ing label on the articulated arm.
The lower arm is now in final position.
