Cart Arms and Monitors

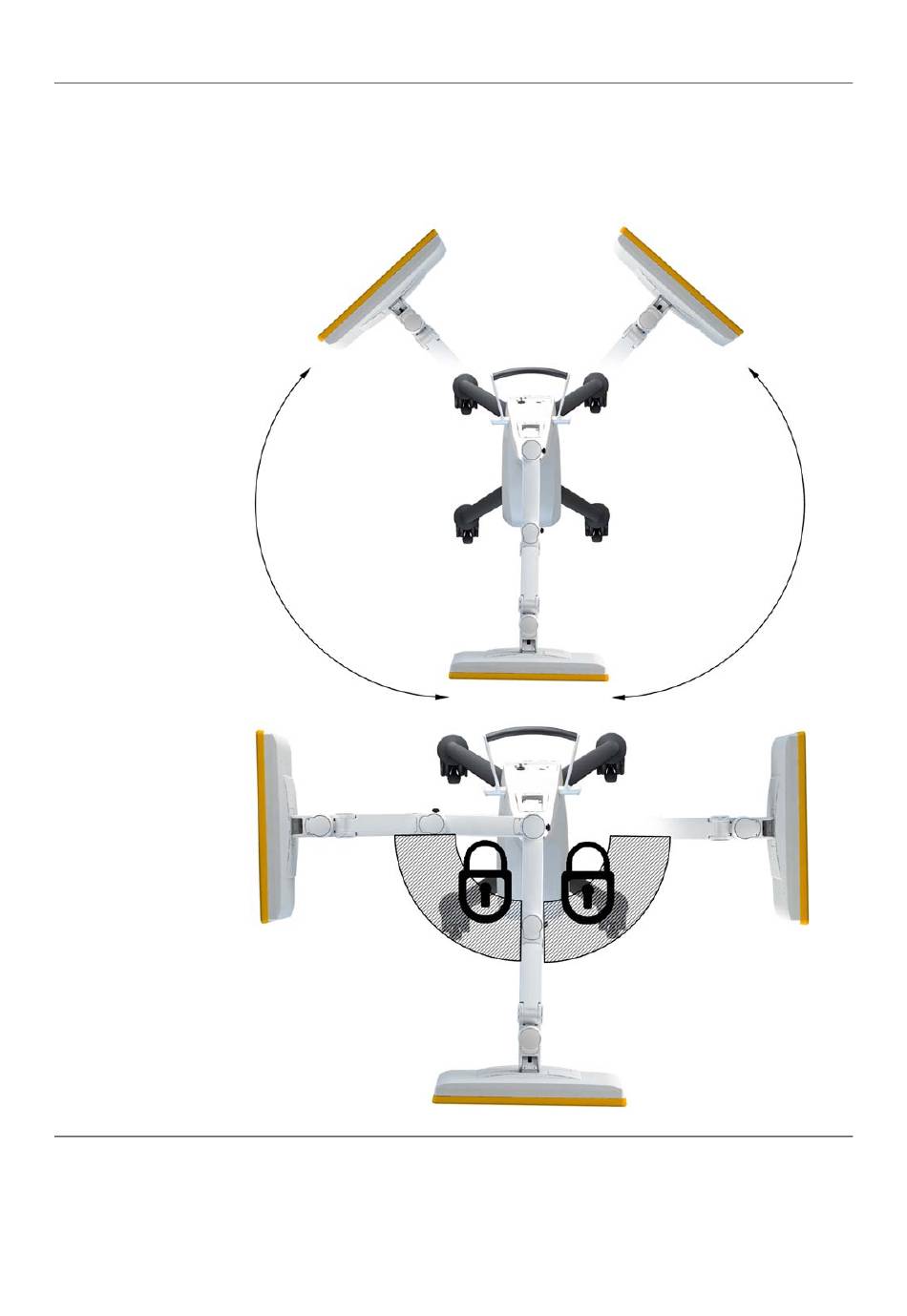

Cart Arms • The arm of the Curve Single Display and the lower arm of the Curve Dual Display can be
• The upper arm of the Curve Dual Display, has a restricted area of approximately 90° between
42
rotated 330° around the Monitor Cart center joint with a restricted area of 30° at the backside of
the device.
the two arms to prevent the monitors from colliding, and to prevent possible user injury. Be
aware that moving one arm may also move the other arm when the restricted area is reached.
165°
System User Guide Rev. 1.0 Curve Dual Display, Curve Single Display Ver. 1.0
90°
Figure 12
165°
90°
