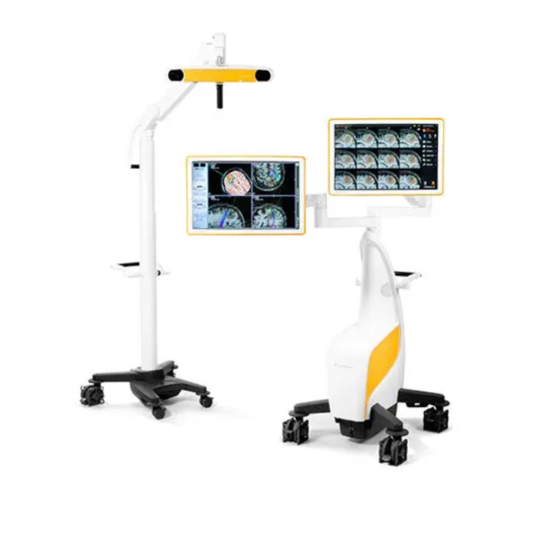

CURVE SYSTEM SETUP

...............................................................................................................................................................................................................................................
Hardware: Curve 1.1
a
Page 1-4
Note: This guide does not replace the user manuals.
OR SETUP
• Place Camera Cart 1.2 - 1.8 m (4 - 6 ft) away from
the operating field.
NOTE:
Do not position any part of the Camera a
s
and Monitor Carts s directly over the patient.

CONNECT CAMERA CART TO MONITOR CART

• Plug Brainlab's camera cable into the base of
Camera Cart and connect to the back panel of
Monitor Cart.
• Pull gently at the connector to confirm that it is
locked.
• Plug in mains power cable to wall outlet (not shown).

POWER ON CURVE SYSTEM

a
• Turn on mains power switch on the user panel of
Monitor Cart a.

POWER OFF CURVE SYSTEM

a
• Exit the software and wait until the power LED a
s
turns off.
d
• Turn off mains power switch s and wait until the
mains power LED d turns off.
NOTE:
Wait for the system to fully shut down before
turning off mains power switch.
NOTE:
After shutting down Curve, wait at least 60
seconds before turning back on again.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CURVE and is the answer not in the manual?

Questions and answers

Related Manuals for Brainlab CURVE

Summary of Contents for Brainlab CURVE

  • Page 1 Do not position any part of the Camera a and Monitor Carts s directly over the patient. CONNECT CAMERA CART TO MONITOR CART • Plug Brainlab’s camera cable into the base of Camera Cart and connect to the back panel of Monitor Cart.
  • Page 2 LOCK AND UNLOCK MONITOR POSITION • Lock each joint by tightening the locking knob a so that the monitor does not move when touched. • To unlock, loosen the locking knob a until the joint moves easily. ADJUST CAMERA MANUALLY •...
  • Page 3 DOCKING AND TRANSPORT ................................................Hardware: Curve 1.1 POSITION MONITOR CART: STEP 1 • Place protection covers over monitors and camera. • Loosen all locking knobs. • Rotate the lower arm to the position indicated until the park symbols align a.
  • Page 4 No part of this guide may be reproduced or commitment on the part of Brainlab. Europe, Africa, Asia, Australia: +49 89 99 15 68 44 translated without the express written permission USA and Canada: +1 800 597 5911 of Brainlab.
