Locking and Unlocking Brakes
6.2.3

Camera Cart Brakes

General The Camera Cart has brakes on each of the four wheels.
Information
The brake pedals on the large back wheels are accessible from two sides, identical to the Monitor
Cart wheels. The brake pedals on the small front wheels (images below) are only accessible from
one side.
How to Lock/
Unlock Brakes
Options
To lock, push the brake pedal
To unlock, push brake pedal
100
a
d

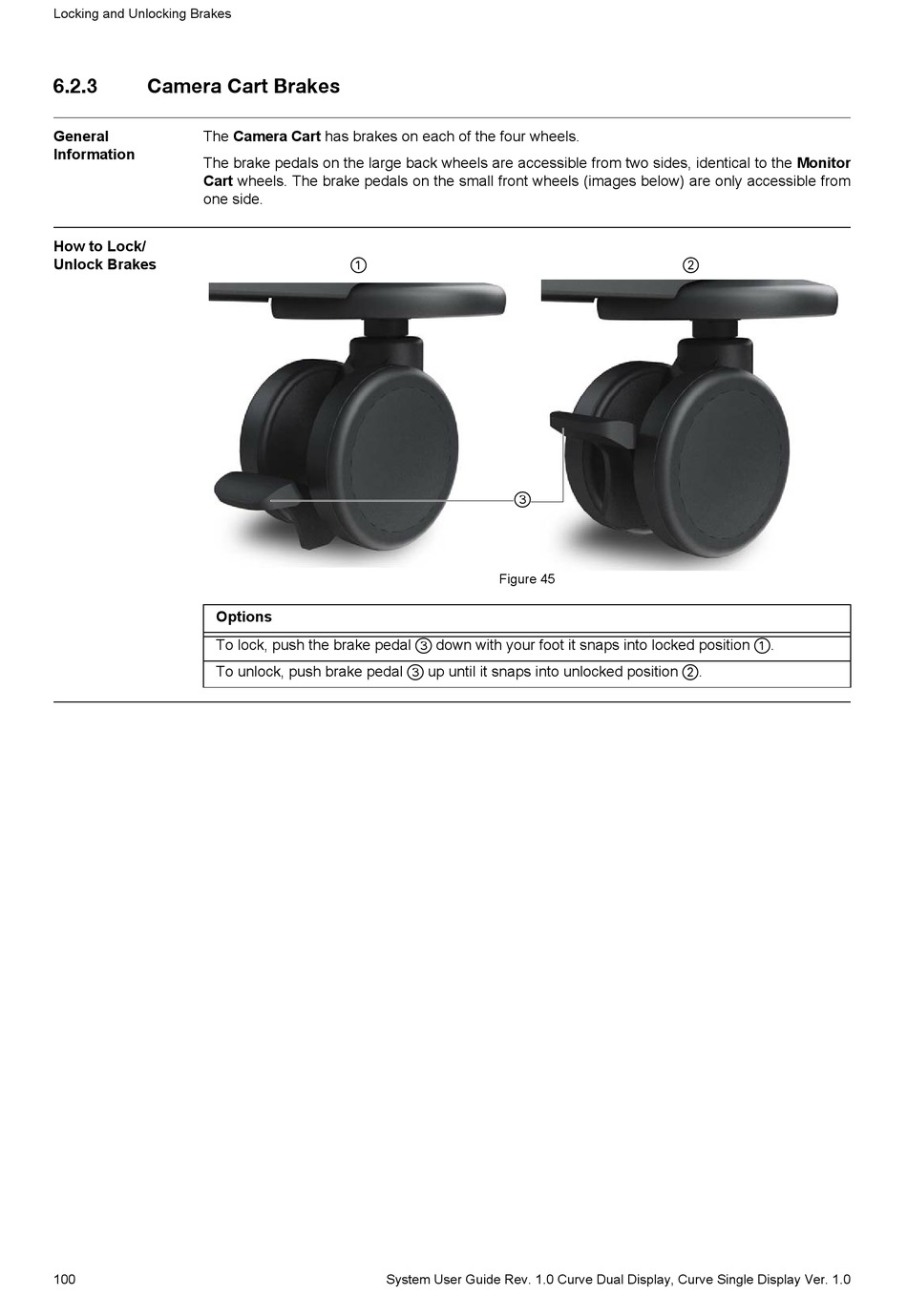

Figure 45
down with your foot it snaps into locked position
d
d up until it snaps into unlocked position
System User Guide Rev. 1.0 Curve Dual Display, Curve Single Display Ver. 1.0
