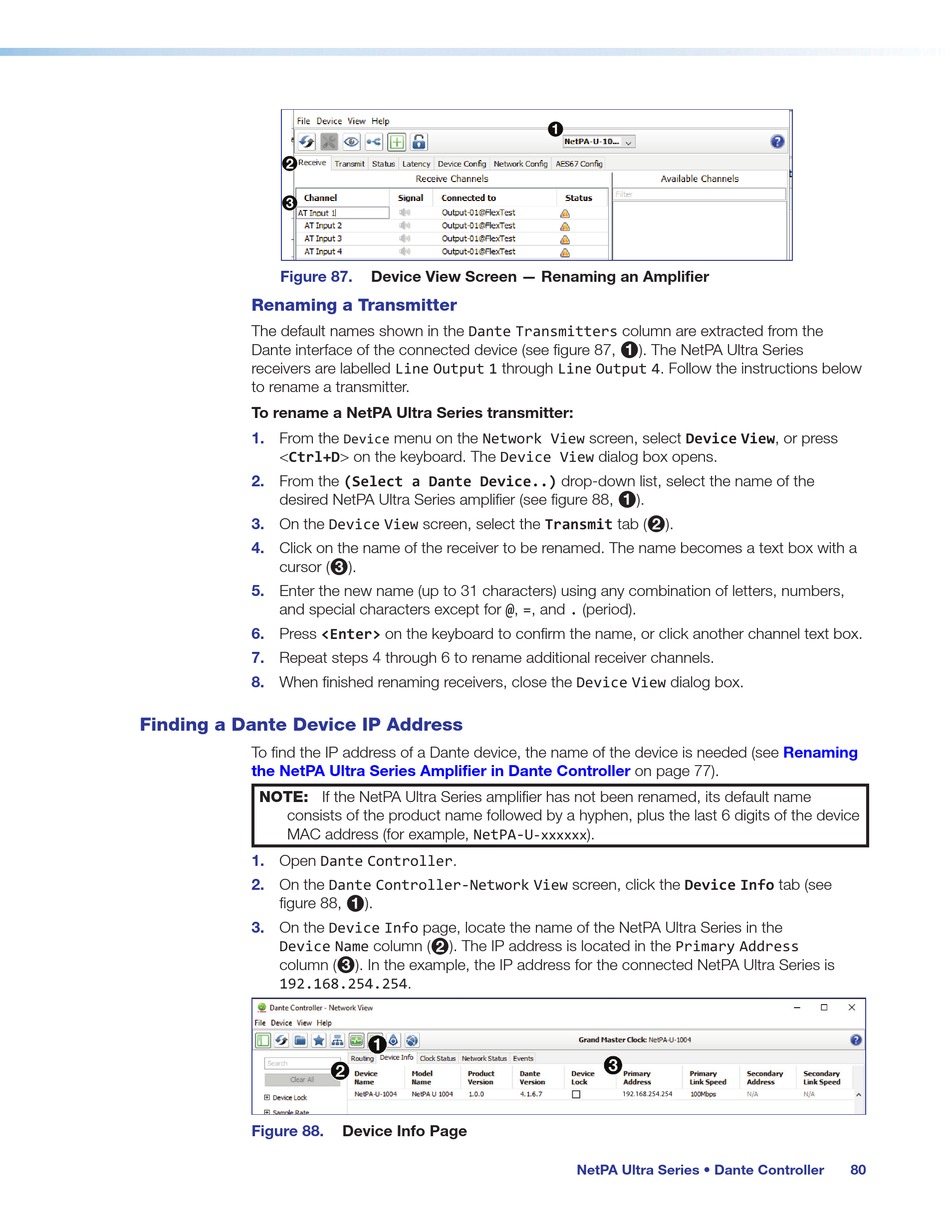

Figure 87.
Renaming a Transmitter
The default names shown in the Dante Transmitters column are extracted from the
Dante interface of the connected device (see figure 87,
receivers are labelled Line Output 1 through Line Output 4. Follow the instructions below
to rename a transmitter.
To rename a NetPA Ultra Series transmitter:
1. From the
<Ctrl+D> on the keyboard. The Device View dialog box opens.
2. From the (Select a Dante Device..) drop-down list, select the name of the
desired NetPA Ultra Series amplifier (see figure 88,
On the Device View screen, select the Transmit tab (
3.
4. Click on the name of the receiver to be renamed. The name becomes a text box with a
cursor (
5. Enter the new name (up to 31 characters) using any combination of letters, numbers,
and special characters except for @, =, and . (period).
6. Press <Enter> on the keyboard to confirm the name, or click another channel text box.
7. Repeat steps 4 through 6 to rename additional receiver channels.
8. When finished renaming receivers, close the Device View dialog box.

Finding a Dante Device IP Address

To find the IP address of a Dante device, the name of the device is needed (see
the NetPA Ultra Series Amplifier in Dante Controller
NOTE: If the NetPA Ultra Series amplifier has not been renamed, its default name
consists of the product name followed by a hyphen, plus the last 6 digits of the device
MAC address (for example, NetPA-U
Open Dante Controller.
1.
On the Dante Controller-Network View screen, click the Device Info tab (see
2.
figure 88,
On the Device Info page, locate the name of the NetPA Ultra Series in the
3.
Device Name column (
column (
192.168.254.254.
Figure 88.
Device View Screen — Renaming an Amplifier
menu on the Network View screen, select Device View, or press
Device
).
3
).
1
). The IP address is located in the Primary Address
2
). In the example, the IP address for the connected NetPA Ultra Series is
3
Device Info Page
1
). The NetPA Ultra Series
1
).
1
).
2
on page 77).
).
-xxxxxx
NetPA Ultra Series • Dante Controller
