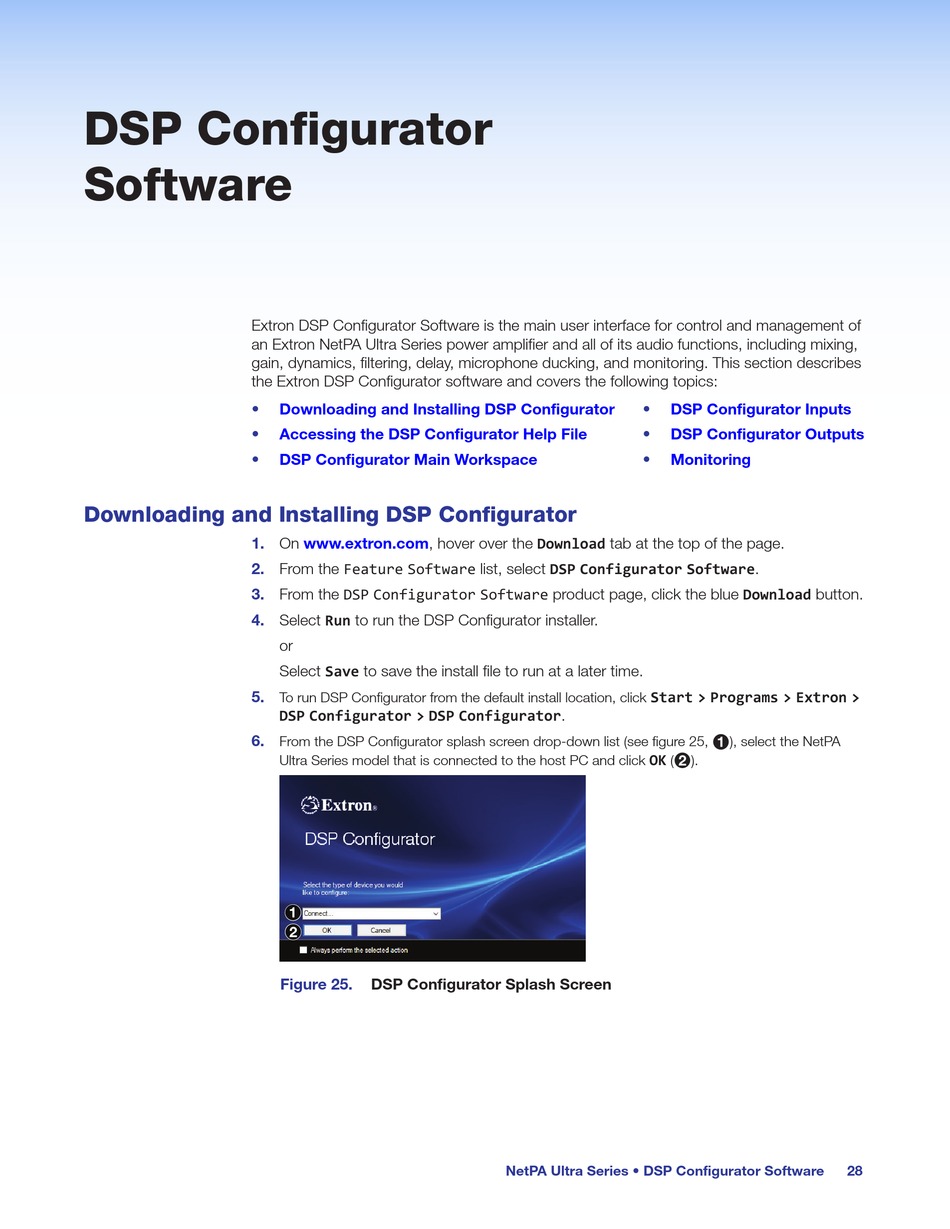

DSP Configurator
Software
Extron DSP Configurator Software is the main user interface for control and management of
an Extron NetPA Ultra Series power amplifier and all of its audio functions, including mixing,
gain, dynamics, filtering, delay, microphone ducking, and monitoring. This section describes
the Extron DSP Configurator software and covers the following topics:
•
•
•
Downloading and Installing DSP Configurator
1.
2.
3.
4.
5.
6.
Downloading and Installing DSP Configurator
Accessing the DSP Configurator Help File
DSP Configurator Main Workspace
On www.extron.com, hover over the Download tab at the top of the page.
From the Feature Software list, select DSP Configurator Software.
From the DSP Configurator Software product page, click the blue Download button.
Select Run to run the DSP Configurator installer.
or
Select Save to save the install file to run at a later time.
To run DSP Configurator from the default install location, click
DSP Configurator > DSP Configurator.
From the DSP Configurator splash screen drop-down list (see figure 25,
Ultra Series model that is connected to the host PC and click
1
2
Figure 25. DSP Configurator Splash Screen
DSP Configurator Inputs
•
DSP Configurator Outputs
•
Monitoring
•
Start > Programs > Extron >
OK
(
2
NetPA Ultra Series • DSP Configurator Software
), select the NetPA
