Balanced Mono
Tip
Ring
Slee ve
Unbalanced Mono
Tip
Jumper
Sleeve

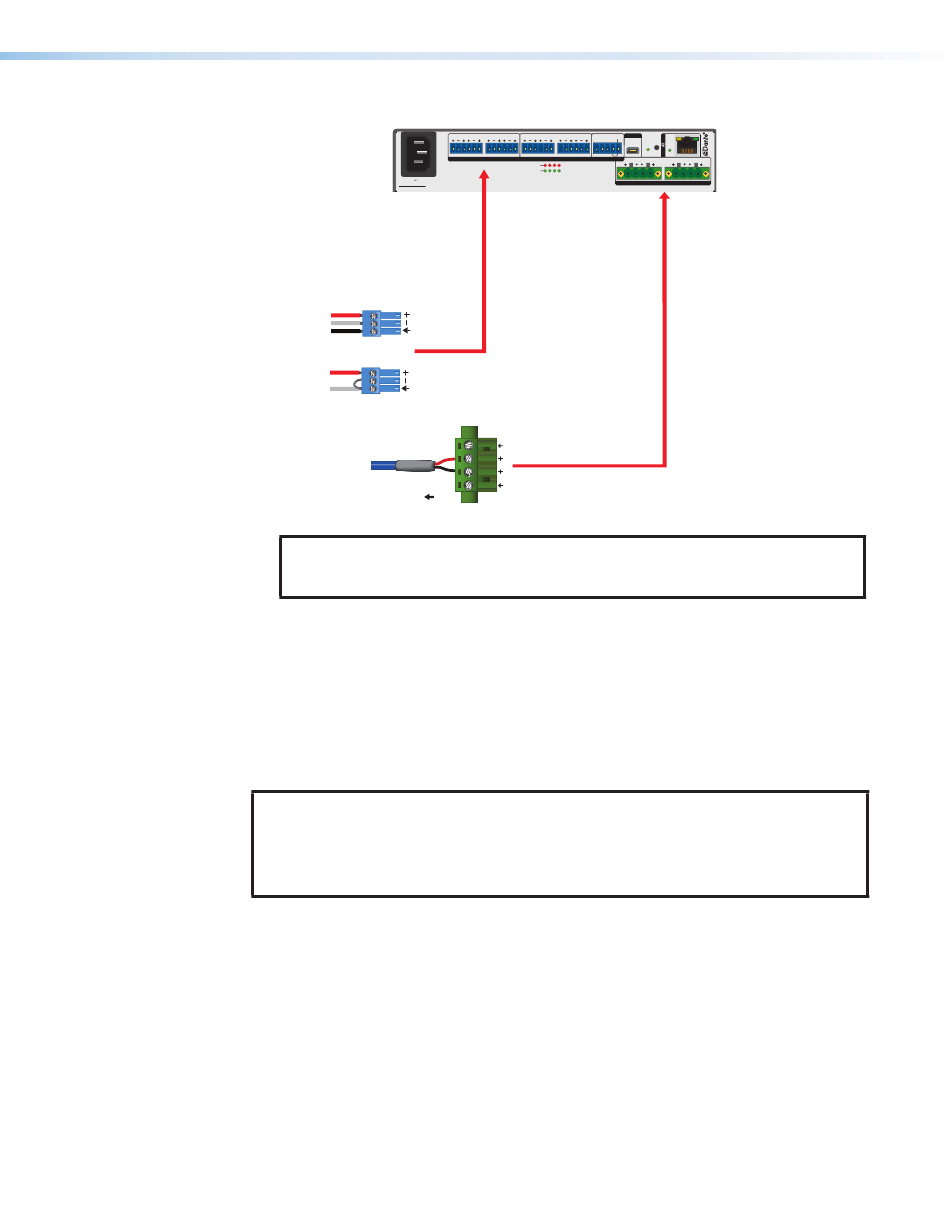

Figure 24.
NOTE: During bridged mono output, the + output from the odd channel becomes
the positive terminal and the + output from the even channel becomes the
negative terminal.
5. If needed, wire the inputs as shown in figure 24. If only using Dante inputs, skip this
step.
6. Connect the IEC power cord and power up the amplifier.
7. Verify the configuration by testing the system.

Monitoring

There are two methods to monitor the amplifier, querying and unsolicited responses. Either
method or a combination of the two can be employed.
NOTES:
All status flags reset upon power cycle. Status flags can also be reset via SIS (see
•
Resets
• See
page 101 for detailed descriptions of each status.
Querying
• In the SIS section, see
• Each status command is capable of being queried.
• Query commands can be used when polling with a control system.
• All statuses can be queried, even when unsolicited responses are enabled.
NetPA U 1004
1 2 3 4
MIC/LINE INPUTS
LIMITER/PROTECT
100-240V 1.0 A, 50-60Hz
NetPA U 1004
ATTENUATION
Input
3.5 mm
Captive Screw
5 mm
Captive Screw
1
2
To Speaker Load
Bridging the Output
on page 94).
Status
on page 95 of the SIS section and
Status on page 95 for the commands to query.
CONFIG
1 2 3 4
STANDBY
Tx Rx G G
R
LINK
RS-232
LINE OUTPUTS REMOTE
CLASS 2 WIRING
1 2 3 4
SIGNAL
1 2 3 4
8Ω/4Ω OUTPUTS
Amplified
Output
Troubleshooting
