AC Output

This menu adjusts the output voltage produced while the inverter is inverting (running on battery power).
This setting does not affect the output when using another AC input source. It does not affect the
acceptance parameters for an AC input source. (See pages 79 and 80.) The range of adjustability will vary
with inverter model. See the inverter Operator's Manual for the specific range of adjustability.
To access the Output Voltage menu:
1. Use the control wheel to highlight the AC Output menu.
Press the button in the center of the control wheel to accept the selection.
2. Use the control wheel to increase or decrease the set point to the correct voltage.
Press the button in the center of the control wheel to accept the selection.
3. After setting the parameters for each set point, press the TOP navigation key to return to the
Main Menu screen.
Set Points:
 Output Voltage: Adjusts the inverter's output voltage while in inverting mode.
900-0117-01-00 Rev A

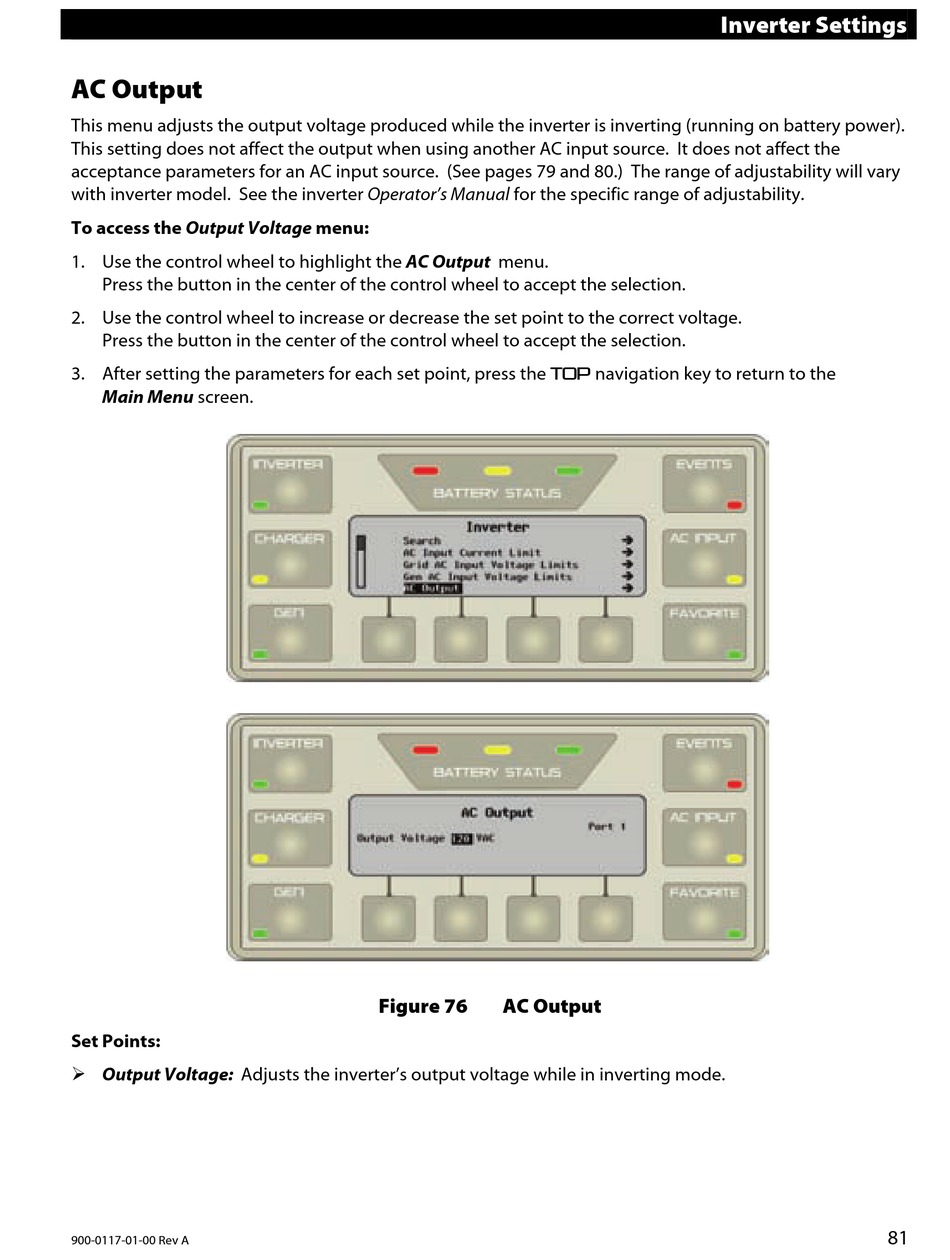

Figure 76 AC Output
Inverter Settings
81
