Figure 19 Graph Soft Key (With Flexnet Dc); Figure 20 Battery Voltage Graph (With Flexnet Dc) - Alpha Group OutBack Power MATE3 Owner's Manual

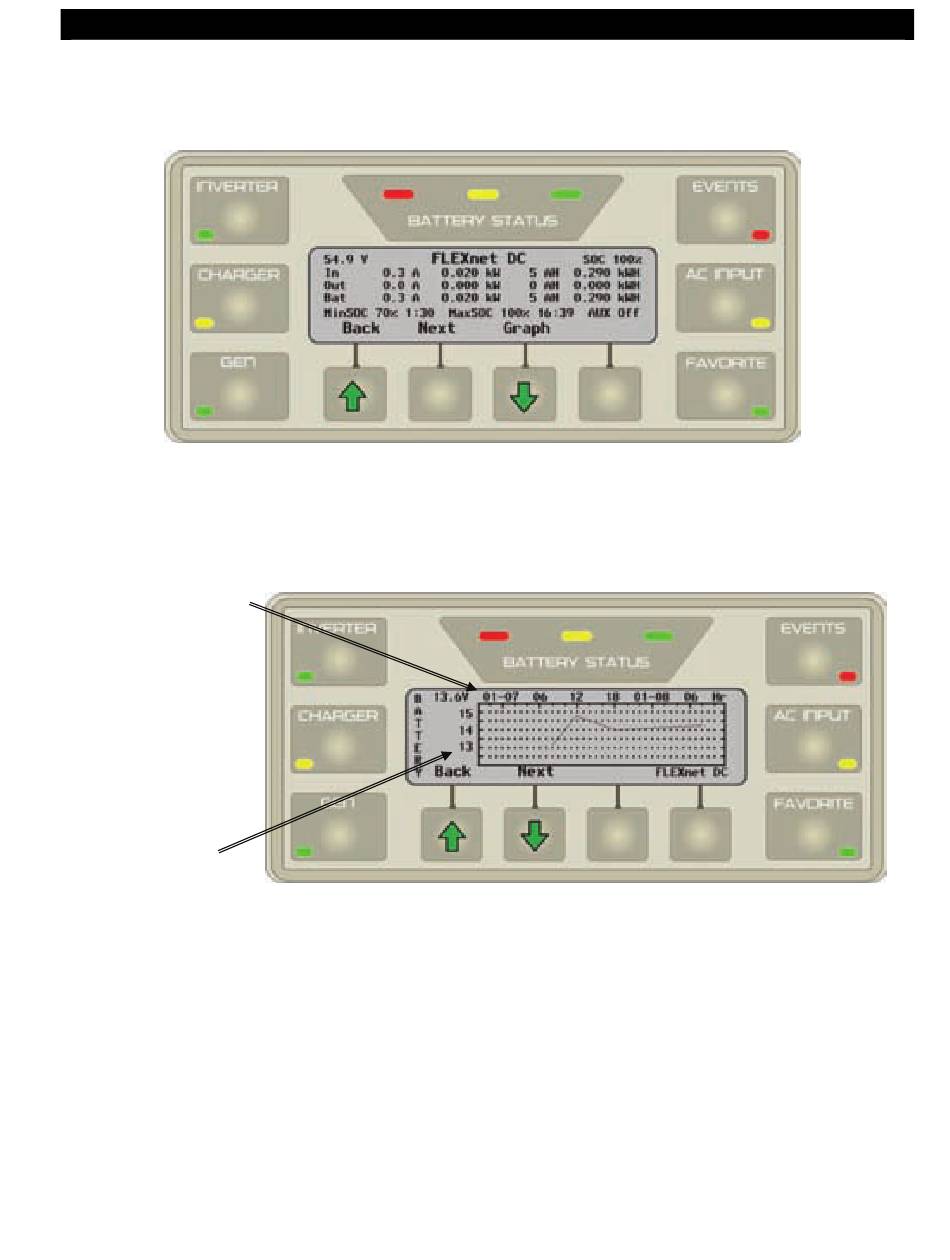

From the FLEXnet DC screen, the <Graph> soft key brings up the following screens which plot various
type of data over time. The first screen shows changes in battery voltage over time. This is the same
graph shown on pages 30, 42, and 45.
This axis shows date
and time in 6-hour
increments.
This axis shows
battery voltage.
Figure 20
900-0117-01-00 Rev A
Figure 19 Graph Soft Key (with FLEXnet DC)
Battery Voltage Graph (with FLEXnet DC)
