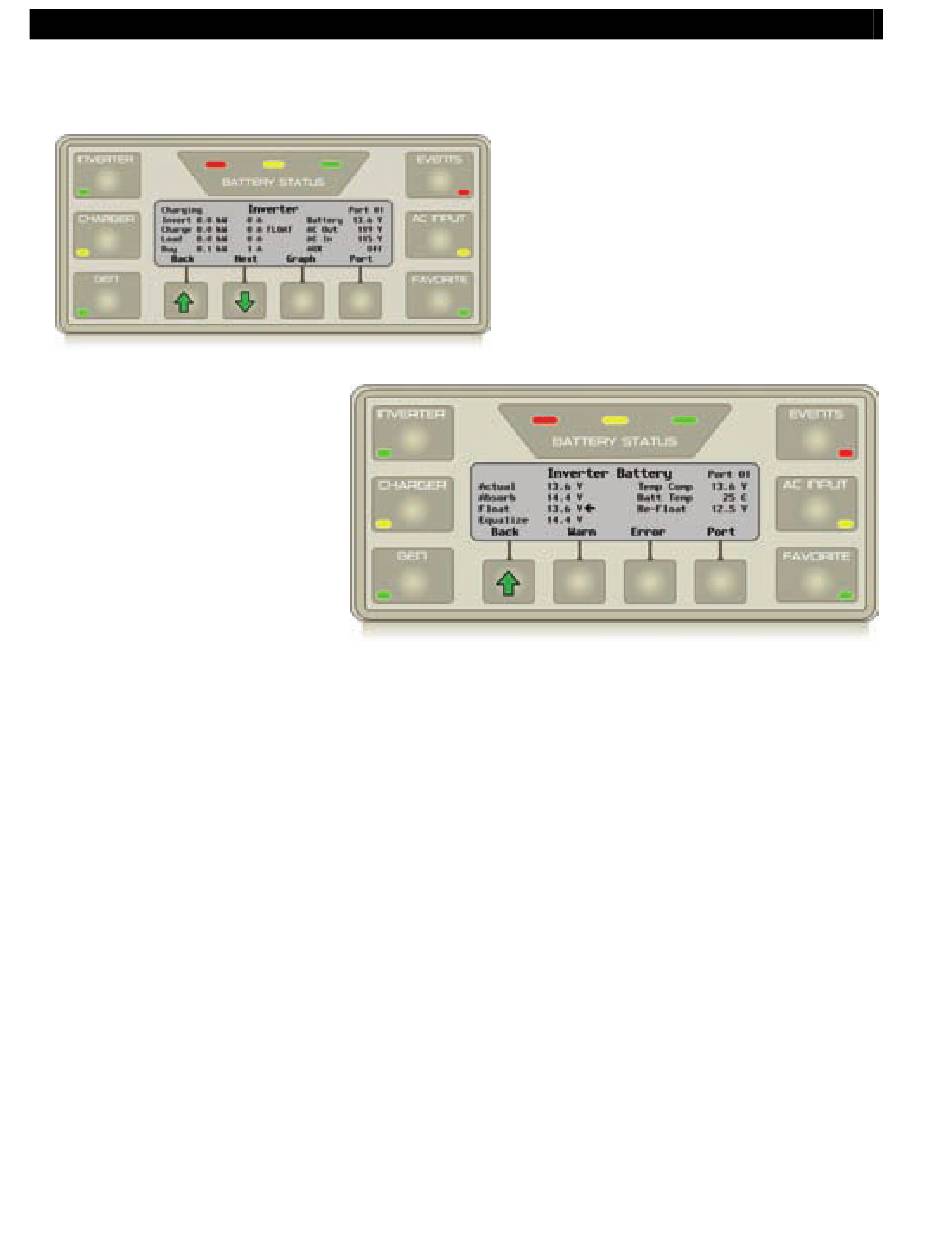

Figure 24 Inverter Battery Screen - Alpha Group OutBack Power MATE3 Owner's Manual

From the Inverter screen, the <Next> soft key brings up the Inverter Battery screen.
Inverter Screen
Soft Keys:
<Warn> brings up a series of screens
with a list of non-critical inverter faults
and other information. These screens
are shown beginning on page 38.
<Error> brings up a screen with a list
of critical inverter faults. These screens
are shown beginning on page 39.
<Back> returns to the previous screen.
<Port> cycles through each device
connected to the network.
Screen Items:
Actual displays the uncompensated battery voltage.
Absorb displays the Absorption voltage setting which was programmed into the inverter's
charger. During the bulk and absorption stages, this is the target voltage used by the charger.
Float displays the Float voltage setting which was programmed into the inverter's charger.
During the float stage, this is the target voltage used by the charger.
Equalize displays the Equalization voltage setting which was programmed into the inverter's
charger. During the equalization charging cycle, this is the target voltage used by the charger.
Temp Comp displays the corrected battery voltage after temperature readings are taken into
account from the Remote Temperature Sensor (RTS). If no RTS is present, Temp Comp and Actual
will read the same.
Batt Temp displays the battery temperature in degrees Celsius, as measured by the RTS. This
reading is only valid for port 1 on the HUB. If other ports are selected, or if no RTS is present, the
characters ### will be displayed.
Re-Float displays the Re-Float setting which was programmed into the inverter's charger. This is
the voltage used for the inverter to return from silent mode to the float stage.
38
Note: If an arrow appears next to the items Absorb, Float, or
Equalize, it indicates the charger is in that stage. The arrow will
not appear if the charger is in the bulk stage or silent mode.
Figure 24 Inverter Battery Screen
