DataLog Screen
The <Datalog> soft key shows accumulated daily amp-hour and watt-hour statistics, as well as maximum
current, wattage, and maximum and minimum voltage figures. These maintain a continuous daily log, up
to 128 days, which can be recalled. One day can be displayed at a time.
Screen Items:
The item in the upper left corner shows the
date of the selected Datalog screen. (The
current Datalog screen reads "Today.") To the
right, this line also displays the kilowatt-hours
and amp-hours accumulated that day.
Max Output
and wattage recorded that day.
Absorb
The amount of time the absorption
timer ran that day.
Float
The amount of time the Float timer ran
that day.
High VOC
displays the highest open-circuit
voltage (VOC) recorded that day.
Min Batt
displays the lowest battery voltage
recorded that day.
Max Batt
displays the highest battery voltage
recorded that day.
44
displays the maximum current

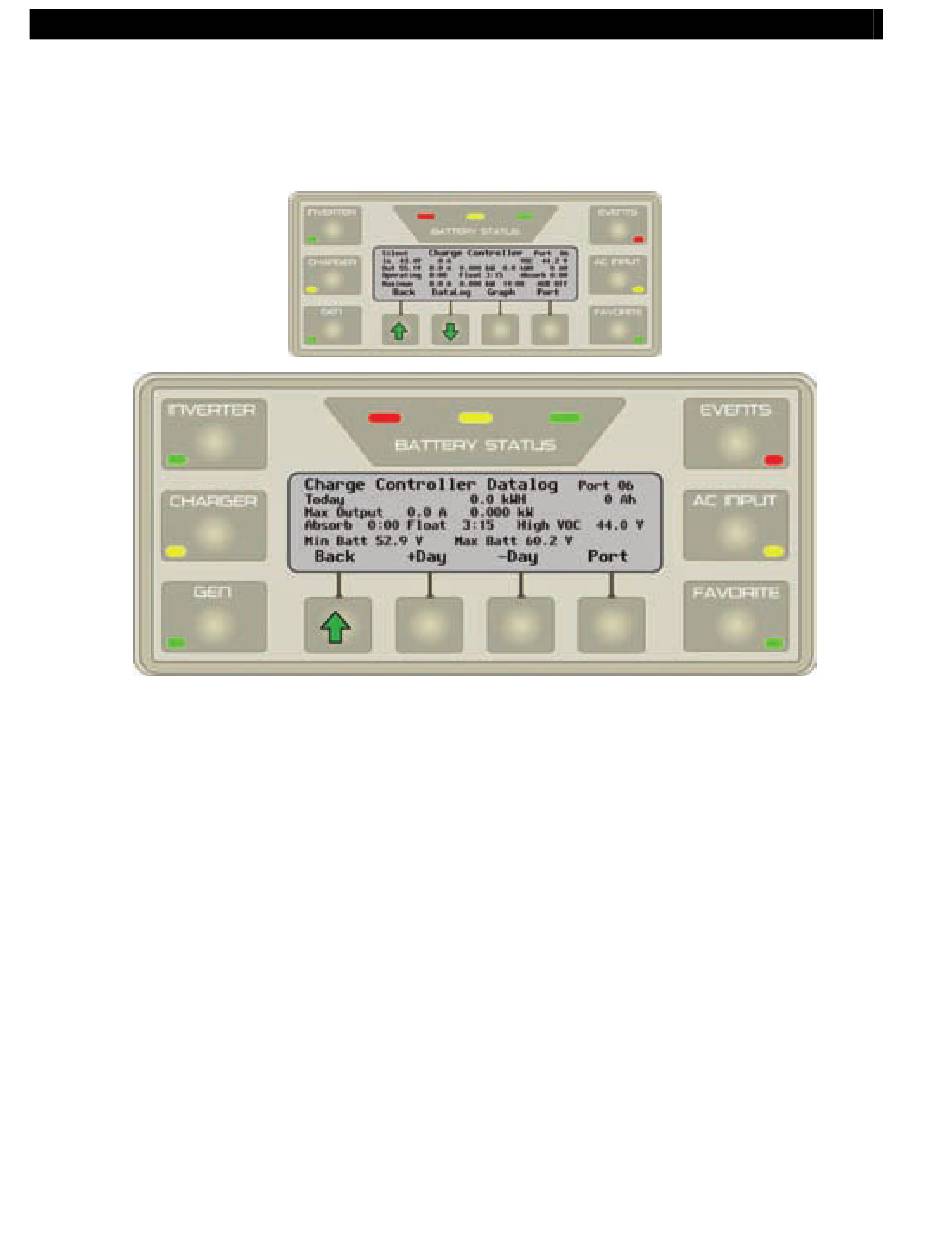

Figure 33
Soft Keys:
<+Day> advances the display forward by a
single day. If the display reads "Today", it
does nothing.
<–Day> advances the display backward by a
single day and will display the selected date.
<Back> returns to the previous screen.
<Port> cycles through each device
connected to the network.
