To program Grid Use Time:
1. Access the MATE Menu as shown in Figure 113.
2. Use the control wheel to select the Grid Use Time menu option.
Press the button in the center of the control wheel to select the menu.
3. Use the control wheel to increase or decrease the value for each set point.
Press the button in the center of the control wheel to enter the value.
When the value is entered, the highlighting will move forward to the next set point.
4. After setting the parameters for each set point, press the TOP navigation key to return to the
Main Menu screen.
Set Points:
 Enabled: N = No, Y = Yes
 Weekday: Use 00:00 – 23:59 (three occurrences)
 Weekday: Drop 00:00 – 23:59 (three occurrences)
 Weekend: Use 00:00 – 23:59
 Weekend: Drop 00:00 – 23:59
130

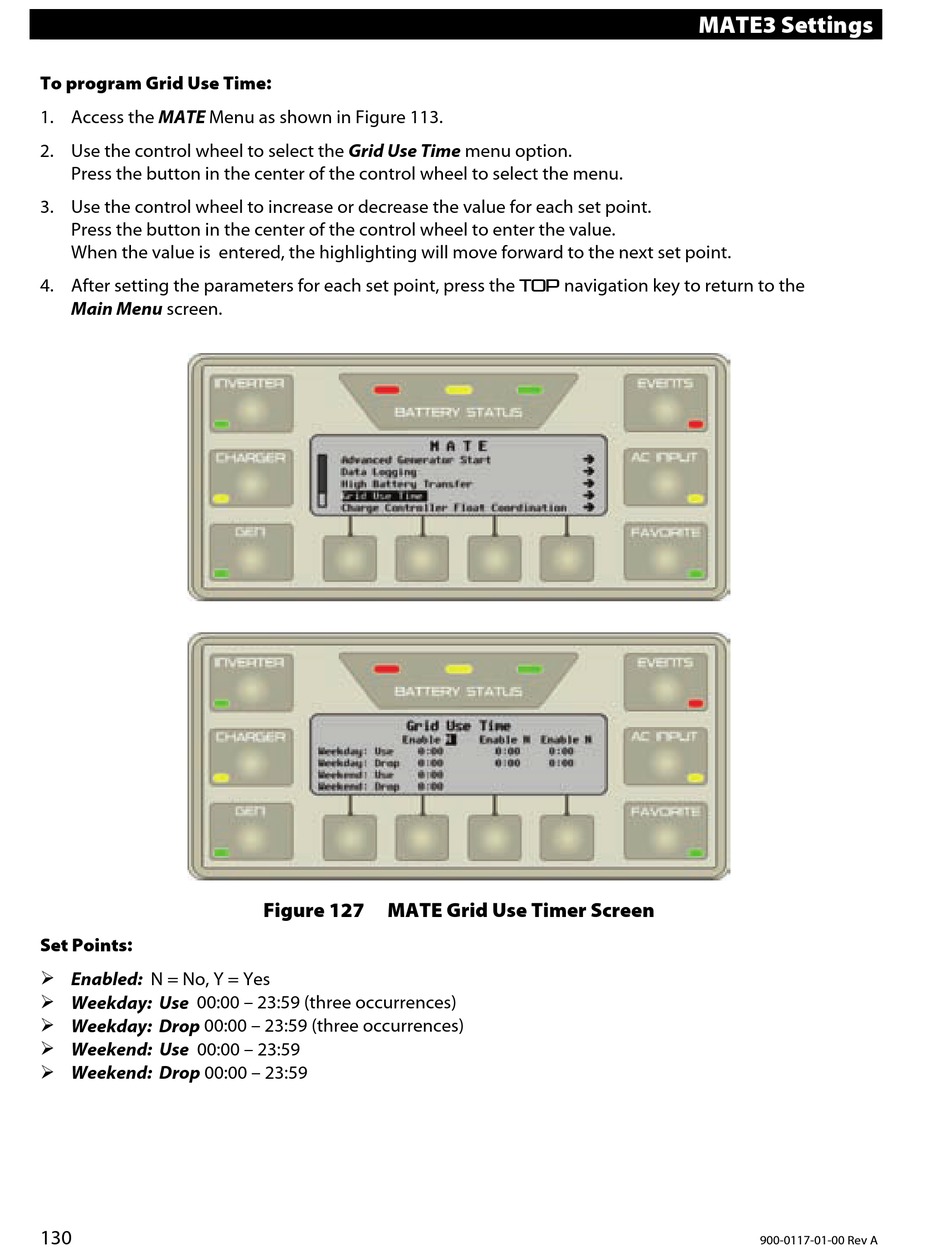

Figure 127 MATE Grid Use Timer Screen
MATE3 Settings
900-0117-01-00 Rev A
