Graph Screens

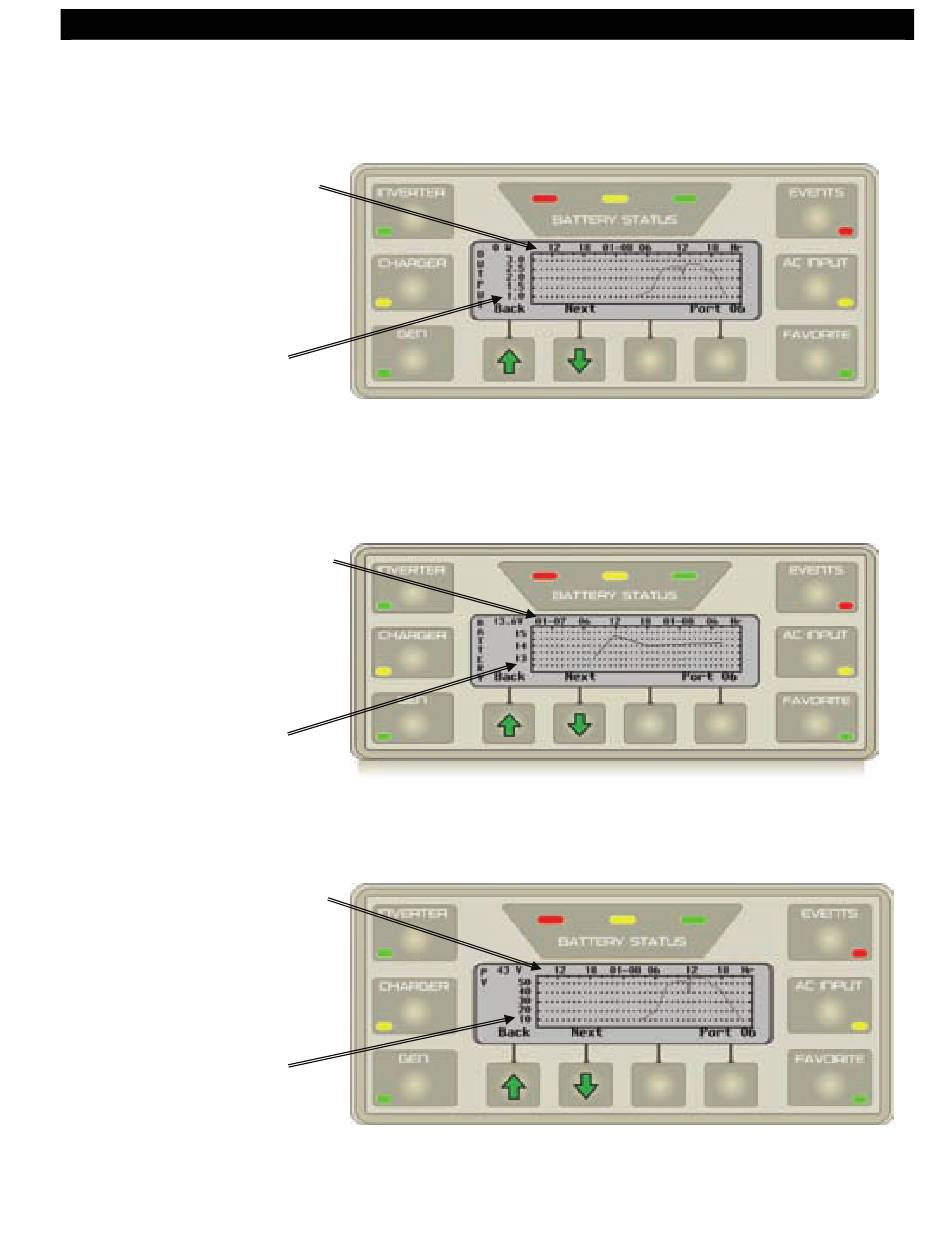

The <Graph> soft key brings up the following screens which plot various type of data over time. The first
screen shows changes in PV wattage over time.
This axis shows date
and time in 6-hour
increments.
This axis shows
PV wattage.
The <Next> soft key brings up a screen showing changes in battery voltage over time. This is the same
graph shown on pages 30, 35, and 42.
This axis shows date
and time in 6-hour
increments.
This axis shows
battery voltage.
The <Next> soft key brings up a screen showing changes in PV voltage over time.
This axis shows date
and time in 6-hour
increments.
This axis shows
PV voltage.
Continuing to press the <Next> soft key will proceed through the same graphs again from the beginning.
900-0117-01-00 Rev A
Figure 34 Output Graph
Figure 35 Battery Graph
Figure 36 PV Graph
Operation
45
