AGS Setup
To access the AGS
Setup
1. Access the MATE Menu as shown Figure 113.
2. Use the control wheel to select the Advanced Generator Start menu option.
Press the button in the center of the control wheel to accept the selection.
3. Use the control wheel to select the Setup menu item.
Press the button in the center of the control wheel to accept the selection.
4. Use the control wheel to increase or decrease each set point value, as required.
Press the button in the center of the control wheel to enter the value.
When the value is entered, the highlighting will move forward to the next set point.
5. After setting the parameters for each set point, press the TOP navigation key to return to the
Main Menu screen.
Set Points:
 AGS Enabled either enables (Y) or disables (N) the AGS mode.
 Port identifies the HUB port (1 – 10) for the device that is going to control the generator.
~ If there is only one inverter in the system and no OutBack HUB is used, it is necessary to set the
AGS Port to zero (0).
~ If a HUB is used, adjust the port number to the port that is assigned to the device that is going to
control the generator.
900-0117-01-00 Rev A
Screen:

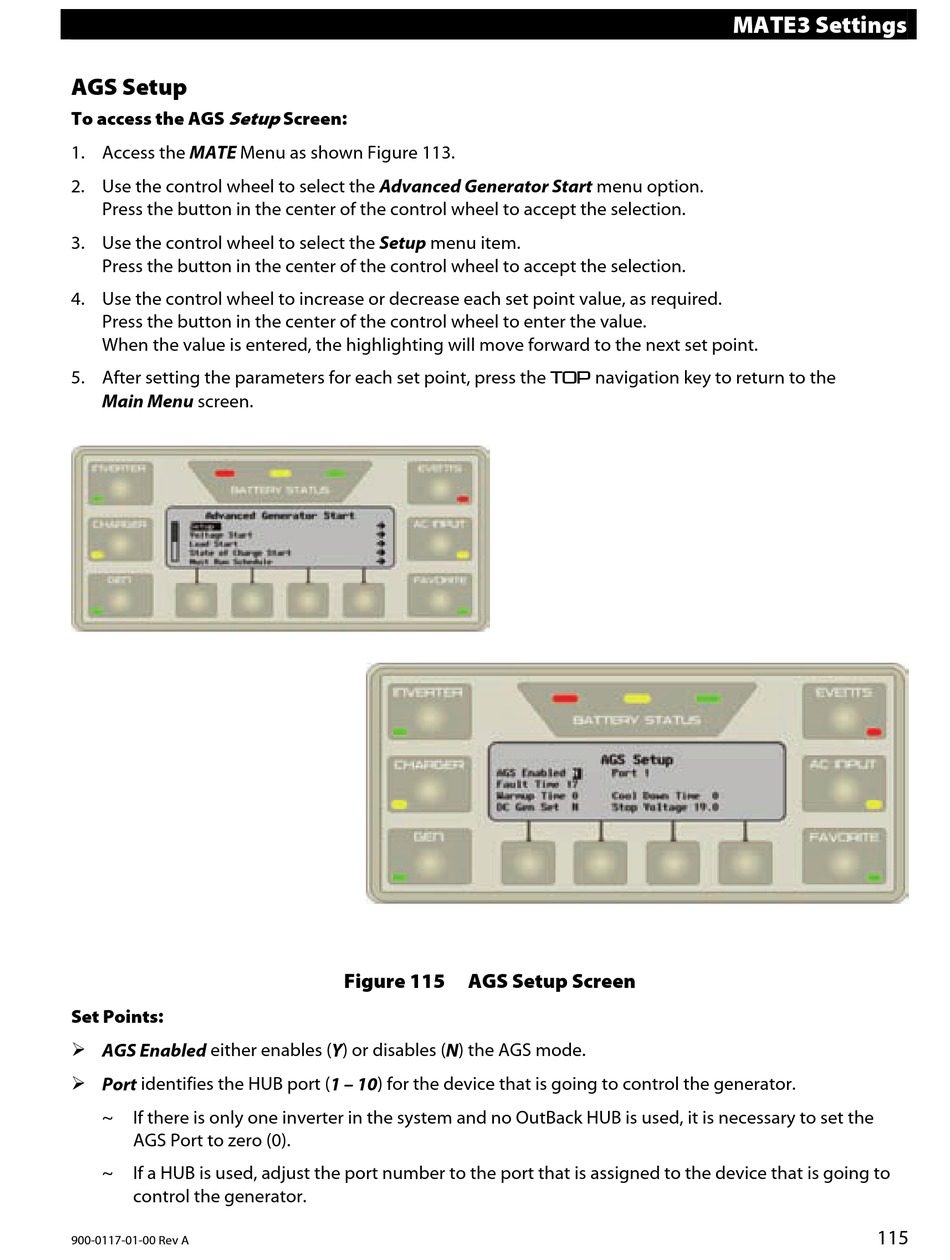

Figure 115
AGS Setup Screen
MATE3 Settings
115
