Main Menu

All programming menus are accessed from the Main Menu Screen. Menus include the following:
 Settings (System, Inverter, Charge Controller, Battery Monitor, MATE3)
 Configuration Wizard (TBD)
 Data Logs (TBD)
 Event Logs (TBD)
 Software Updates
Each menu has its own set of Menu Options. Each Menu Option has its own set of Menu Items.
For a complete menu map, see page 143.
Main Menu Screen
Menu Option
Menu Item
Indicates more menus are
available by scrolling down.
900-0117-01-00 Rev A

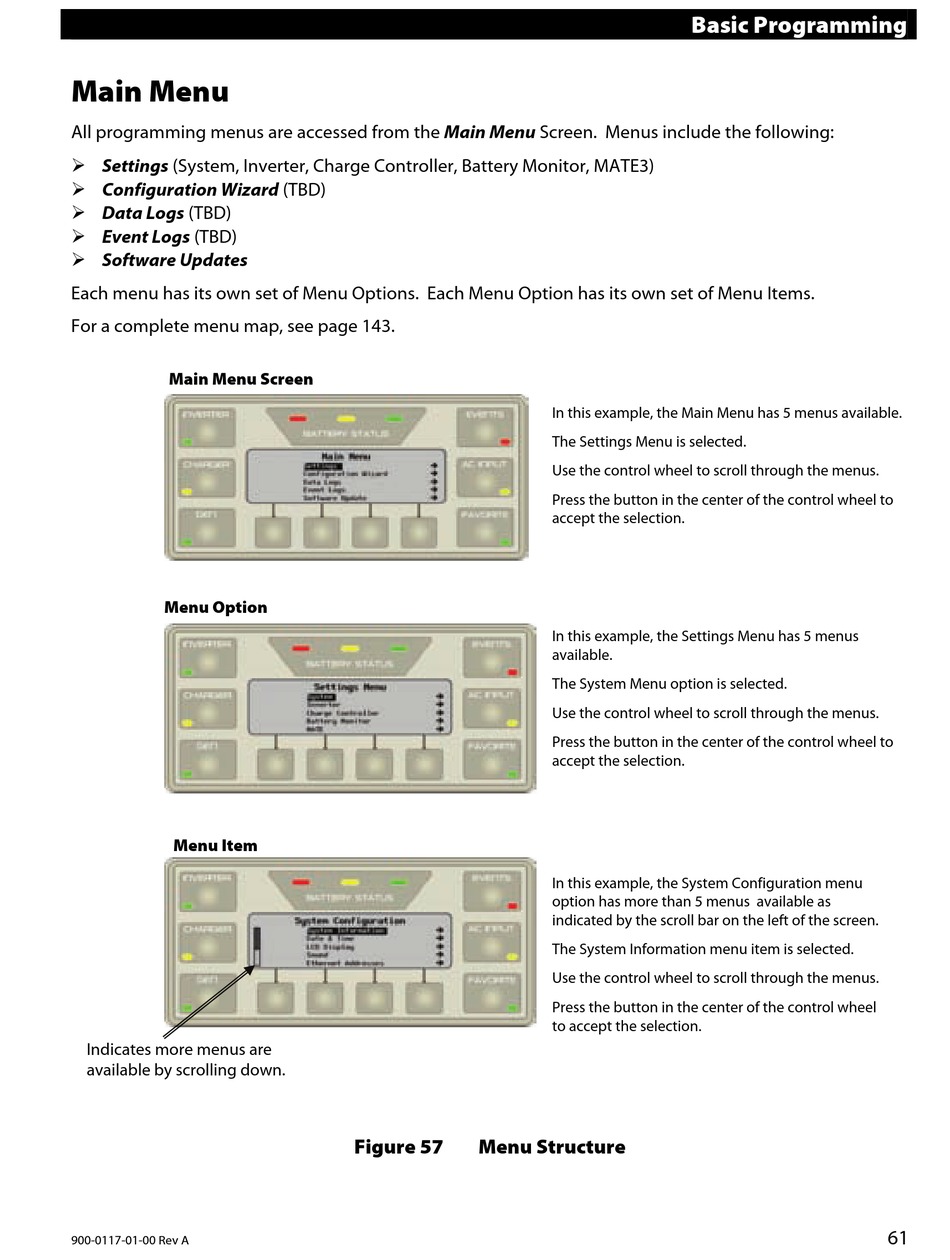

Figure 57 Menu Structure
Basic Programming
In this example, the Main Menu has 5 menus available.
The Settings Menu is selected.
Use the control wheel to scroll through the menus.
Press the button in the center of the control wheel to
accept the selection.
In this example, the Settings Menu has 5 menus
available.
The System Menu option is selected.
Use the control wheel to scroll through the menus.
Press the button in the center of the control wheel to
accept the selection.
In this example, the System Configuration menu
option has more than 5 menus available as
indicated by the scroll bar on the left of the screen.
The System Information menu item is selected.
Use the control wheel to scroll through the menus.
Press the button in the center of the control wheel
to accept the selection.
