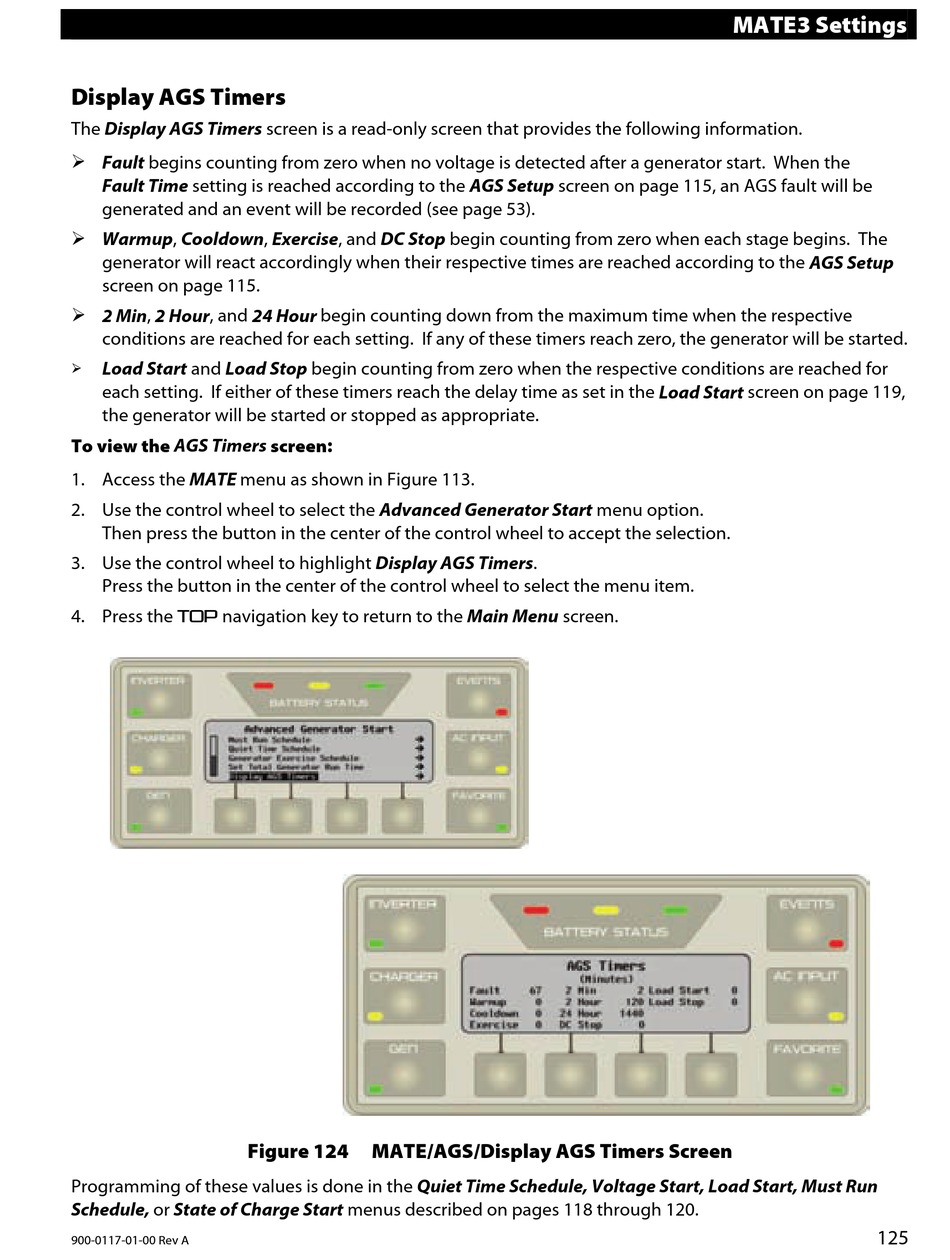

Display AGS Timers
The Display AGS Timers screen is a read-only screen that provides the following information.
 Fault begins counting from zero when no voltage is detected after a generator start. When the
Fault Time setting is reached according to the AGS Setup screen on page 115, an AGS fault will be
generated and an event will be recorded (see page 53).
 Warmup, Cooldown, Exercise, and DC Stop begin counting from zero when each stage begins. The
generator will react accordingly when their respective times are reached according to the AGS Setup
screen on page 115.
 2 Min, 2 Hour, and 24 Hour begin counting down from the maximum time when the respective
conditions are reached for each setting. If any of these timers reach zero, the generator will be started.
 Load Start and Load Stop begin counting from zero when the respective conditions are reached for
each setting. If either of these timers reach the delay time as set in the Load Start screen on page 119,
the generator will be started or stopped as appropriate.
To view the AGS Timers screen:
1. Access the MATE menu as shown in Figure 113.
2. Use the control wheel to select the Advanced Generator Start menu option.
Then press the button in the center of the control wheel to accept the selection.
3. Use the control wheel to highlight Display AGS Timers.
Press the button in the center of the control wheel to select the menu item.
4. Press the TOP navigation key to return to the Main Menu screen.
Figure 124
Programming of these values is done in the Quiet Time Schedule, Voltage Start, Load Start, Must Run
Schedule, or State of Charge Start menus described on pages 118 through 120.
900-0117-01-00 Rev A
MATE/AGS/Display AGS Timers Screen
