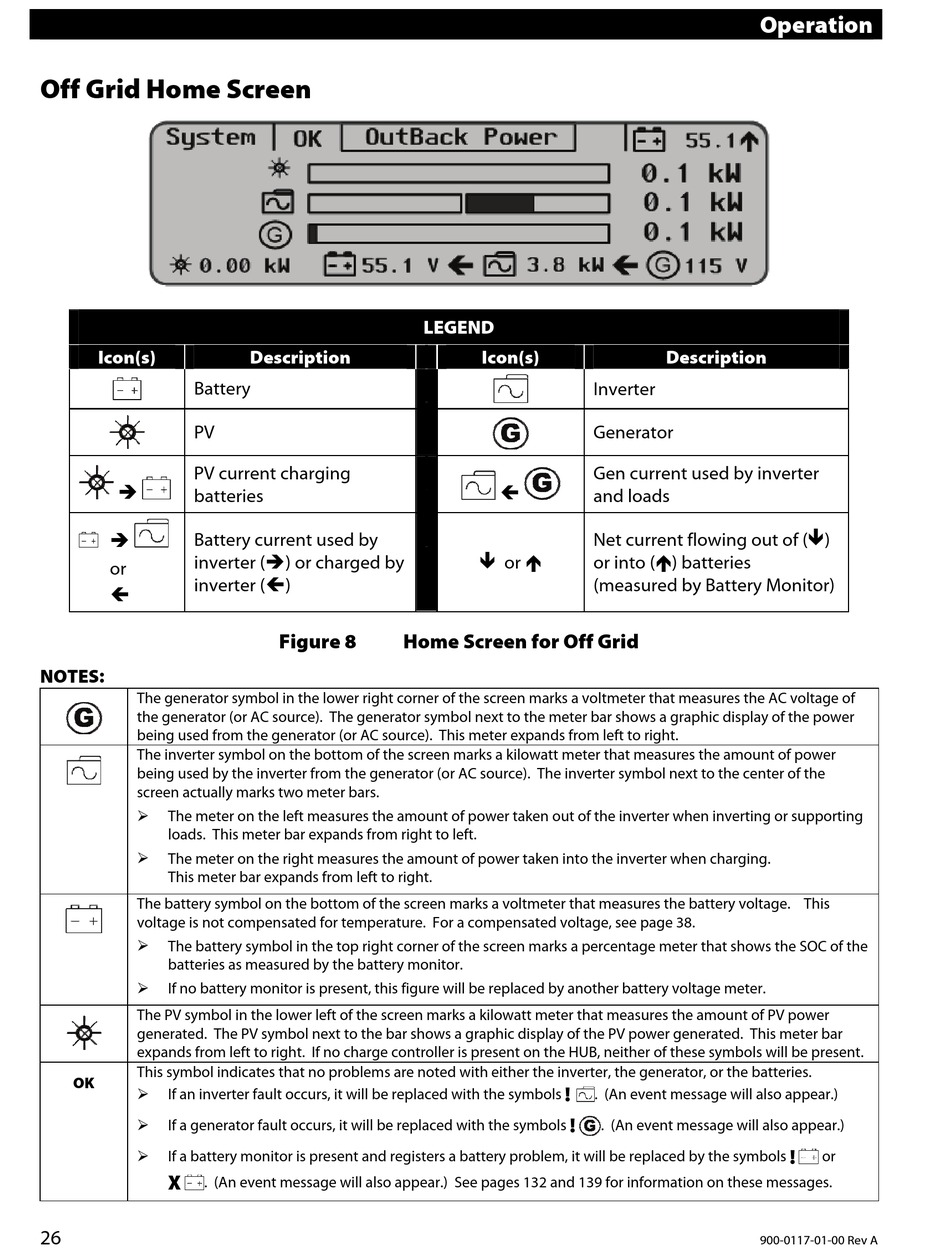

Off Grid Home Screen

Icon(s)
Battery
PV
PV current charging

batteries

Battery current used by
inverter () or charged by
or
inverter ()

NOTES:
The generator symbol in the lower right corner of the screen marks a voltmeter that measures the AC voltage of
the generator (or AC source). The generator symbol next to the meter bar shows a graphic display of the power
being used from the generator (or AC source). This meter expands from left to right.
The inverter symbol on the bottom of the screen marks a kilowatt meter that measures the amount of power
being used by the inverter from the generator (or AC source). The inverter symbol next to the center of the
screen actually marks two meter bars.

The meter on the left measures the amount of power taken out of the inverter when inverting or supporting
loads. This meter bar expands from right to left.

The meter on the right measures the amount of power taken into the inverter when charging.
This meter bar expands from left to right.
The battery symbol on the bottom of the screen marks a voltmeter that measures the battery voltage. This
voltage is not compensated for temperature. For a compensated voltage, see page 38.

The battery symbol in the top right corner of the screen marks a percentage meter that shows the SOC of the
batteries as measured by the battery monitor.

If no battery monitor is present, this figure will be replaced by another battery voltage meter.
The PV symbol in the lower left of the screen marks a kilowatt meter that measures the amount of PV power
generated. The PV symbol next to the bar shows a graphic display of the PV power generated. This meter bar
expands from left to right. If no charge controller is present on the HUB, neither of these symbols will be present.
This symbol indicates that no problems are noted with either the inverter, the generator, or the batteries.
OK

If an inverter fault occurs, it will be replaced with the symbols

If a generator fault occurs, it will be replaced with the symbols

If a battery monitor is present and registers a battery problem, it will be replaced by the symbols
X
. (An event message will also appear.) See pages 132 and 139 for information on these messages.
26
LEGEND
Description
Figure 8 Home Screen for Off Grid
Icon(s)
Inverter
Generator
Gen current used by inverter

and loads
Net current flowing out of ()
 or 
or into () batteries
(measured by Battery Monitor)
!
. (An event message will also appear.)
!
. (An event message will also appear.)
Operation
Description
!
or
