FAVORITE Hot Key

The FAVORITE hot key allow the user to program and select often-used screens for rapid access. It
includes a green LED.
Programmable Soft Keys
When the FAVORITE hot key is held down for several seconds, the green LED will flash. At that time, the
user can press any of the four soft keys to record the current screen for rapid recall.
900-0117-01-00 Rev A

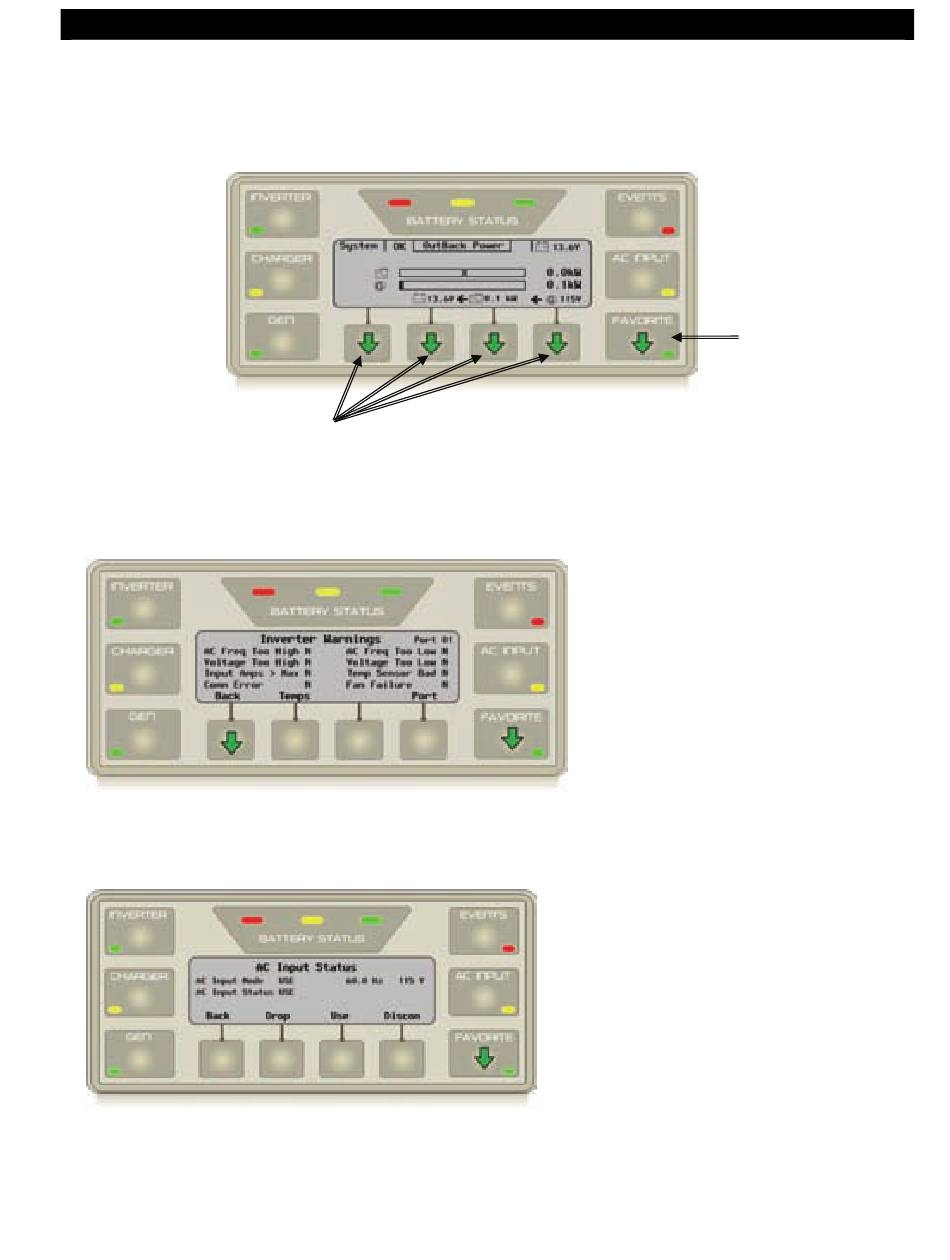

Figure 50 Using the FAVORITE Hot Key
Figure 51 FAVORITE Example #1
Figure 52 FAVORITE Example #2
Figure 51 is an example of rapid recall of the
Inverter Warnings screen. The user should
first navigate to this screen, then hold down
the FAVORITE key for several seconds.
Once the green LED flashes, the user can
press any soft key (the far left key, in this
example). After this is done, the green LED
will turn off.
When FAVORITE is pressed again briefly,
the green LED will turn on. The user can then
press the same soft key and the display will
jump to the selected screen (Inverter
Warnings, in this example).
Figure 52 is an example of rapid recall of a second screen,
the AC Input Status screen. Just as in the previous
example, the user navigates to the appropriate screen
and holds down FAVORITE until it flashes. Since the far
left key was used for Inverter Warnings, the user presses
the second key for AC Input Status. When FAVORITE is
pressed again briefly, the user can press the second soft
key to recall AC Input Status.
This function can be used for up to four screens, one per
soft key. Only hot key screens or sub-menus can be
programmed as Favorites.
Attempting to reuse a soft key to program a fifth screen
will simply delete the old screen for that soft key and
replace it with the new one.
Operation
FAVORITE
Hot Key
