Data Stream

This feature is not implemented at this time. Once the communication connection is established, it is
necessary to configure how the information is going to be sent to the personal computer or network.
 Use the Serial Data Stream option if the data's destination will be a personal computer.
 Use the Network Data Stream option if the data is destined for a network server.
Data Stream
To access the
1. Access the System Settings menu as shown in Figure 59.
2. Use the control wheel to highlight the Data Stream menu.
Press the button in the center of the control wheel to accept the selection.
3. Use the control wheel to change the value of each set point.
Press the button in the center of the control wheel to accept the selection.
The selection should automatically advance to the next set point when the button is pushed.
Repeat for each set point.
4. After setting the parameters for each set point, press the TOP navigation key to return to the System
menu items screen.
Set points:
 Serial Data Stream (for connecting to a personal computer) = Enabled or Disabled
 Serial Baud Rate = TBD
 Network Data Stream (for connecting to a network server) = Enabled or Disabled
(Not functional at this time)
 Destination IP = The IP address of the host computer or server.
 Destination Port = The port number assigned to the MATE3 on the host computer or server.
70
menu:

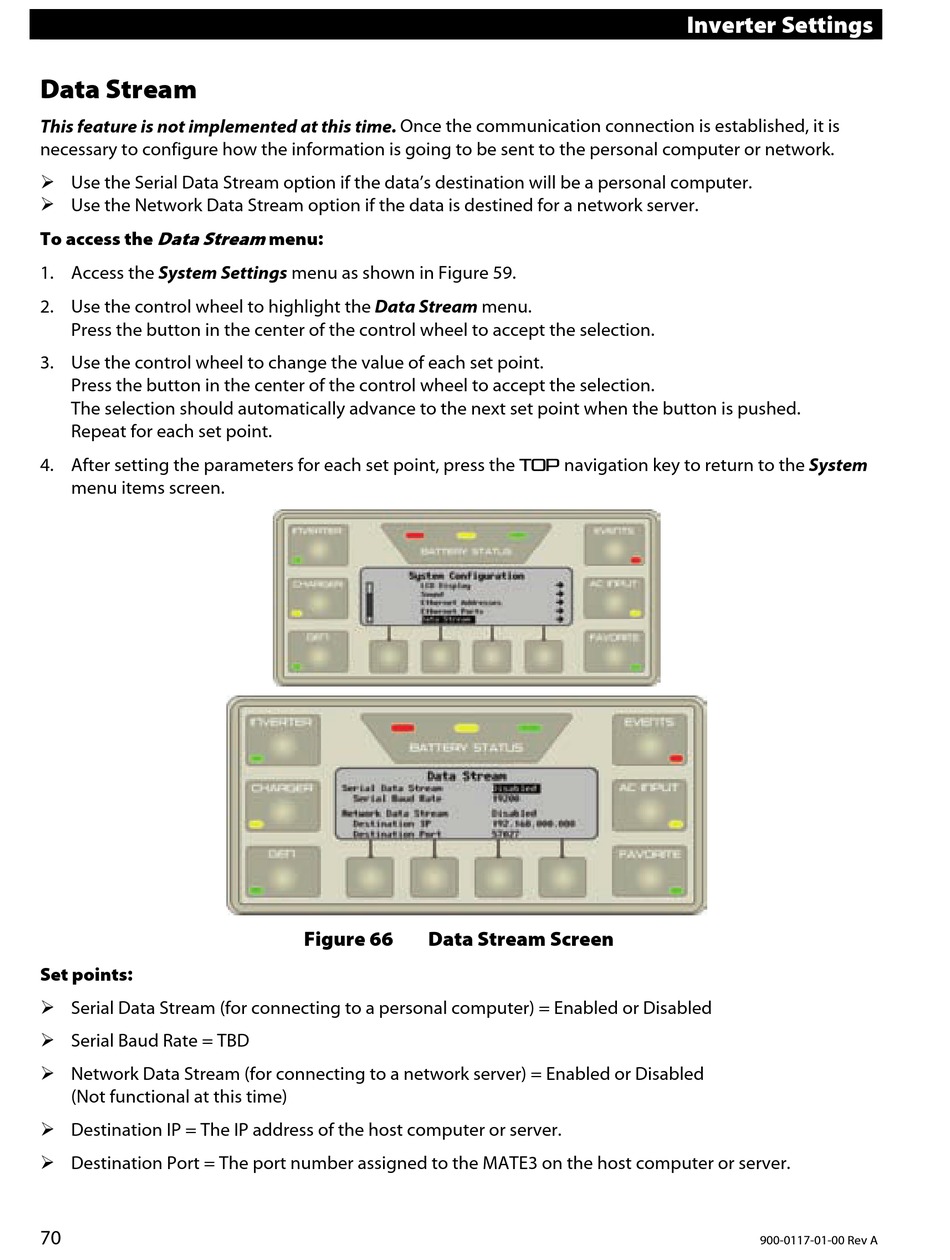

Figure 66 Data Stream Screen
