4. From the Main Menu screen, select Software Update.
5. From the Software Update screen, select MATE. The other items on the screen are not implemented
at this time and are labeled "NA" for this reason.
6. From the MATE Software Update screen, press the key labeled Update.
7. The screen will show Updating Main Processor. The yellow battery LED will flash rapidly.
8. Once the update is complete, the MATE3 will automatically reboot itself and return to the Home
screen. The software update is complete and the MATE3 can be reprogrammed as normal.
136

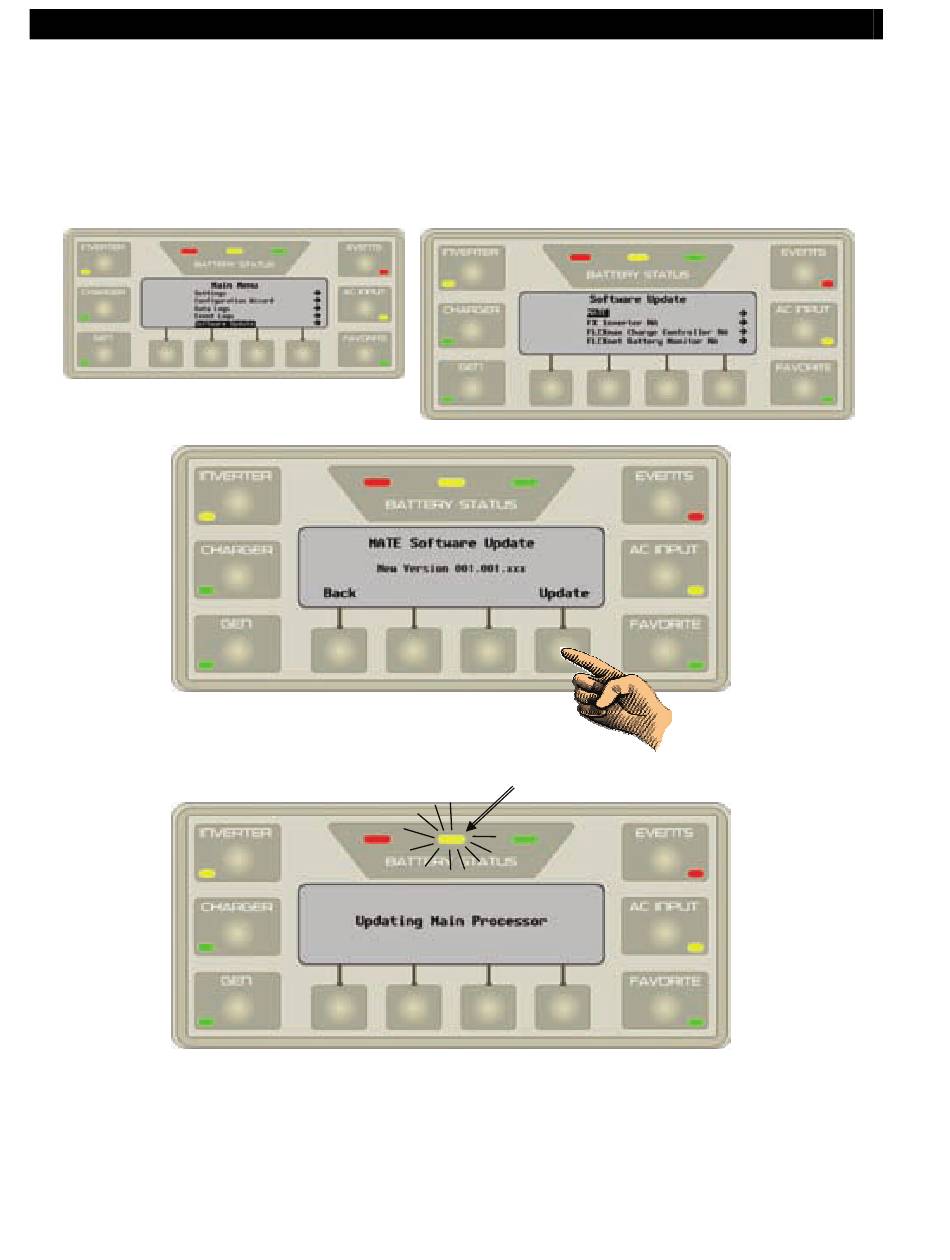

Figure 132 MATE3 Software Update
Software Update
LED will flash
