 Programming user features in the MATE3 system display and control. (page 112) These include:

Advanced Generator Start: -------------------------------------->
1. Setup --------------------------------------------------- >
2. Voltage Start ----------------------------------------- >
3. Load Start --------------------------------------------- >
4. State-of-Charge Start ----------------------------- >
5. Must Run Schedule --------------------------------- >
6. Quiet Time Schedule ------------------------------- >
7. Generator Exercise Schedule -------------------- >
8. Set Total Generator Run Time ------------------- >
9. Display AGS Timers --------------------------------- >

Data Logging -------------------------------------------------------->

High Battery Transfer --------------------------------------------->

Grid Use Time -------------------------------------------------------->

Charge Controller Float Coordination ----------------------->

FLEXnet DC Advanced Control---------------------------------->

Reset to Factory Defaults----------------------------------------->

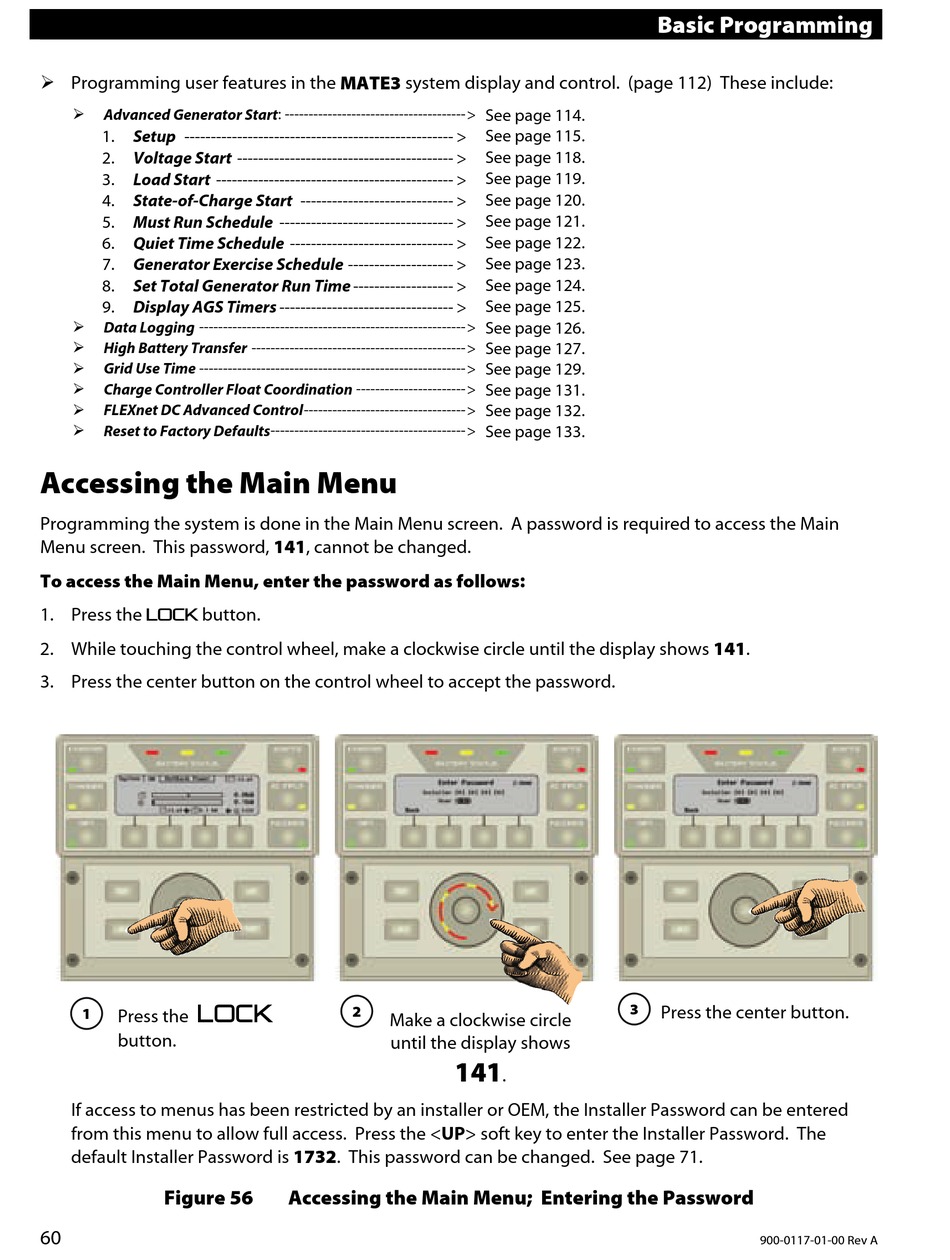

Accessing the Main Menu

Programming the system is done in the Main Menu screen. A password is required to access the Main
Menu screen. This password, 141, cannot be changed.
To access the Main Menu, enter the password as follows:
1. Press the LOCK button.
2. While touching the control wheel, make a clockwise circle until the display shows 141.
3. Press the center button on the control wheel to accept the password.
LOCK
1 Press the
button.
If access to menus has been restricted by an installer or OEM, the Installer Password can be entered
from this menu to allow full access. Press the <UP> soft key to enter the Installer Password. The
default Installer Password is 1732. This password can be changed. See page 71.
Figure 56
60
2
Make a clockwise circle
until the display shows
141
Accessing the Main Menu; Entering the Password
Basic Programming
See page 114.
See page 115.
See page 118.
See page 119.
See page 120.
See page 121.
See page 122.
See page 123.
See page 124.
See page 125.
See page 126.
See page 127.
See page 129.
See page 131.
See page 132.
See page 133.
3
Press the center button.
.
