Battery Monitor Settings

Battery Monitor menu options include the following:
 Battery Setup----------------------------------->
 Shunt Enable ----------------------------------->
 Relay Mode ------------------------------------->
 Relay Set Points ------------------------------->
 Reset to Factory Defaults------------------->
106
See page 107.
See page 108.
See page 109.
See page 109.
See page 111.

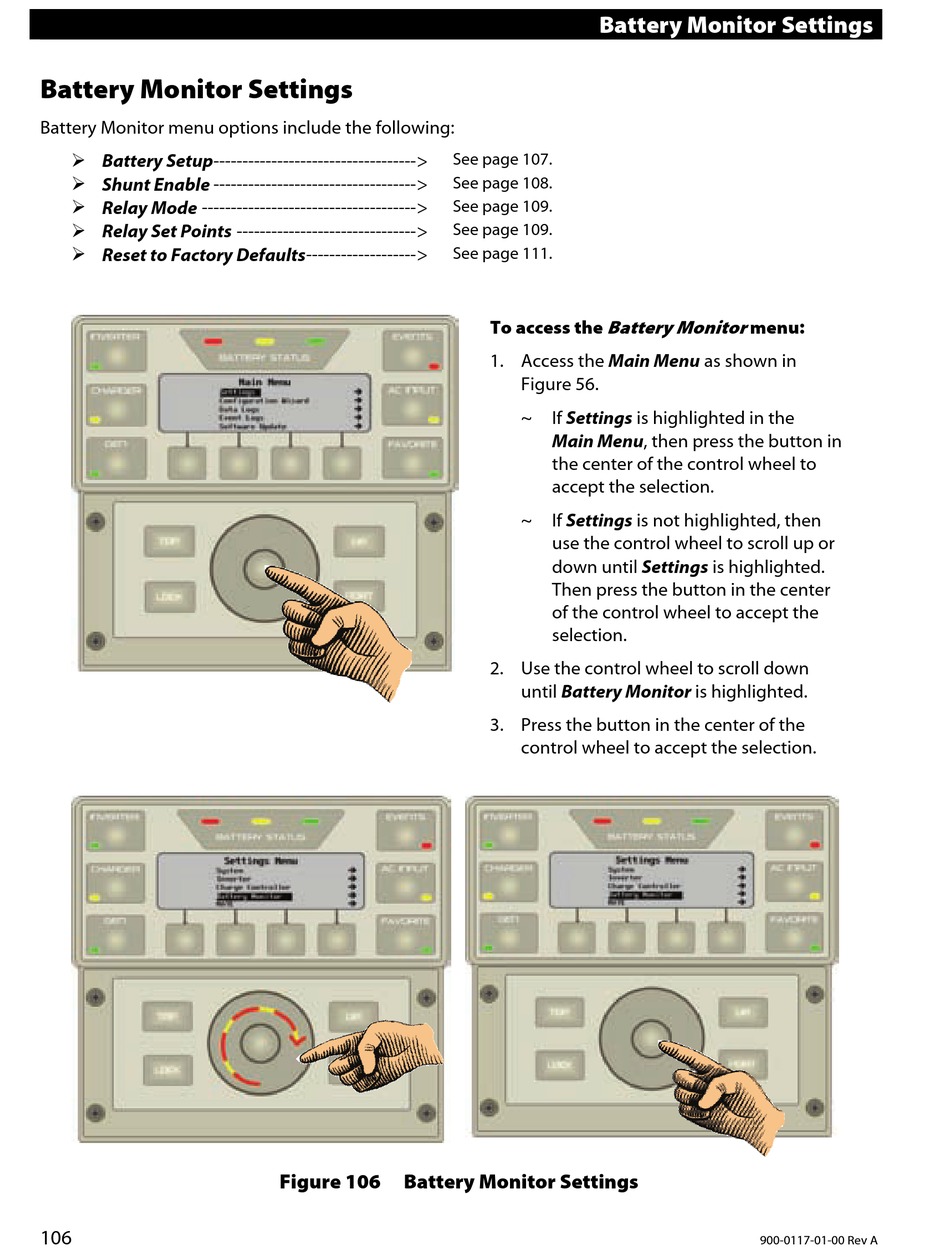

Figure 106 Battery Monitor Settings
Battery Monitor Settings
Battery Monitor
To access the
1. Access the Main Menu as shown in
Figure 56.
~ If Settings is highlighted in the
Main Menu, then press the button in
the center of the control wheel to
accept the selection.
~ If Settings is not highlighted, then
use the control wheel to scroll up or
down until Settings is highlighted.
Then press the button in the center
of the control wheel to accept the
selection.
2. Use the control wheel to scroll down
until Battery Monitor is highlighted.
3. Press the button in the center of the
control wheel to accept the selection.
menu:
900-0117-01-00 Rev A
