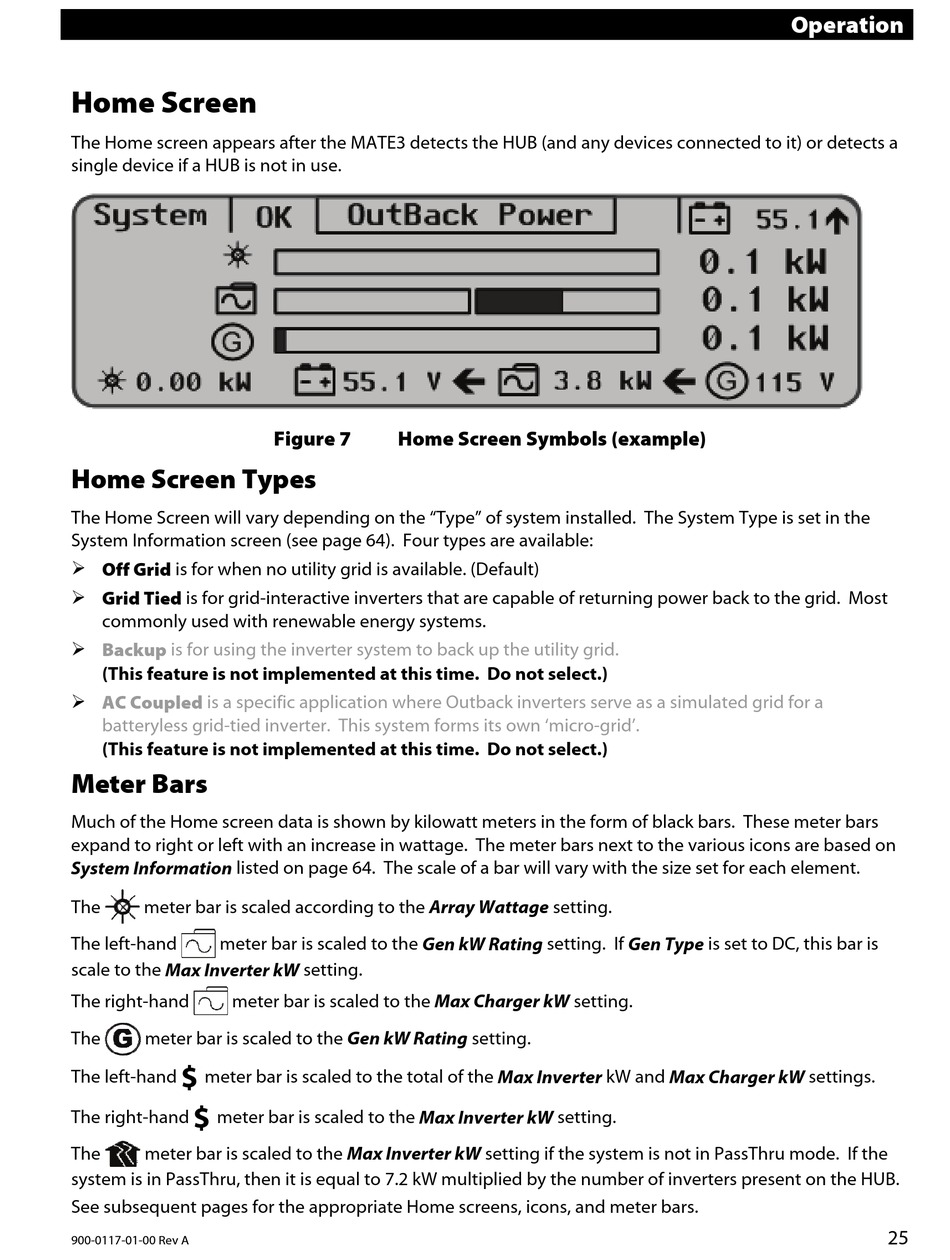

Home Screen; Home Screen Types; Meter Bars; Figure 7 Home Screen Symbols (Example) - Alpha Group OutBack Power MATE3 Owner's Manual

Home Screen

The Home screen appears after the MATE3 detects the HUB (and any devices connected to it) or detects a
single device if a HUB is not in use.

Home Screen Types

The Home Screen will vary depending on the "Type" of system installed. The System Type is set in the
System Information screen (see page 64). Four types are available:
 Off Grid is for when no utility grid is available. (Default)
 Grid Tied is for grid-interactive inverters that are capable of returning power back to the grid. Most
commonly used with renewable energy systems.

Backup is for using the inverter system to back up the utility grid.
(This feature is not implemented at this time. Do not select.)

AC Coupled is a specific application where Outback inverters serve as a simulated grid for a
batteryless grid-tied inverter. This system forms its own 'micro-grid'.
(This feature is not implemented at this time. Do not select.)

Meter Bars

Much of the Home screen data is shown by kilowatt meters in the form of black bars. These meter bars
expand to right or left with an increase in wattage. The meter bars next to the various icons are based on
System Information listed on page 64. The scale of a bar will vary with the size set for each element.
The meter bar is scaled according to the Array Wattage setting.
The left-hand meter bar is scaled to the Gen kW Rating setting. If Gen Type is set to DC, this bar is
scale to the Max Inverter kW setting.
The right-hand meter bar is scaled to the Max Charger kW setting.
The meter bar is scaled to the Gen kW Rating setting.
$
The left-hand meter bar is scaled to the total of the Max Inverter kW and Max Charger kW settings.
$
The right-hand meter bar is scaled to the Max Inverter kW setting.
The meter bar is scaled to the Max Inverter kW setting if the system is not in PassThru mode. If the
system is in PassThru, then it is equal to 7.2 kW multiplied by the number of inverters present on the HUB.
See subsequent pages for the appropriate Home screens, icons, and meter bars.
900-0117-01-00 Rev A
Figure 7 Home Screen Symbols (example)
