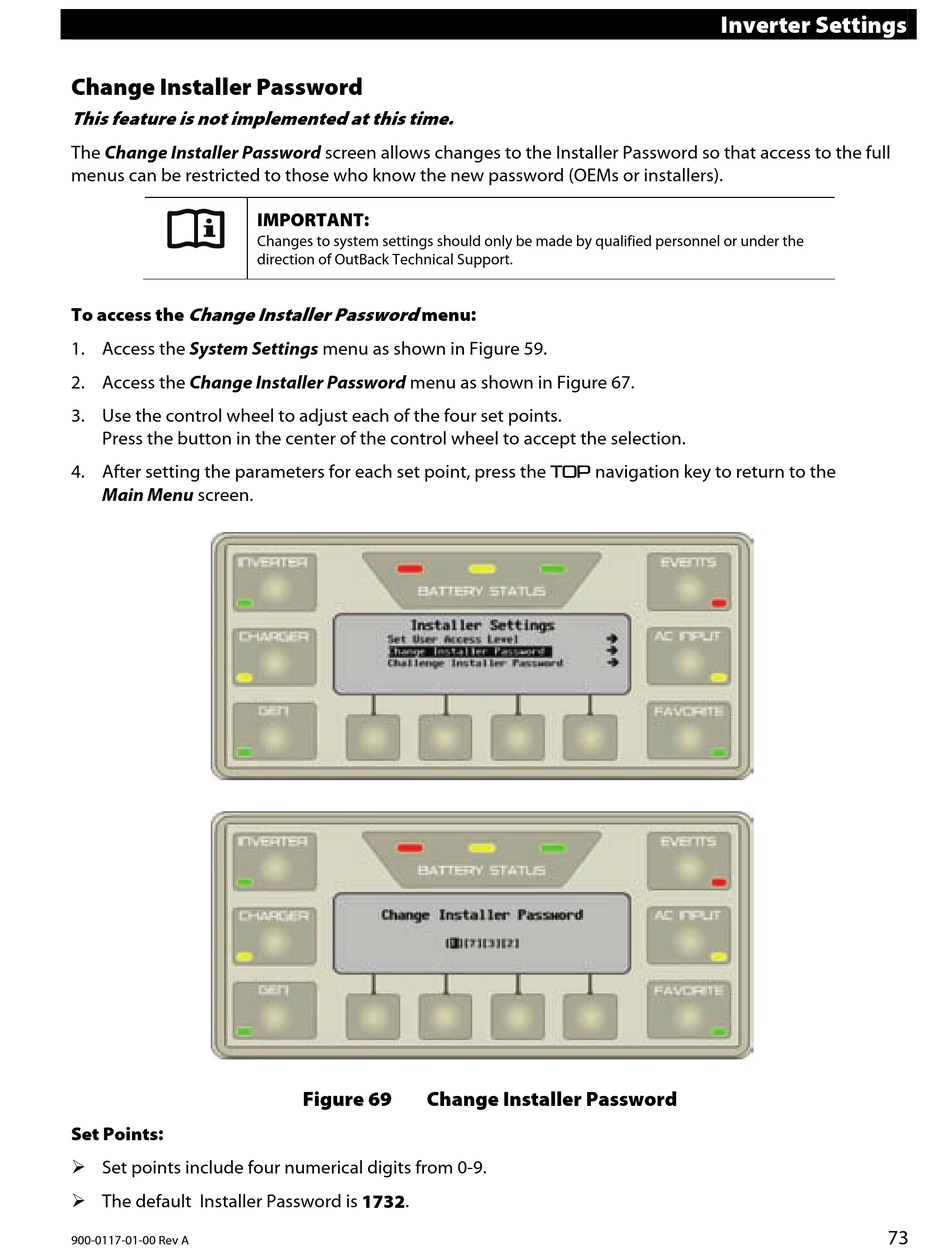

Alpha Group OutBack Power MATE3 Owner's Manual page 75

Change Installer Password
This feature is not implemented at this time.
The Change Installer Password screen allows changes to the Installer Password so that access to the full
menus can be restricted to those who know the new password (OEMs or installers).
Change Installer Password
To access the
1. Access the System Settings menu as shown in Figure 59.
2. Access the Change Installer Password menu as shown in Figure 67.
3. Use the control wheel to adjust each of the four set points.
Press the button in the center of the control wheel to accept the selection.
4. After setting the parameters for each set point, press the TOP navigation key to return to the
Main Menu screen.
Set Points:
 Set points include four numerical digits from 0-9.
 The default Installer Password is 1732 .
900-0117-01-00 Rev A
IMPORTANT:
Changes to system settings should only be made by qualified personnel or under the
direction of OutBack Technical Support.
menu:
Figure 69 Change Installer Password
Inverter Settings
73
