Figure 13 Battery Soft Key Screens (Without A Flexnet Dc Monitor) - Alpha Group OutBack Power MATE3 Owner's Manual

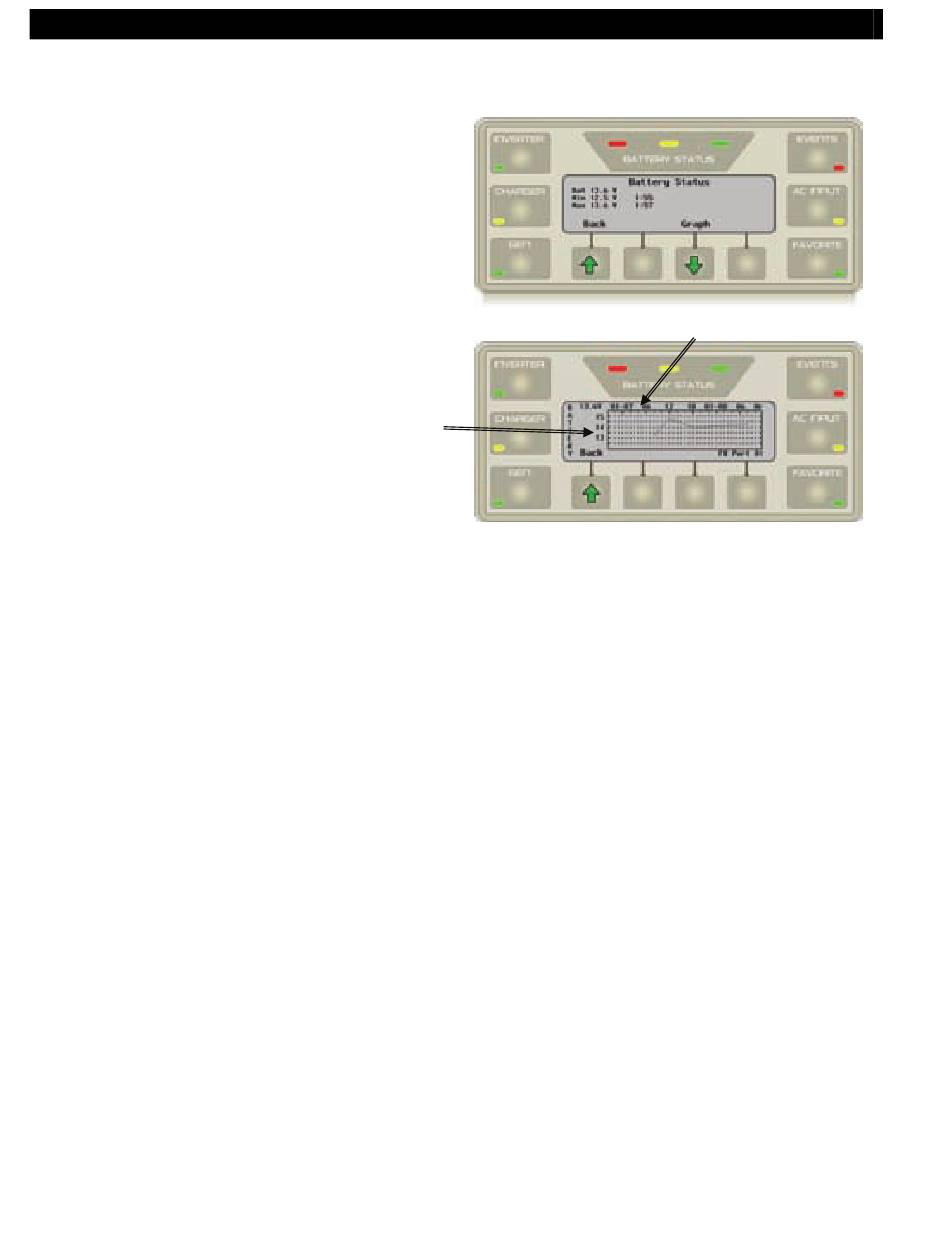

Screen Items:
Bat displays the uncompensated battery
voltage.
Min displays the lowest recorded battery
voltage for that day, and the time it was
recorded.
Max displays the highest recorded battery
voltage for that day, and the time it was
recorded.
Soft Keys:
<Graph> brings up a single graph
showing changes in battery voltage
over time. This is the same graph
shown on pages 34, 41, and 44.
<Back> returns to the previous screen.
Figure 13
30
This axis
shows
battery
voltage.
Battery Soft Key Screens (without a FLEXnet DC Monitor)
This axis shows date and time in 6-hour increments.
