Ethernet Ports

This feature is not implemented at this time. Once DHCP is enabled and the ethernet addresses are set, it
is necessary to establish which ports on the network are to be used by the MATE3.
Ethernet Ports
To access the
1. Access the System Settings menu as shown in Figure 59.
2. Use the control wheel to highlight the Ethernet Ports menu.
Press the button in the center of the control wheel to accept the selection.
3. Use the control wheel to change the value of each set point.
Press the button in the center of the control wheel to accept the selection.
The selection should automatically advance to the next set point when the button is pushed.
Repeat for each set point.
4. After setting the parameters for each set point, press the TOP navigation key to return to the System
Configuration screen.
Set Points:
 HTTP = Range TBD to TBD
 FTP = Range TBD to TBD
 Telnet = Range TBD to TBD
900-0117-01-00 Rev A
menu:

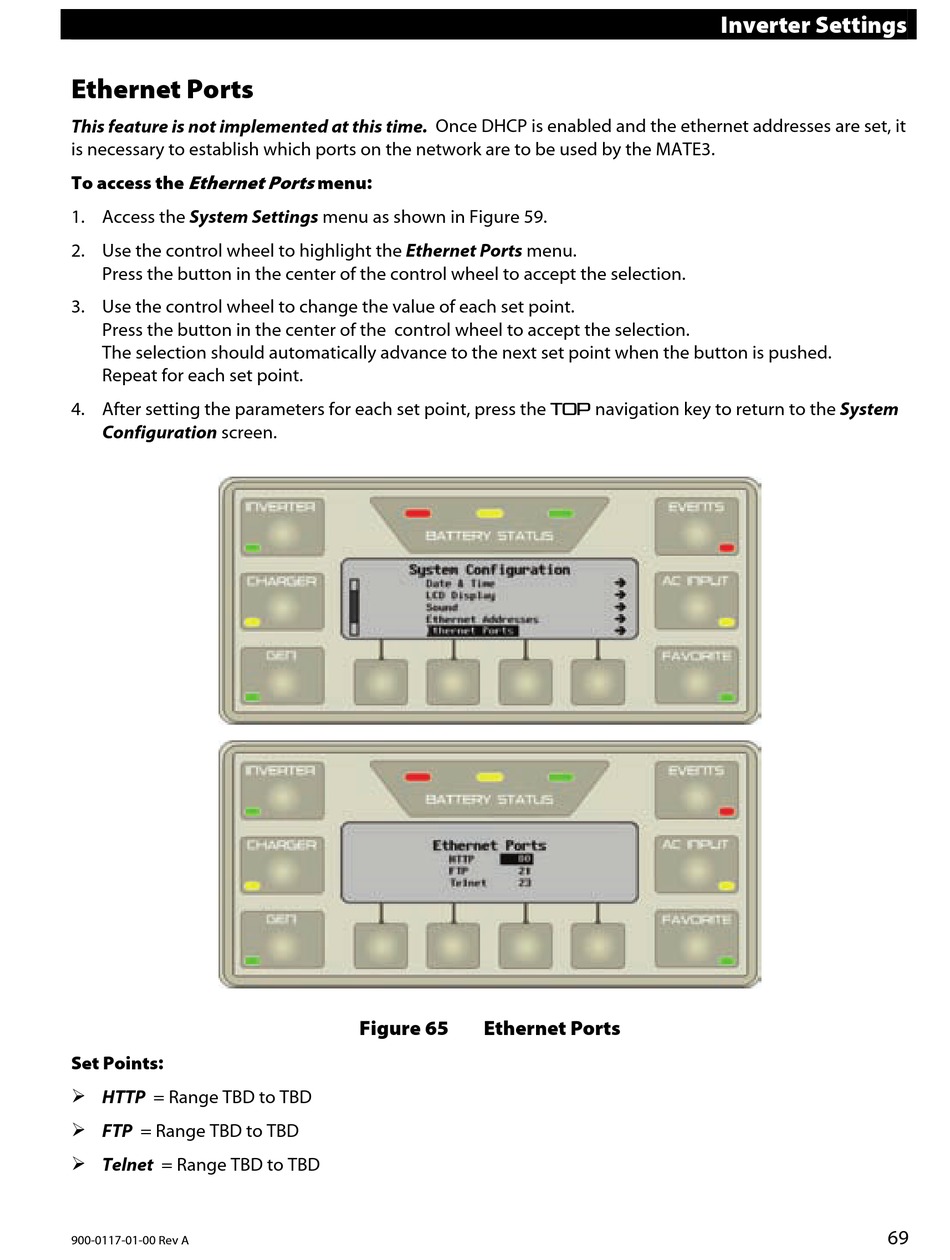

Figure 65 Ethernet Ports
Inverter Settings
69
