Summary of Contents for Alpha Group OutBack Power FLEXmax Extreme Series

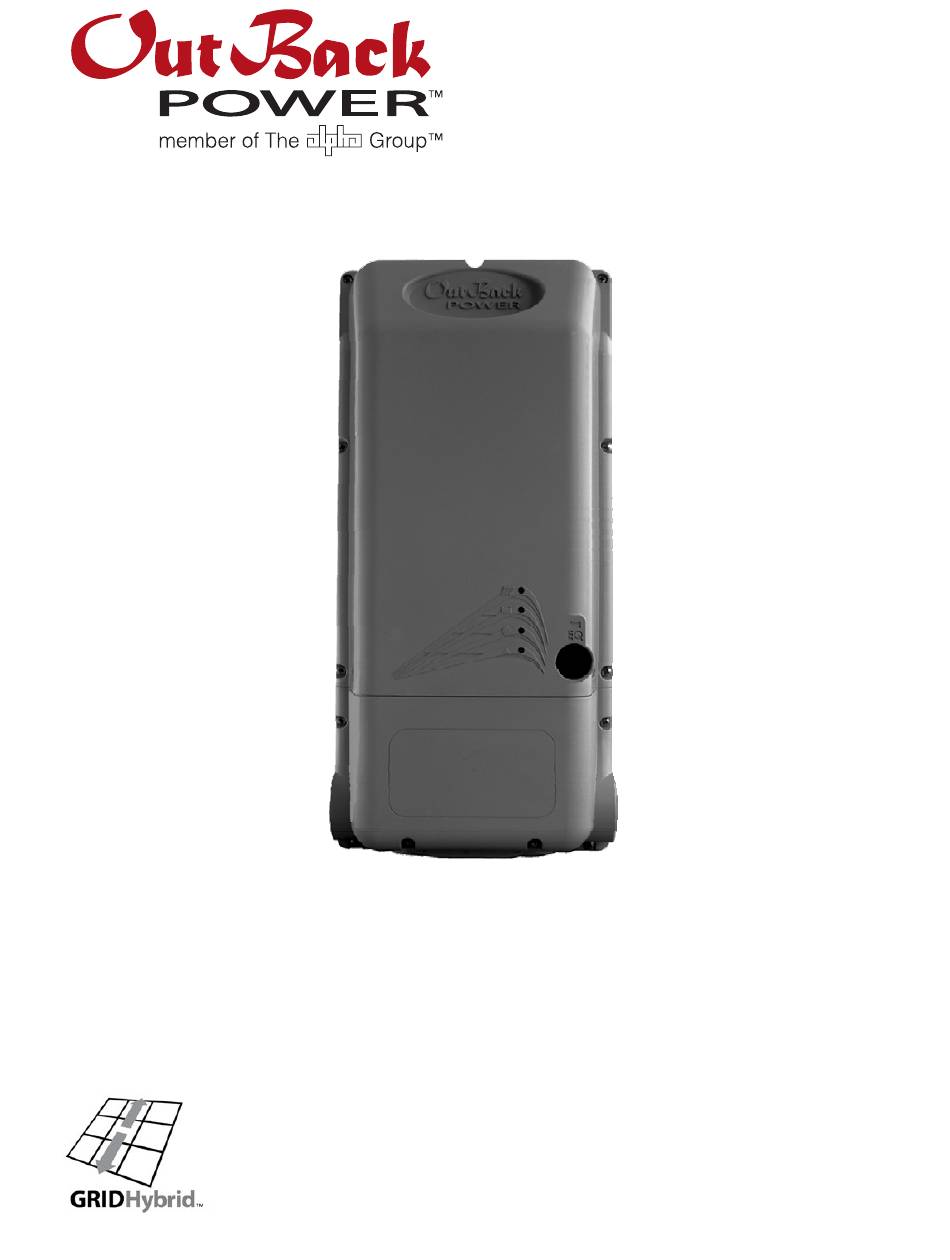

- Page 1 FLEXmax Extreme Charge Controller Owner’s Manual...
- Page 2 OutBack Power, the OutBack Power logo, FLEXpower ONE, and Grid/Hybrid are trademarks owned and used by OutBack Power Technologies, Inc. The ALPHA logo and the phrase “member of the Alpha Group” are trademarks owned and used by Alpha Technologies Inc. These trademarks may be registered in the United States and other countries.
-
Page 3: Table Of Contents
Table of Contents Introduction ................................. 5 Audience........................................5 Features ........................................5 Firmware ........................................5 Components and Accessories ................................6 Battery Types ..................................... 6 Installation ..................................7 Standards and Requirements ................................7 Dimensions ...................................... - Page 4 Table of Contents Graph Screens ....................................34 Programming the FLEXmax Extreme ....................... 35 Menu Structure in the MATE3 ................................. 35 Charge Controller Settings ................................36 Charger ......................................36 MPPT ........................................37 Temperature Compensation ..............................38 ...
- Page 5 Table of Contents Equalize ......................................72 Battery Temperature Compensation ............................72 FLEXnet DC Battery Monitor (FN-DC) ............................73 Positive-Ground Systems .................................. 74 Networked Devices ..................................74 Non-Networked Devices................................74 Grid-Interactive Settings ................................... 75 ...
- Page 6 Table of Contents THIS PAGE INTENTIONALLY LEFT BLANK. 900-0150-01-00 Rev A...
-
Page 7: Introduction
Introduction Thank you for purchasing a FLEXmax Extreme Series Charge Controller. These charge controllers offer an efficient, safe, multi-stage recharging process that prolongs battery life and assures peak performance from a PV array. Audience This manual is intended for use by anyone required to install and operate this equipment. Be sure to review this manual carefully to identify any potential safety risks before proceeding. -
Page 8: Components And Accessories
Introduction Components and Accessories Table 1 Components Included 1 x FM Extreme-150VDC 2 x Mounting Bracket 1 x Silicone Grease Package 2 x Ferrite Clamp, EMI Suppression (install on HUB/DEVICE port and RTS port; see page 16) WARNING: Shock Hazard This unit is not provided with a GFDI device. -
Page 9: Installation
Installation Standards and Requirements All installations must comply with national and local electrical codes. Professional installation is recommended. A FLEXmax Extreme charge controller operating in unventilated or in other conditions where the ambient temperature exceeds 45°C (113°F) will have a derated power output. See page 65 for more information. If damaged or malfunctioning, the FLEXmax Extreme should only be serviced by qualified personnel. -
Page 10: Mounting The Charge Controller
Installation Mounting the Charge Controller The FLEXmax Extreme must be mounted upright on a wall or similar flat upright mounting surface. It must be mounted at least 36” (91.4 cm) above the ground or floor. No other mounting positions are allowed. Installation in shade is recommended. - Page 11 Installation The second mounting method uses brackets on the top and bottom of the controller. This method is useful when mounting the controller next to an OutBack inverter system, as the conduit openings will align. It is also useful for mounting without making advance measurements. The FLEXmax Extreme controller comes with two identical brackets.
-
Page 12: Installing The Fan
Installation Installing the Fan An optional fan is available for the FLEXmax Extreme to provide additional cooling. The fan is mounted on the bottom of the charge controller. The total unit height with the fan attached is shown below. See page 65 for information on the fan’s effects on unit performance. -
Page 13: Installing The Axs Card
Installation Installing the AXS Card An optional AXS Card enables Ethernet access to the FLEXmax Extreme using the Modbus protocol. (The AXS Card is identical in function to the OutBack AXS Port product. See the AXS Port SunSpec Modbus Interface Owner’s Manual for more information. -
Page 14: Wiring
Installation Wiring This section provides instructions on installing PV array wiring into the charge controller. See page 69 for more notes on PV array sizing. All wiring must comply with local and national codes. Grounding This product is intended to be installed as part of a permanently grounded electrical system. This is shown in the wiring diagrams in this book. -
Page 15: Physical Requirements And Conduit
Installation The largest PV array must have a rated short-circuit current of 64 amps or less under STC (Standard Test Conditions). The output current limit of the FLEXmax Extreme is 80 amps. DC battery overcurrent protection must be used as part of the installation. OutBack offers both circuit breakers and fuses for overcurrent protection. - Page 16 Installation NOTE: Ground Fault and system-specific wiring not shown Figure 8 Wiring Diagram – Single Charge Controller with PV Array NOTE: Ground Fault and system-specific wiring not shown Figure 9 Wiring Diagram – Single Charge Controller (Positive-Ground) 900-0150-01-00 Rev A...
- Page 17 Installation NOTE: Ground Fault and system-specific wiring not shown Figure 10 Wiring Diagram – Charge Controller with PV Array and Inverter CAUTION: Equipment Damage The FLEXmax Extreme can be used in a positive-ground system with one OutBack inverter as shown above. It cannot be used in a positive-ground system with multiple OutBack inverters.
-
Page 18: Accessory Terminals And Ports
Installation Accessory Terminals and Ports HUB/System Display Port Remote Temperature Sensor (RTS) Port Fan Connector AXS Card (optional) Accessory Terminal Block Figure 11 Wiring Compartment HUB/Display Port This is an RJ-45 port for a CAT5 cable to connect OutBack system displays or communications managers. A ferrite clamp (see page 6) should be installed on this cable inside the compartment. -
Page 19: Aux Terminals
Installation AUX Terminals The AUX (Auxiliary) output is a small power supply that provides a 12 Vdc output current to an isolated load. The AUX output can respond to many criteria and control many functions. These include cooling fans, vent fans, load diversion, fault alarms, and automatic generator control. -
Page 20: Battery Sense Terminals
Installation Battery Sense Terminals The remote Battery Sense terminals are used for accurate voltage monitoring. These terminals connect directly to the batteries. Using the controller’s main battery cables for voltage sensing is less accurate. This is due to voltage rise caused by charging currents on the battery conductors. Terminals are the –... - Page 21 Installation The terminals detect electrical continuity. These contacts remain closed as long as the GFDI bonding switch remains closed. If a ground-fault event occurs, both the GFDI switch and the GFDI contacts will open. The External Fault circuit will detect the loss of continuity and will shut down the charge controller. If multiple charge controllers are in use, they can be paralleled so that all controllers use a common GFDI.
- Page 22 Installation continuity. The External Fault circuit will detect this loss immediately and shut down the the controller. The red Fault LED indicator will illuminate. See pages 24, 32, and 61. Other possible uses for the External Fault terminals include devices such as arc fault protection, or an Emergency Power Off (EPO) switch for a fast manual shutdown.
-
Page 23: Power Up
Installation Power Up IMPORTANT: The charge controller automatically senses the nominal battery voltage upon connection. Once set, it retains the nominal voltage setting. Following any type of shutdown or disconnect, it will return to operation automatically. The PV array voltage is automatically detected upon connection. The PV array voltage must never exceed 150 V ... -
Page 24: Resetting To Factory Defaults
Installation charge inappropriately (or not at all). Normally the nominal system voltage is retained. If the FLEXmax Extreme is disconnected from the batteries or otherwise loses power, upon a new power-up it will continue using the nominal voltage and settings determined previously. -
Page 25: Status And Information
Status and Information LED Indicators Charging Indicator — Blue LED Status Indicator — Green/Red (or Amber) LED AUX Indicator — Yellow LED Fault Indicator — Red LED Figure 19 LED Indicators The FLEXmax Extreme charge controller has no graphical display. It is equipped with four LED indicators that show the charge controller’s condition. -
Page 26: Table 2 Led Indicators
Operation NOTE: The Status indicator turns red if the battery voltage falls below 1.91 Vpc. The red color shows an urgent condition, indicating that the batteries are discharged. A red flash means the batteries have fallen below 1.75 Vpc, a critically low voltage. These patterns will appear regardless of the charging stage. If it appears, the Status indicator cannot show the stage, although it may still be shown by the blue Charge indicator. -
Page 27: Modes Of Operation
Operation Modes of Operation The FLEXmax Extreme goes through many states during its operation. Figure 20 shows an example of the various stages of battery charging and several states when the controller is not charging. (The graph in Figure 20 shows a typical day of charging with a nominal 24-volt system. Charging is described in detail on page 71.) The MATE3 system display has five “mode”... -
Page 28: Absorb
Operation Absorb The MATE3 displays this message for the Absorption stage of a three-stage cycle. In this stage, the FLEXmax Extreme regulates the battery voltage at the Absorb Voltage set point. Absorption is a constant-voltage, variable-current charging stage. It usually involves a tapering current flow. However, it may deliver no current and still display Absorb if another source maintains the batteries above the Absorb Voltage set point. -
Page 29: Floating
Operation Floating The MATE3 displays this message for the Float stage of a three-stage charging cycle. In this stage, the FLEXmax Extreme regulates the battery voltage at the Float Voltage set point. This stage is temperature-compensated. (See page 72.) Float is a constant-voltage, variable-current charging stage. It usually involves a minimal (maintenance) current flow. -
Page 30: Silent
Operation Silent The MATE3 displays the operating mode as Silent if the charge controller has stopped charging. This message represents a variety of conditions, many of which are common. For example, Silent is shown at night or any period of insufficient light. Table 4 lists the indicators and the PV open-circuit voltage which show specific Silent conditions. -
Page 31: Mate3 System Display And Controller
Operation MATE3 System Display and Controller Battery Status Indicators (x3) Charger Indicator Charge Controller Soft Key Figure 26 Display and LED Status Indicators The MATE3 System Display and Controller is a display which allows the user to read the operating mode, measurements, and any status messages from the FLEXmax Extreme charge controller. -
Page 32: Charge Controller Soft Key
Operation Charge Controller Soft Key The MATE3 is equipped with a series of “soft” keys with varying functions. From the Home screen, the far left key is designated as the Charge Controller soft key any time a charge controller is connected. Pressing it will enter the Status menu for the charge controller. -
Page 33: Stats Screen
Operation Stats Screen From the Charge Controller screen, the <Next> soft key proceeds to the Charge Controller Stats screen. This screen shows data which has been accumulated since the system went online, or since the last reset. Screen Items: The items under Maximum are not incremental. They are updated only if a higher value is measured. -
Page 34: Error Screen
Operation Error Screen From the Charge Controller Stats screen, the <Next> soft key proceeds to the Charge Controller Error screen. This screen displays fault conditions for the FLEXmax Extreme. If an item displays Y, the error is active. Some errors accompany a controller shutdown; others simply report status. Screen Items: VOC Too High The PV array V has exceeded 145 Vdc and has... -
Page 35: Datalog Screen
Operation DataLog Screen From the Charge Controller Error screen, the <DataLog> soft key proceeds to the Charge Controller Datalog screen. This screen shows accumulated daily amp-hour and watt-hour statistics, as well as maximum current, wattage, and maximum and minimum voltage figures. These maintain a continuous daily log, up to 128 days, which can be recalled. -
Page 36: Graph Screens
Operation Graph Screens The <Graph> soft key brings up the following screens which plot various types of data over time. The first screen shows changes in PV wattage over time. This axis shows date and time in 6-hour increments. This axis shows PV wattage. -
Page 37: Programming The Flexmax Extreme
Programming the FLEXmax Extreme Menu Structure in the MATE3 Figure 36 shows the MATE3 menu structure for adjusting the charge controller settings. The Main Menu shown below is accessed with the LOCK button and a password. Use the MATE3’s control wheel to move up and down between menus (or options within a menu). -
Page 38: Charge Controller Settings
MATE3 Screens Charge Controller Settings Charge Controller menu options include the following: Charger -------------------------------------------------------------- > See below. MPPT ----------------------------------------------------------------- > See page 37 Temperature Compensation---------------------------------- > See page 38. Battery Equalize -------------------------------------------------- > See page 38. Grid-Tie Mode ---------------------------------------------------- > See page 38. -
Page 39: Mppt
MATE3 Screens MPPT The charge controller uses a maximum power point tracking (MPPT) algorithm which manipulates the output of the PV array to harvest maximum wattage. Although this function is automatic, this menu allows the user to adjust many of its parameters for special applications. See page 73. Set Points: ... -
Page 40: Temperature Compensation
MATE3 Screens Temperature Compensation The Temperature Compensation screen allows the user to control the Absorbing and Float voltage limits during charging when using a Remote Temperature Sensor (RTS). The RTS adjusts charging voltage depending on battery temperature. See page 72 for an explanation of compensation. Set Points: ... -
Page 41: Grid-Tie Mode
MATE3 Screens Grid-Tie Mode IMPORTANT: This mode requires a grid-interactive inverter model (also known as grid-tie enabled). Not all inverters are grid-interactive. Also, the inverter’s SELL mode must be enabled. If the system is connected to an inverter that is not grid-interactive or not enabled, Grid-Tie mode will not function. -
Page 42: Auxiliary Mode Screens
MATE3 Screens Auxiliary Mode Screens The nine options appear in the following order when the wheel is drawn clockwise. The Vent Fan option appears first if the charge controller is set at factory default values; otherwise, it will tend to display the last option selected. - Page 43 MATE3 Screens Table 6 AUX Mode Functions Mode Name Function/Purpose Set Points Aux Polarity Low Battery Error Output Active Low only. Deactivates the output when the voltage Voltage drops below the set point for a set amount of time. Function: This mode responds to two emergency conditions: low battery or failure to charge.
- Page 44 MATE3 Screens Table 6 AUX Mode Functions Mode Name Function/Purpose Set Points Aux Polarity Relative Diversion: Active High: Activates when voltage battery voltage exceeds the Relay set point. Usually controls an Hold time auxiliary load to divert power ...
- Page 45 MATE3 Screens Table 6 AUX Mode Functions Mode Name Function/Purpose Set Points Aux Polarity Disconnect Low Battery Not Available Disconnect Re-Connect Disconnect Delay Function: When the battery voltage falls below the Disconnect voltage following the Disconnect Delay, the AUX output activates. When the battery voltage rises above the Re-Connect voltage, the AUX deactivates.
- Page 46 MATE3 Screens Figure 43 Wiring Diagram for Diversion Load and AUX Wiring 900-0150-01-00 Rev A...
-
Page 47: Restart Mode
MATE3 Screens Restart Mode This setting allows the user to choose between continuous maximum power point (MPP) tracking, or occasional restarts of the sweeping process. A restart means the controller abandons the existing maximum power point value it was using and “re-sweeps”, or begins gathering new power point data. (See page 70 for more information on MPP tracking.) ReStart Mode has three options available: ... -
Page 48: Firmware Revision
MATE3 Screens To access the Reset to Factory Defaults menu: Access the main menu as shown on page 35. Select the Settings menu. (This option may be highlighted by default.) Select Charge Controller in the device Settings menu. Select the Reset to Factory Defaults menu. Use the soft keys to select No or Yes. -
Page 49: Device Data Logs
MATE3 Screens Device Data Logs Users of the MATE3 can create Device Data Logs for the FLEXmax Extreme charge controller. The Data Logs can then be uploaded and saved to an SD card. Saving Data Logs for the FLEXmax Extreme To create a data log for the FLEXmax Extreme: Access the Main Menu as shown on page 35. -
Page 50: Data Log File Format
MATE3 Screens Data Log File Format Information generated by this function will be saved on the SD card in a generic .csv file format, which can be read by most spreadsheet programs. Data Logging example: NOTE: This header line is NOT included in the download. Absorb Float Date... -
Page 51: Mate/Mate2 Screens
MATE/MATE2 Screens The MATE and MATE2 system displays can be used for monitoring FLEXmax Extreme activity. Not all information shown in the MATE3 is equally available in the MATE. Summary Screens The Summary screens show real-time and accumulated system information. The FLEXmax Extreme Summary screen appears at the bottom of the screen order. -
Page 52: Status Screens
MATE/MATE2 Screens Status Screens To view the status screens of a FLEXmax Extreme using a MATE, follow the illustration below. Changes to FLEXmax Extreme settings cannot be made when viewing these screens on a MATE. MODE Screens MAIN------------------ Navigation for STATUS/CC/MODE 1:35:04p ... -
Page 53: Meter Screens
MATE/MATE2 Screens METER Screens MAIN------------------ Navigation for STATUS/CC/METER 1:35:04p <STATUS> returns to the CC/PAGE1 screen. SUM STATUS SETUP ADV <DOWN> moves to the next menu item in the diagram. <UP> moves to the previous menu item in the diagram. ... -
Page 54: Setpt Screens
MATE/MATE2 Screens SETPT Screens Navigation for STATUS/CC/SETPT MAIN------------------ <STATUS> returns to the CC/PAGE1 screen. 1:35:04p <DOWN> moves to the next menu item in the SUM STATUS SETUP ADV diagram. <UP> moves to the previous menu item in the diagram. -
Page 55: Log Screens
MATE/MATE2 Screens LOG Screens MAIN------------------ Navigation for STATUS/CC/LOGS 1:35:04p <STATUS> returns to the CC/PG2 screen. SUM STATUS SETUP ADV <DOWN> moves to the next menu item in the diagram. <UP> moves to the previous menu item in the diagram. STATUS---------------- choose device ... -
Page 56: Stat Screens
MATE/MATE2 Screens STAT Screens Navigation for STATUS/CC/STAT <STATUS> returns to the CC/PAGE2 screen. <DOWN> moves to the next menu item in the diagram. MAIN---------------- <UP> moves to the previous menu item in the diagram. 1:35:04p <TOP> returns to the CC/STAT/PAGE2 screen for the port shown, with the exception of the “end of the cc stats”... -
Page 57: Advanced Menus
MATE/MATE2 Screens Advanced Menus The Advanced menus available in the MATE or MATE2 system display allow the following options: Change the settings of the FLEXmax Extreme battery charger, with the following exception: The MATE and MATE2 system display cannot adjust the rate of temperature compensation (the “slope”); see page 38 ... -
Page 58: Chgr Menu
MATE/MATE2 Screens CHGR Menu Navigation for ADV/CC/CHGR <DOWN> moves to the next menu item in the diagram. <INC> increases the value of the selection. <DEC> decreases the value of the selection. <PORT> directs the MATE to read the next device (port) on the HUB. -
Page 59: Cc Advanced Menu
MATE/MATE2 Screens CC ADVANCED Menu CC/Advanced The ADVANCED screens include a series of settings which are located in a variety of places in the MATE3. These include the MATE3 Charger screen (see page 36), the MPPT screen (see page 37), the Temperature Compensation screen (see page 38), the Grid-Tie Mode screen (see page 39), the Auxiliary Output screen (see page 39), the Restart Mode screen (see page 45) , and the Navigation for ADV/CC/ADVANCED... -
Page 60: Eq Menu
MATE/MATE2 Screens EQ Menu Navigation for ADV/CC/EQ <DOWN> moves to the next menu item in the diagram. <INC> increases the value of the selection. <DEC> decreases the value of the selection. <PORT> directs the MATE to read the next device (port) on the HUB. -
Page 61: Aux Menu
MATE/MATE2 Screens AUX Menu Navigation for ADV/CC/AUX <DOWN> moves to the next menu item in the diagram. <INC> increases the value of the selection. <DEC> decreases the value of the selection. <PORT> directs the MATE to read the next device (port) on the HUB. - Page 62 MATE/MATE2 Screens THIS PAGE INTENTIONALLY LEFT BLANK. 900-0150-01-00 Rev A...
-
Page 63: Troubleshooting
Troubleshooting IMPORTANT: Check the OutBack customer and user forum at www.outbackpower.com/forum/ for more FLEXmax Extreme information. A MATE3, or other OutBack system display, may be required for many of the troubleshooting steps in Table 7. Table 7 Troubleshooting Symptom Remedy ... -
Page 64: Table 7 Troubleshooting
Troubleshooting Table 7 Troubleshooting Symptom Remedy Check equalization settings using the system display. (See pages 38 and 72). The Unit in equalization cycle default settings are not sufficient for many batteries and may need to be adjusted. but not achieving ... -
Page 65: Specifications
Specifications Electrical and Mechanical Specifications Table 8 Electrical and Mechanical Specifications for Model FM Extreme-150VDC Specification Value Maximum Continuous Output Current 80 amps Maximum Input Current (short-circuit) 64 amps Nominal Battery System Voltage 12, 24, 36, 48 or 60 Vdc (adjustable) PV Open-Circuit Voltage 145 Vdc temperature corrected V (operational maximum) -
Page 66: Regulatory Specifications
Specifications Regulatory Specifications This product is certified to the following standards: UL1741 — Inverters, Converters, Controllers and Interconnection System Equipment for Use With Distributed Energy Resources — Issue: 2010/1/28 Ed: 2 CSA C22.2 — General Use Power Supplies, No. 107.1-01 — Issue: 2001/09/01 Ed:3 (R2011) ... -
Page 67: Temperature Range And Derating
Specifications Temperature Range and Derating AMPERES 45°C 55°C 71 A 53 A DEGREES CELSIUS With fan Without fan Figure 61 Temperature Range In standard installations, the FLEXmax Extreme can operate at its full 80-amp capacity at ambient temperatures up to 45°C (113°F). Above this temperature, its output is derated as shown in Figure 61. At 60°C (140°F), the output is derated to a maximum of 53 Adc. -
Page 68: Default Settings And Ranges
Specifications Default Settings and Ranges The settings in this table are as displayed in the MATE3 system display for a 12-volt system. Table 10 FLEXmax Settings (MATE3) Mode Menu Item Setting Default 14.4 Vdc Absorb Voltage Range: Float setting to 80 Vdc (Absorb) Time Default 01.0 hours Range: 00.0 to 24 hours Default 13.8 Vdc... - Page 69 Specifications Table 10 FLEXmax Settings (MATE3) Mode Menu Item Setting Default <Off> Diversion:Solid St <On, Auto, Off> Default 0.0 Vdc Relative Voltage Range: 0.0 to 5.0 Vdc Default 0.2 Vdc Hysteresis Range: 0.0 to12.0 Vdc Default 0.1 second Hold Range: 0.0 to 25 seconds Default 0.0 seconds Delay Range: 0.0 to 24 seconds...
- Page 70 Specifications THIS PAGE INTENTIONALLY LEFT BLANK. 900-0150-01-00 Rev A...
-
Page 71: Applications
Applications Array Design Sizing Guidelines Below is a list of maximum array wattages for the FLEXmax Extreme for various nominal voltage batteries. This should be used for sizing an array. Note that every PV module is different. The specifications for every model should be consulted before designing or assembling a PV array. -
Page 72: Open Circuit Voltage
Applications Weather Conditions Cooler climates can cause the V to rise above the array’s rated V . In climates that observe temperatures less than approximately -15°C (5°F), a V greater than 125 Vdc is not recommended. Hot weather: lower V and lower V Cold weather: higher V and higher V... -
Page 73: Three-Stage Battery Charging
Applications Three-Stage Battery Charging The FLEXmax Extreme charge controller is a sophisticated, multi-stage battery charger that uses several regulation stages to allow fast recharging of the battery system while ensuring a long battery life. This process can be used with both sealed and non-sealed batteries. The FLEXmax Extreme is a “buck” converter which turns higher PV voltages into the lower charging voltages used by batteries (with correspondingly higher currents). -
Page 74: Float
Applications Float stage. The charger will also also exit Absorbing if the Absorb End Amps setting is reached, regardless of the timer. This resets the timer to zero. (See page 36.) This stage is temperature compensated. Float This is the third stage of charging. It is a constant-voltage stage. The batteries are maintained at the Float set point. -
Page 75: Flexnet Dc Battery Monitor (Fn-Dc)
Applications The FLEXmax Extreme controller, when equipped with the Remote Temperature Sensor (RTS), will compensate for temperature. The RTS is attached to a single battery near the center of the bank. When charging, the RTS will increase or decrease the charge voltage by 5 mV per degree Celsius per battery cell. This setting affects the Absorbing and Float set points. -
Page 76: Positive-Ground Systems
Applications Positive-Ground Systems The FLEXmax Extreme can be used in a positive-ground system. However, due to internal grounding paths between the controller and other devices, positive grounding allows only certain combinations of devices in the configuration. These combinations are dependent upon whether or not the system is networked together or the devices stand alone. -
Page 77: Grid-Interactive Settings
