Hot Keys

Six hot keys are available to facilitate navigation through the most commonly used operational screens.
Some screens will have operational options, such as ON, OFF, or AUTO, as well as show current operational
status for that function. Status, mode, and measurements are the collective status of the system, not of an
individual inverter, unless specified otherwise.

INVERTER Hot Key

CHARGER Hot Key
GEN Hot Key
INVERTER Hot Key
The INVERTER hot key displays the Inverter Status screen. The Inverter Status screen displays the
current inverter mode, input and output voltage and current, battery voltage, and load draw.
INVERTER
Hot Key
Screen Items:
Mode displays the setting
selected by the soft keys
(<ON>, <OFF>, or <Search>).
Battery displays the battery voltage, not
compensated for temperature. (See page 37
for the compensated value.)
Input displays the AC input source voltage
and the power in kW drawn from the
AC source.
Output displays the voltage measured at the
inverter's output and the power in kW
produced by the inverter. The inverter's
produced power may equal the load
wattage, but it may also include power sold
to the grid (in grid-interactive inverters).
Load displays the power in kW delivered to
the inverter's output.
900-0117-01-00 Rev A

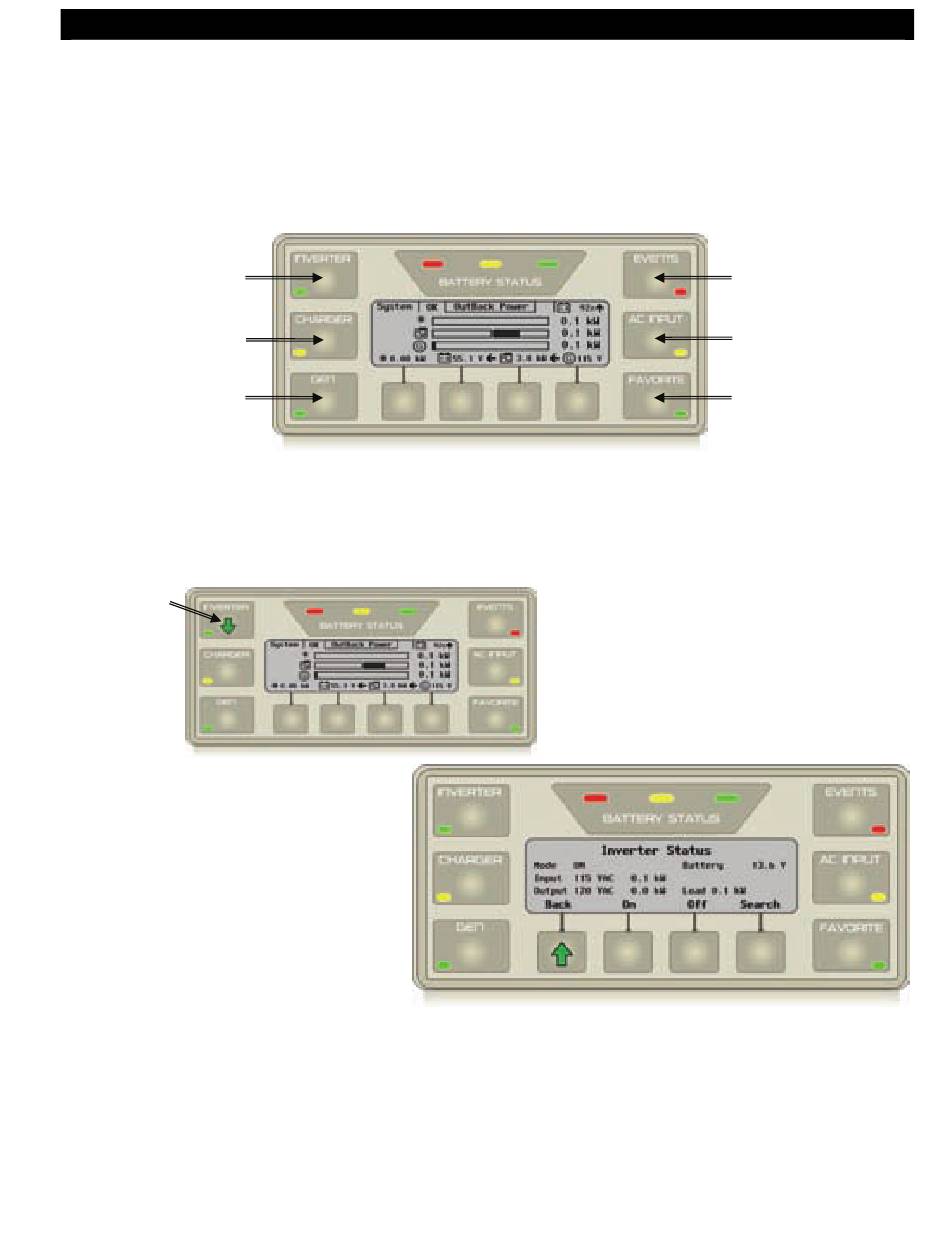

Figure 39 Navigating with the Hot Keys
Figure 40 Using the INVERTER Hot Key
The INVERTER hot key can also be used
to turn the inverter on or off. This is a
global command issued to all inverters.
NOTE: Do not mistake the Inverter soft key
for the INVERTER hot key. See page 28 for
a comparison between the two.
Soft Key Options:
<Back> returns to the Home screen.
<ON> turns the inverter ON.
<OFF> turns the inverter OFF.
<Search> toggles the Search mode
Operation
EVENTS Hot Key
AC INPUT Hot Key
FAVORITE Hot Key
or .
ON OFF
