Shunt Enable

This menu allows the user to turn on or off any of three shunts (current sensors) used by the battery
monitor. For more information on the use of each shunt, see the User's Guide for the FLEXnet DC.
To access the Shunt Enable menu:
1. Access the Battery Monitor menu as shown in Figure 106.
2. Use the control wheel to highlight the Shunt Enable menu.
Press the button in the center of the control wheel to accept the selection.
3. Use the control wheel to increase or decrease the set points to the correct set point.
Press the button in the center of the control wheel to accept the selection.
This should automatically move the highlighting to the next set point.
4. After setting the parameters for each set point, press the TOP navigation key to return to the
Main Menu screen.
Set Points:
The settings for each shunt are Y (yes) and N (no). Y instructs the battery monitor to monitor a particular
shunt and measure the current running through it. N instructs the battery monitor to ignore that shunt.
108

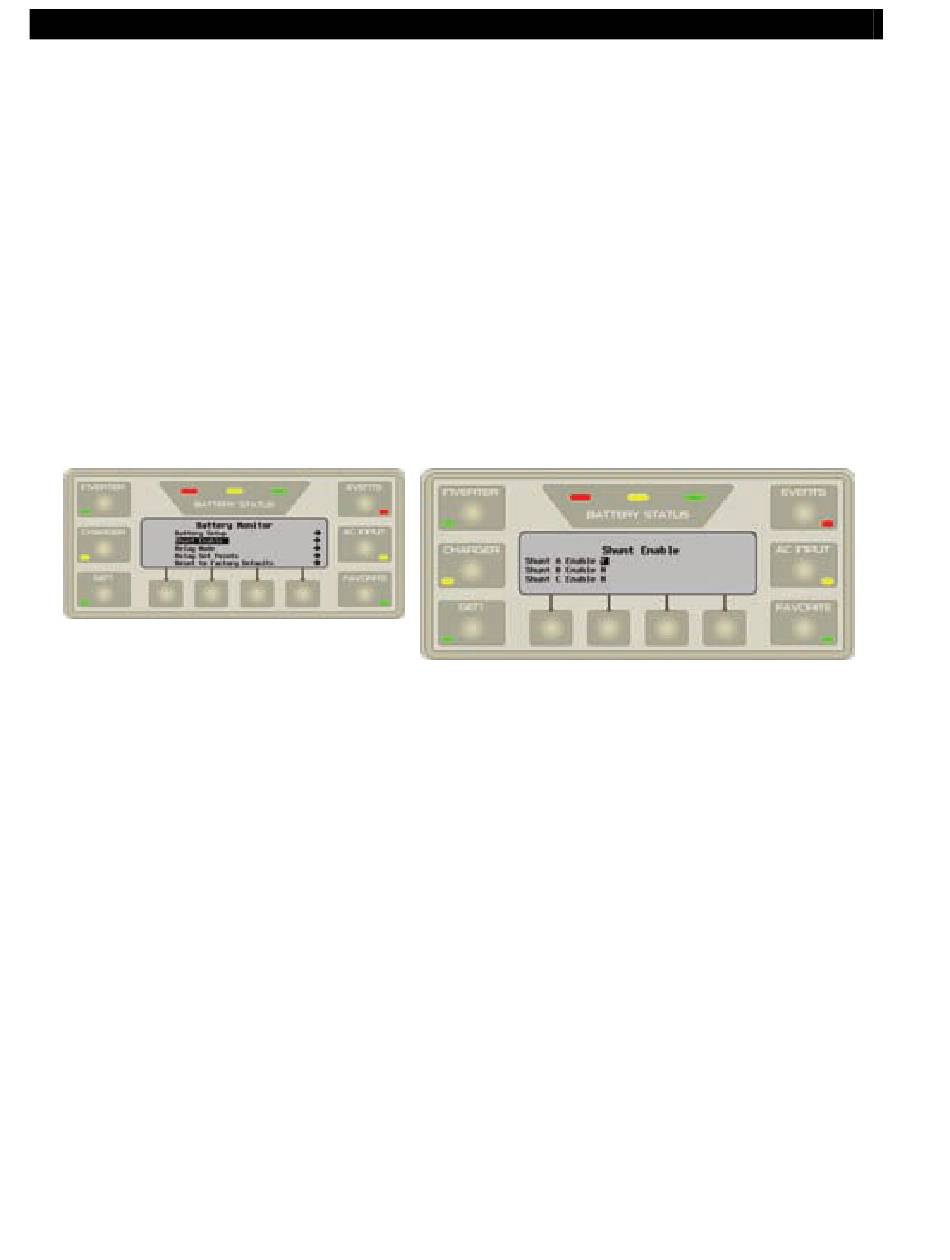

Figure 108 Shunt Enable
Battery Monitor Settings
