Figure 15 Next Soft Key (With Flexnet Dc); Figure 16 Stats Soft Key (With Flexnet Dc) - Alpha Group OutBack Power MATE3 Owner's Manual

From the FLEXnet DC screen, the <Next> soft key brings up the following screens.
Soft Keys:
<Back> returns to the previous screen.
<Stats> shows long-term battery statistics. See below.
<Shunts> shows the operation of up to three shunts
on the battery monitor. See
<Datalog> shows the current data log. See Figure 18.
Soft Keys:
<Back> returns to the previous screen.
<Reset Days> resets the Total Days at 100%
<Reset kAH > resets the Lifetime kAH removed.
32
.
Figure 17

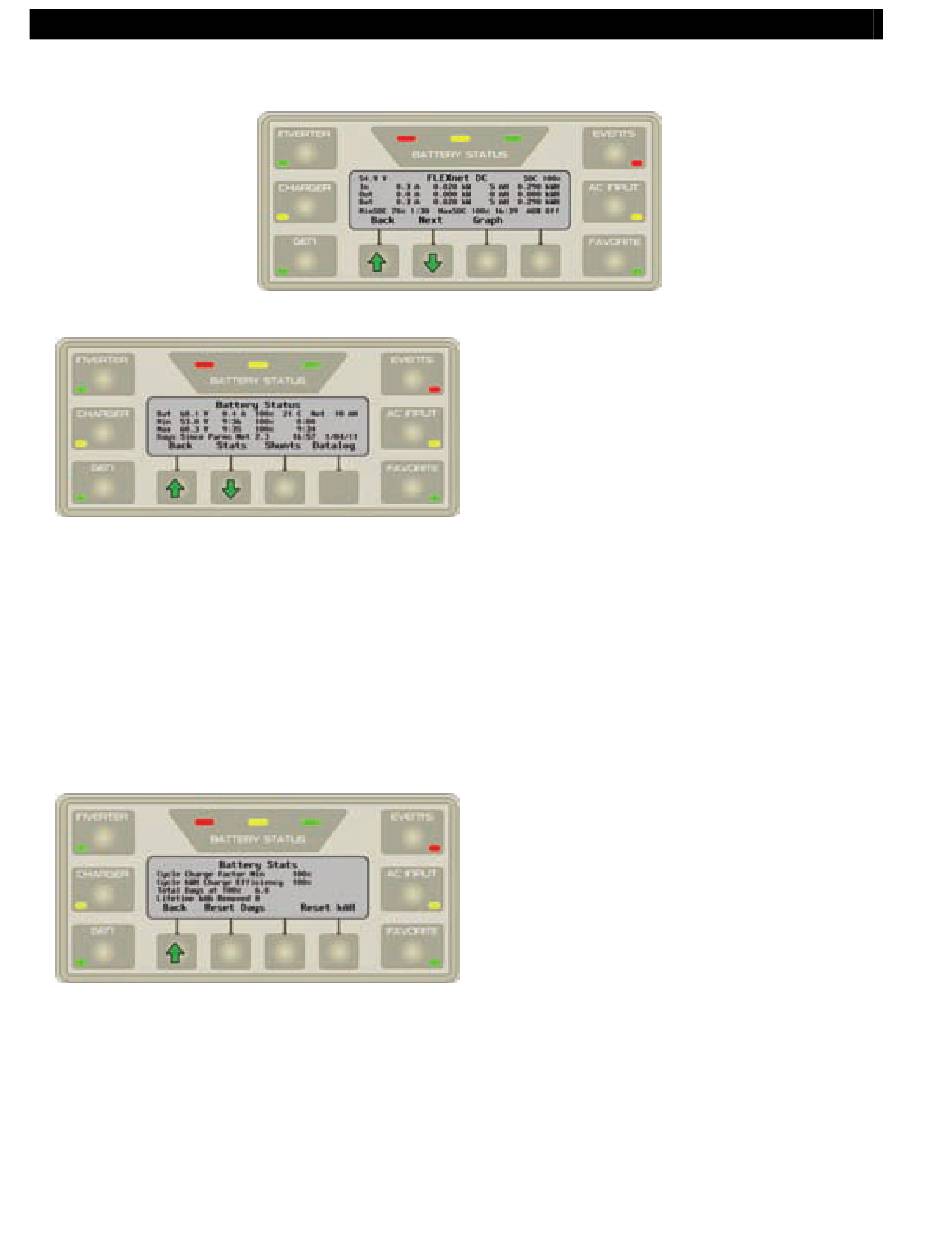

Figure 15 Next Soft Key (with FLEXnet DC)
Figure 16 Stats Soft Key (with FLEXnet DC)
Screen Items:
Bat
displays battery voltage, net current flow
(positive or negative), battery temperature, and
net amp-hour accumulation for that day.
Min
displays the lowest recorded battery
voltage and SOC for that day, and the time
each was recorded.
Max
displays the highest recorded battery
voltage and SOC for that day, and the time
each was recorded.
Screen Items:
Cycle Charge Factor compares the amp-hours removed
from the battery and those returned to the battery
while charging. It displays the comparison as a
percentage. This number can be compared against the
programmed charge factor (see page 106) to judge
battery charging efficiency.
Cycle kWH Charge Efficiency compares the kilowatt-
hours removed from the battery and those returned to
the battery during all activity (such as float charging). It
displays the comparison as a percentage. This number
can be used to judge overall battery efficiency.
Total Days at 100% displays the number of days since
the batteries reached 100% SOC. If the batteries are not
at 100%, this will read 0.
Lifetime kAH Removed accumulates the total
amp-hours that were ever drained from the batteries.
