The <Shunts> soft key shows the operation of up to three shunts on the battery monitor. If a shunt has
not been enabled (see page 108), it will read 0.
Soft Keys:
<Shunt A>, <Shunt B>, and <Shunt C> shows long-term
statistics for each shunt. If a shunt has not been enabled
(see page 107), its statistics will read 0.
<Back> returns to the previous screen.
Soft Keys:
The <Next> soft key presents the next shunt in
alphabetical order.
<Back> returns to the previous screen.

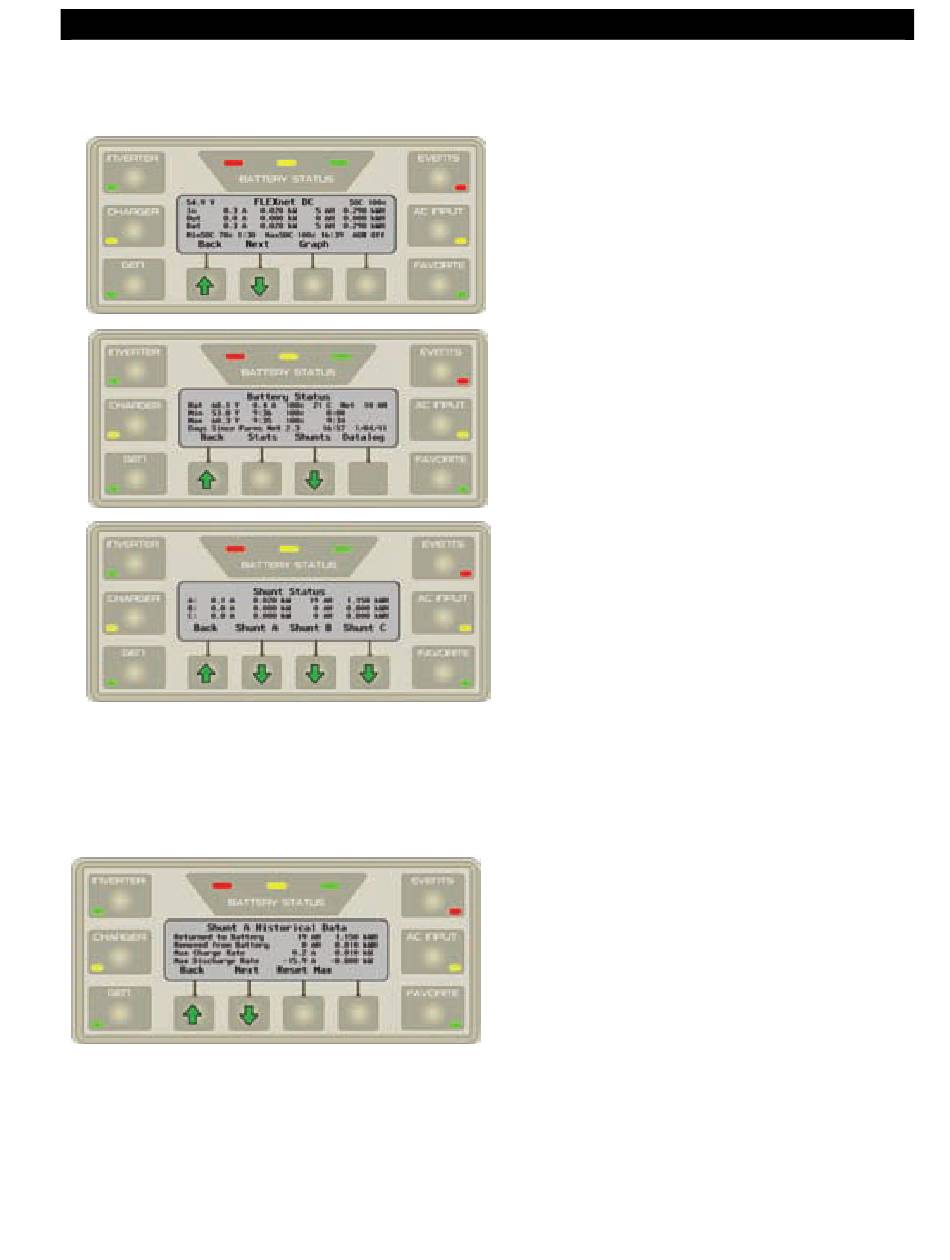

Figure 17
900-0117-01-00 Rev A
Shunts Soft Key and Shunt Data (with FLEXnet DC)
Screen Items:
A: , B:, and C: These lines display individual readings
from the A, B, and C shunts. Each line shows the
current and kilowatts measured on the shunt at that
time, and the amp-hours and kilowatt-hours
accumulated that day.
Screen Items:
Returned to Battery
and
Battery
show the total accumulated amp-hours
that have been delivered to the battery bank (as
charging) or removed from the battery bank (as
loads).
Max Charge Rate
Max Discharge Rate
and
show the highest level of current that was
registered either entering (charging) or leaving
(discharging) the batteries. The Reset Max soft
key can reset both numbers at once.
Operation
Removed from
33
