Set Points

Settings Menus

 The system Settings menus are used for programming functions for the overall system
(e.g., date & time, communication options).
 The device Settings menus are used to program the various system components
(e.g., inverter, charge controller, battery monitor, and MATE3 system display and control.
 The Settings menus are accessed in the Main Menu using the Lock key.
See Figure 56 on page 60 for instructions on entering the Main Menu.
Settings Menu
System
Inverter
Charge Controller
Battery Monitor
MATE3
62

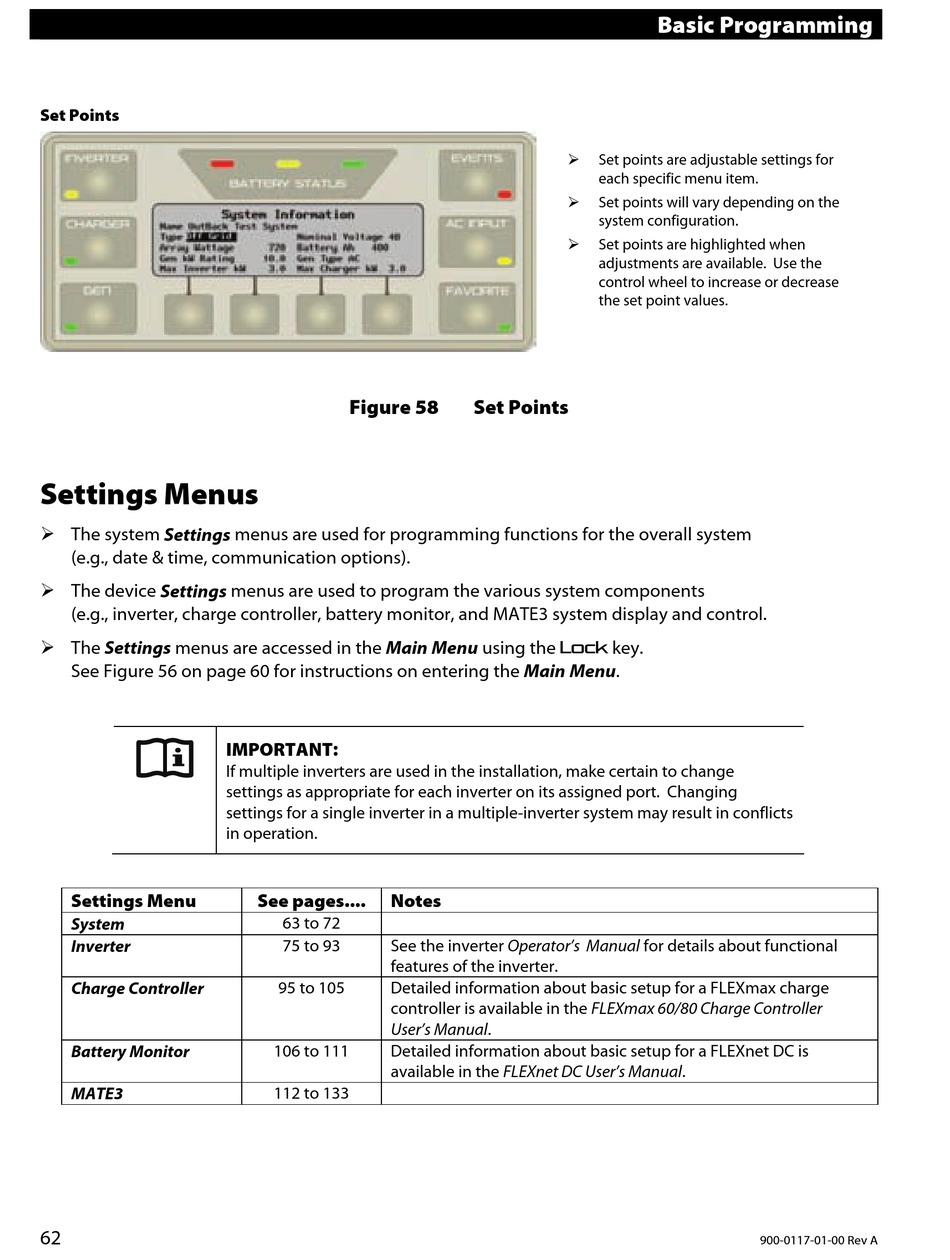

Figure 58
IMPORTANT:
If multiple inverters are used in the installation, make certain to change
settings as appropriate for each inverter on its assigned port. Changing
settings for a single inverter in a multiple-inverter system may result in conflicts
in operation.
See pages.... Notes
63 to 72
75 to 93 See the inverter Operator's Manual for details about functional
features of the inverter.
95 to 105 Detailed information about basic setup for a FLEXmax charge
controller is available in the FLEXmax 60/80 Charge Controller
User's Manual.
106 to 111 Detailed information about basic setup for a FLEXnet DC is
available in the FLEXnet DC User's Manual.
112 to 133

Set points are adjustable settings for
each specific menu item.

Set points will vary depending on the
system configuration.

Set points are highlighted when
adjustments are available. Use the
control wheel to increase or decrease
the set point values.
Set Points
Basic Programming
900-0117-01-00 Rev A
