Operating Instructions
Single-pole conductor-rail system
SingleFlexLine Program 0815
1 1 2 2

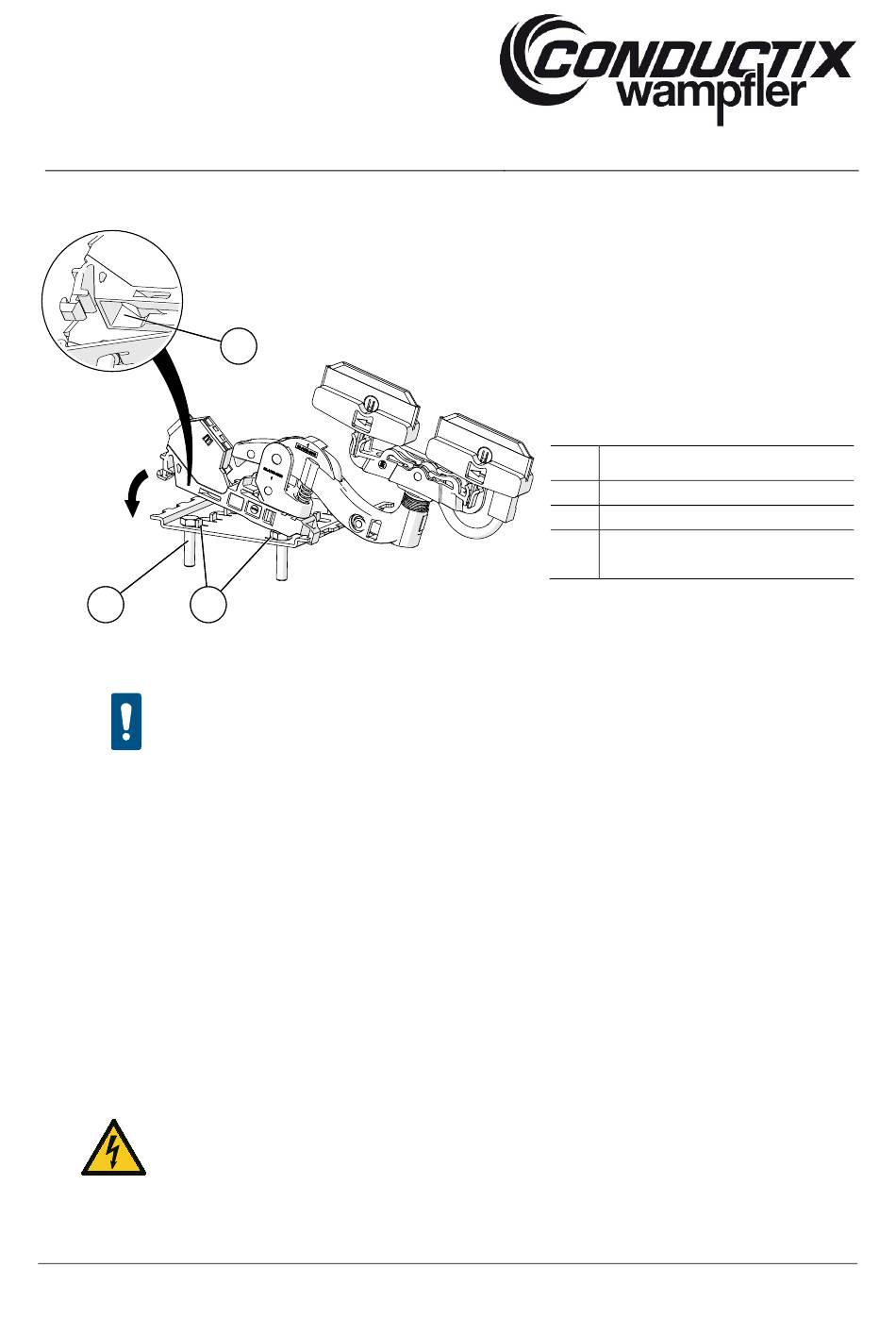

Fig. 70: Mount the EMS current collector (08150A / B...) on a base plate
ATTENTION!
→ When installing current collectors, make sure the installation position is correct.
→ For types without an integrated cable guide, take care with the selection of the connecting cable and ensure the connecting
cables are installed without tensile or directional forces:
→ Use only highly flexible Conductix-Wampfler cables! Basically, use connecting cables only with copper conductors.
→ Use wire end ferrule with plastic sleeve for the flexible connecting cables.
→ For phases, doubly insulated connecting cables must be provided for voltages > 48 V.
→ Do not bundle, fix or attach identification signs to the current-collector-connecting cable!
→ Do not allow foreign objects to protrude into the moving range of the current collector and connecting cables!
→ For systems with curves/bends, make sure that the current collector is installed in the pivot or steering axis—only by doing this
can it be ensured that the correct contact pressure is maintained when passing through (inside/outside) curves.
Danger of electric shock!
Always protect unoccupied sockets on the current-collecting heads with protective caps!
The open connection must always be protected with a protective cap. This must also be observed when
DANGER!
changing current-collecting heads (see Fig. 71).
BAL0815-0002d-US
www.conductix.us
3 3
One screw can be put on each pole at the EMS current collector!
The screw heads are be covered by the current collectors!
Pos.
1
2
3
translated document
Description
DIN EN ISO 4017 M5 Screws
Anti-rotation device
Room for screw head underneath cur-
rent collector
