During installation, it can happen that a conductor-rail has to be taken out of a hanger clamp again.
There is a dismantling tool for this (order no.: 081092). This is used to dismantle the conductor-rail fixed
in the hanger clamp and end caps bars (see Fig. 45–Fig. 47; see chapter 11.2).

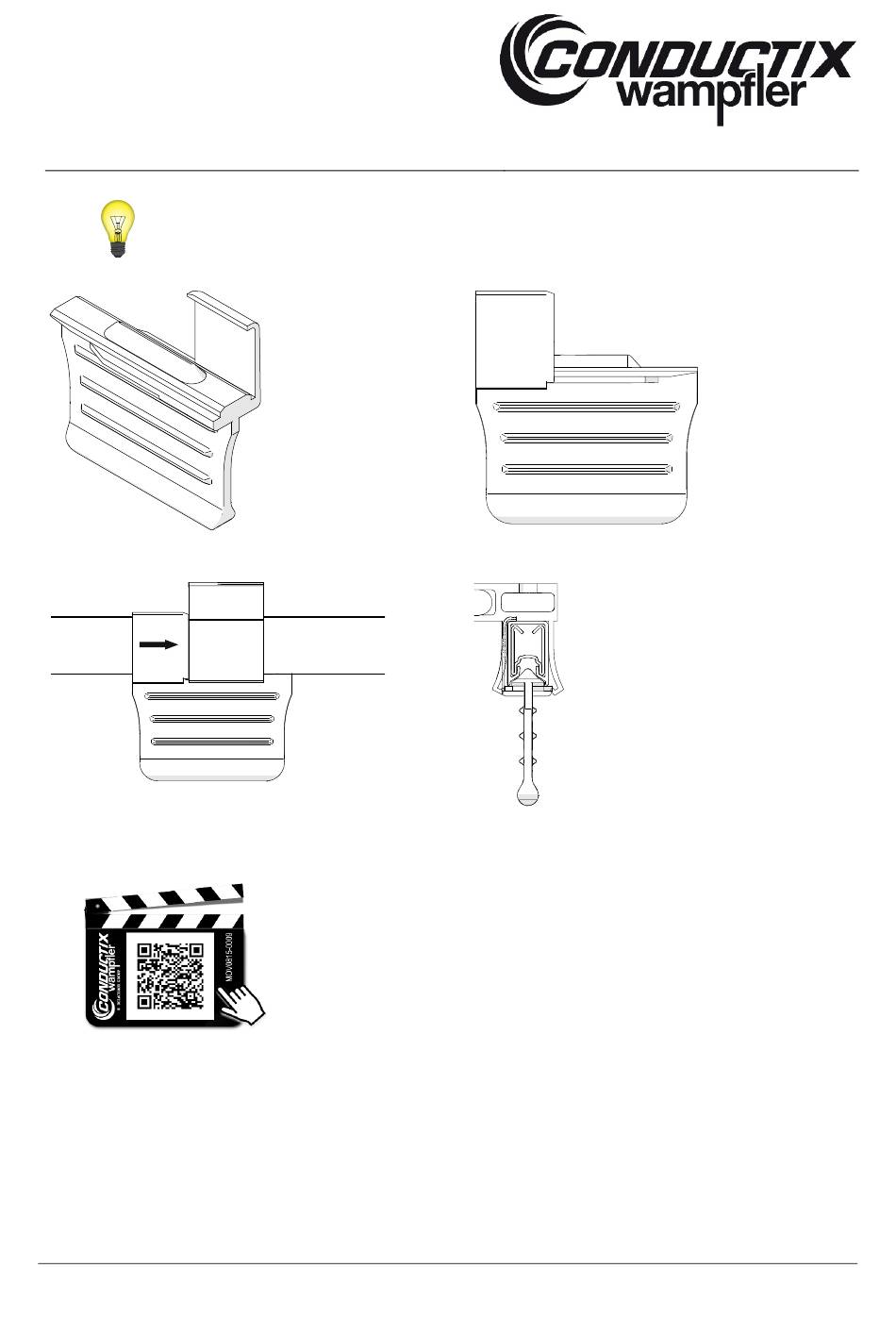

Fig. 45: Dismantling tool
Fig. 47: Dismantling tool in use (side view)
BAL0815-0002d-US
www.conductix.us
Use the QR code
Using Dismantling Tool.
translated document
Fig. 46: Dismantling tool (side view)
Fig. 48: Dismantling tool in use (front view)
("click" or "scan"), to watch our animation
