Installing The Current Collector - Conductix-Wampfler SingleFlexLine Program 0815 Operating Instructions Manual

Operating Instructions
Single-pole conductor-rail system
SingleFlexLine Program 0815
6.3.4

Installing the current collector

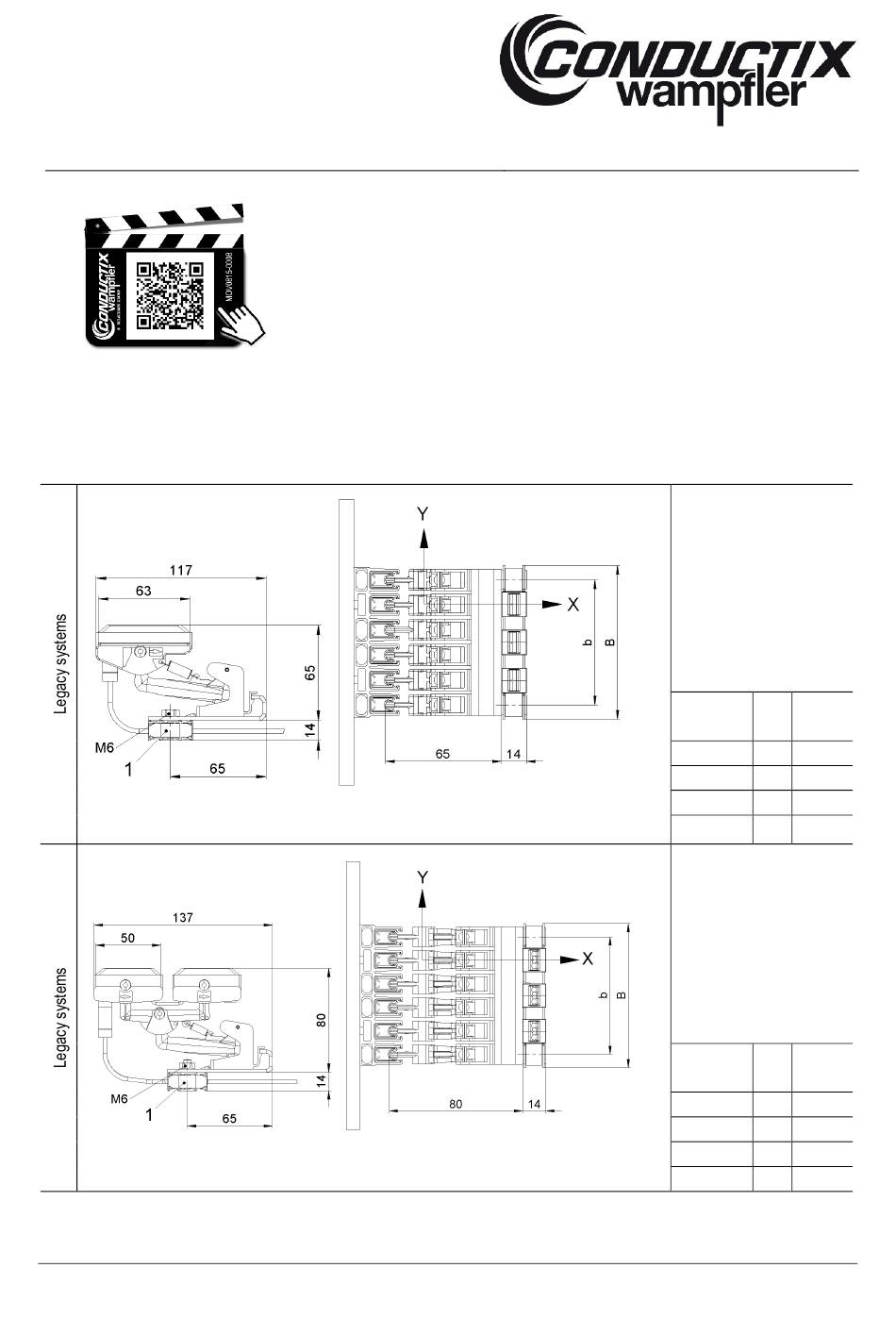

Different current collectors are used for existing and new systems:
Fig. 66: Single current collector (081506..., 081507...)
Fig. 67: Dual current collectors (081508..., 081509...)
BAL0815-0002d-US
www.conductix.us
Use the QR code
Mounting Fixed Point.
translated document
("click" or "scan"), to watch our animation
Tolerances in the X-axis
and Y-axis: ± 10 mm
1 = strain relief (optional)
Number b B
of Poles
4 42 54
6 70 82
8 70 110
10 70 120
Tolerances in the X-axis
and Y-axis: ± 10 mm
1 = strain relief (optional)
Number b B
of Poles
4 42 54
6 70 82
8 70 110
10 70 120
page 57 of 94
