Operating Instructions
Single-pole conductor-rail system
SingleFlexLine Program 0815
6.3.3.1

Setting the hanger clamps

The following must be observed when setting the hanger clamps:
→ Set the hanger clamps at intervals of approx. 500 mm and at intervals of 400 mm and 250 mm respectively for internal and
external horizontal bends. Mount the hanger clamps at a distance of 100 mm – 150 mm from the end cap (see Fig. 31).
→ At transitions and connection points, a minimum distance to end caps, connectors and expansion elements of at least 200 mm
must be maintained. Here, the hanger clamps must be set such that collisions of hanger clamps with other components of the
system are avoided on expansion of the system.
Hanger clamps are screwed or snapped into customer-specific guideway profiles. When installing, ensure that the pretensioning
is not too great. Excessive pretensioning will distort the hanger clamp. There is a risk that the hanger clamp will no longer rest
flat on the central bar of the EMS rails.
Nevertheless, the hanger clamp must be so firmly seated in its position that it cannot dislocate freely in the guideway profile.
Frequently, the hanger clamps only become firmly seated in the EMS rail when the conductor-rails have been installed.
→ Provide additional fixing for clip-in hanger clamps that do not remain in their positions.

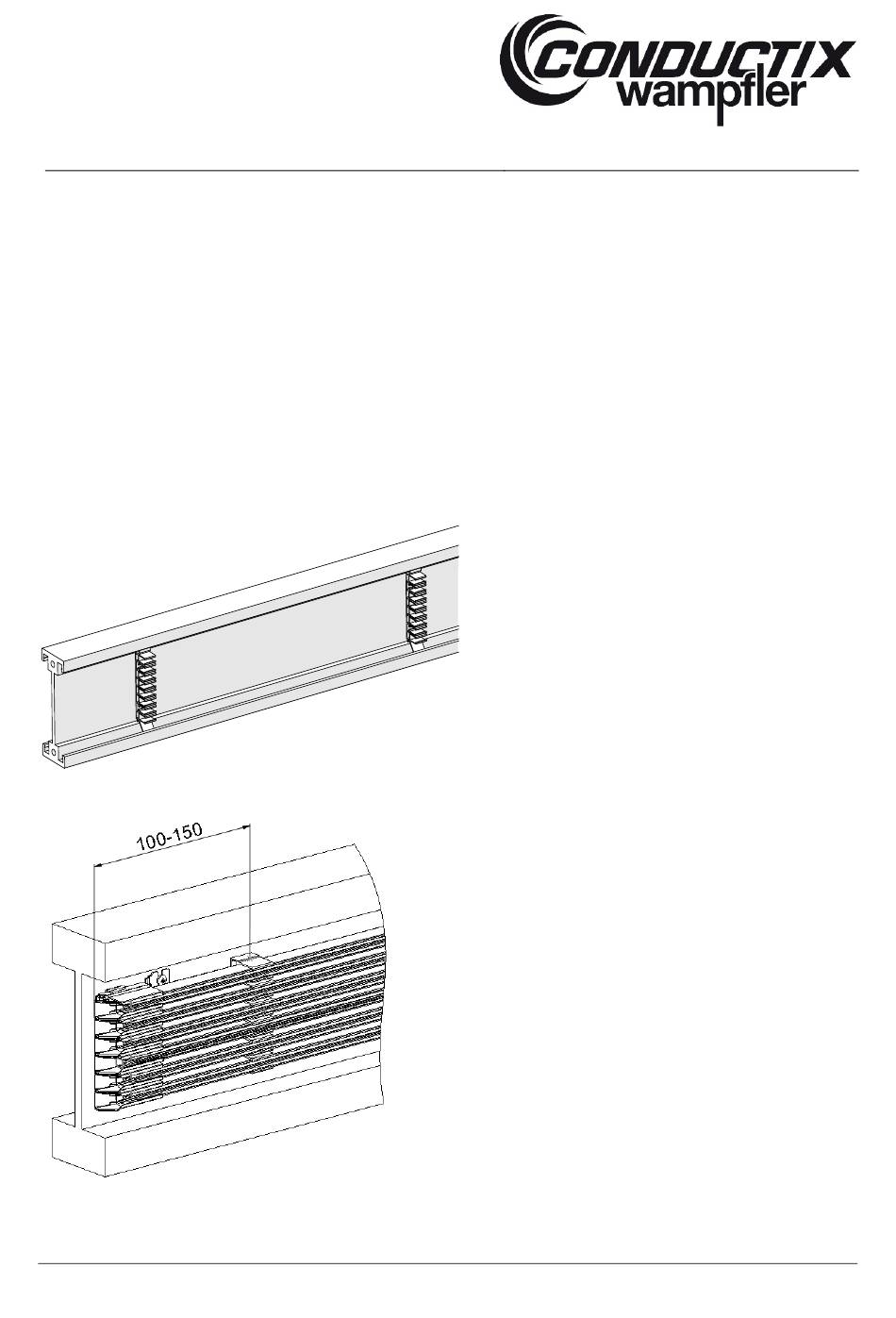

Fig. 30: Hanger clamp in EMS rail
Fig. 31: Distance of the hanger clamp to the end cap
