Operating Instructions
Single-pole conductor-rail system
SingleFlexLine Program 0815
6.3.3.3

Installing a section power feed

→ The section power feed is installed instead of a connector. Here, a different clamping part and a power feed cap with room for a
connecting cable to run out of it are used.

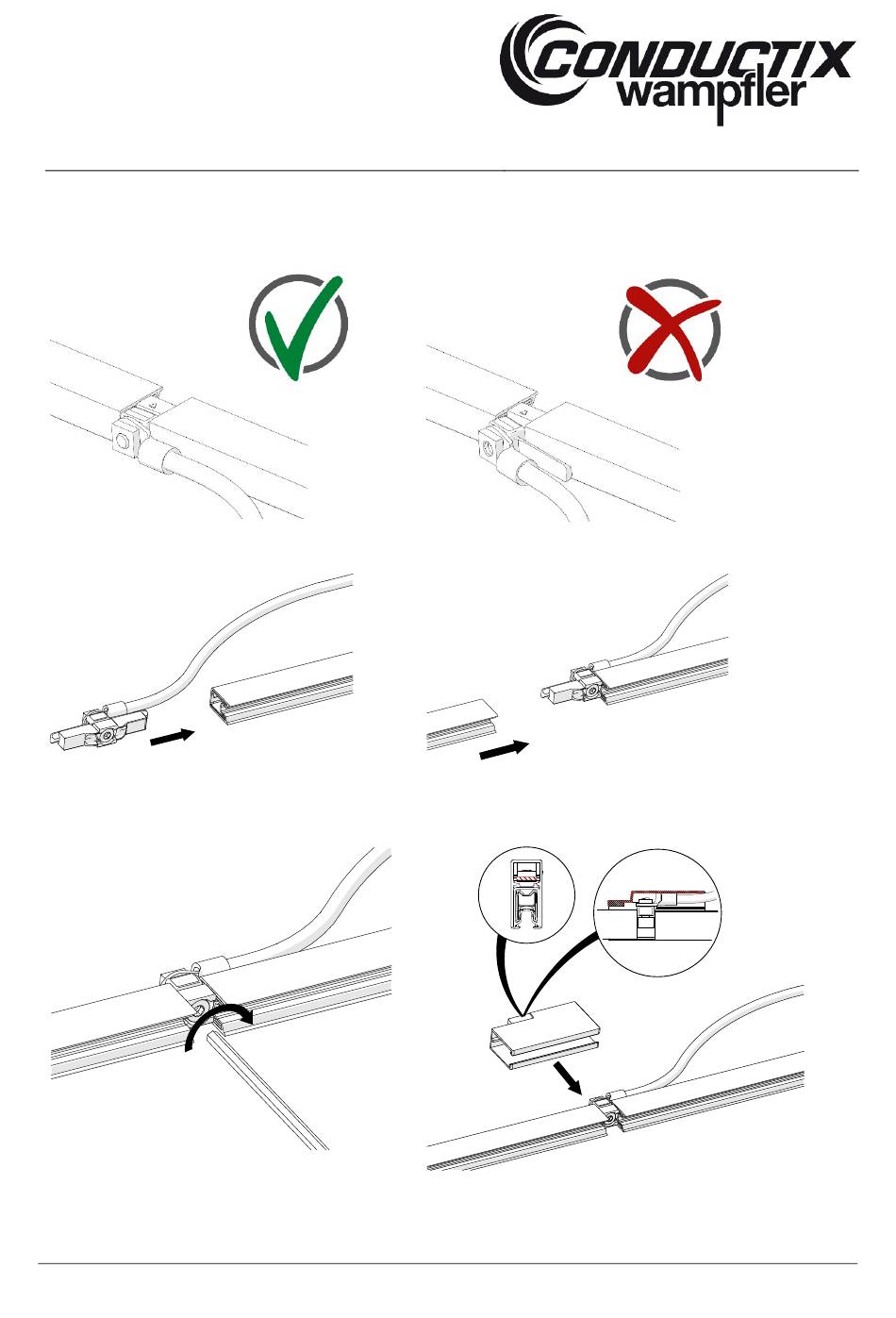

Fig. 49: Correct position of the clamping unit
Fig. 51: Slightly loosen the screw connection with a screwdriver
(½ turn), locking the square nut to facilitate loosening if
necessary
Fig. 53: Slide the power feed cover over the preassembled rail
connector.
BAL0815-0002d-US
www.conductix.us
Fig. 50: Incorrect position of the clamping unit
Fig. 52: Push the rail section into the free end of the section power feed as
far as the stop
Fig. 54: Tighten the hexagonal screw to 2 Nm
translated document page 51 of 94
