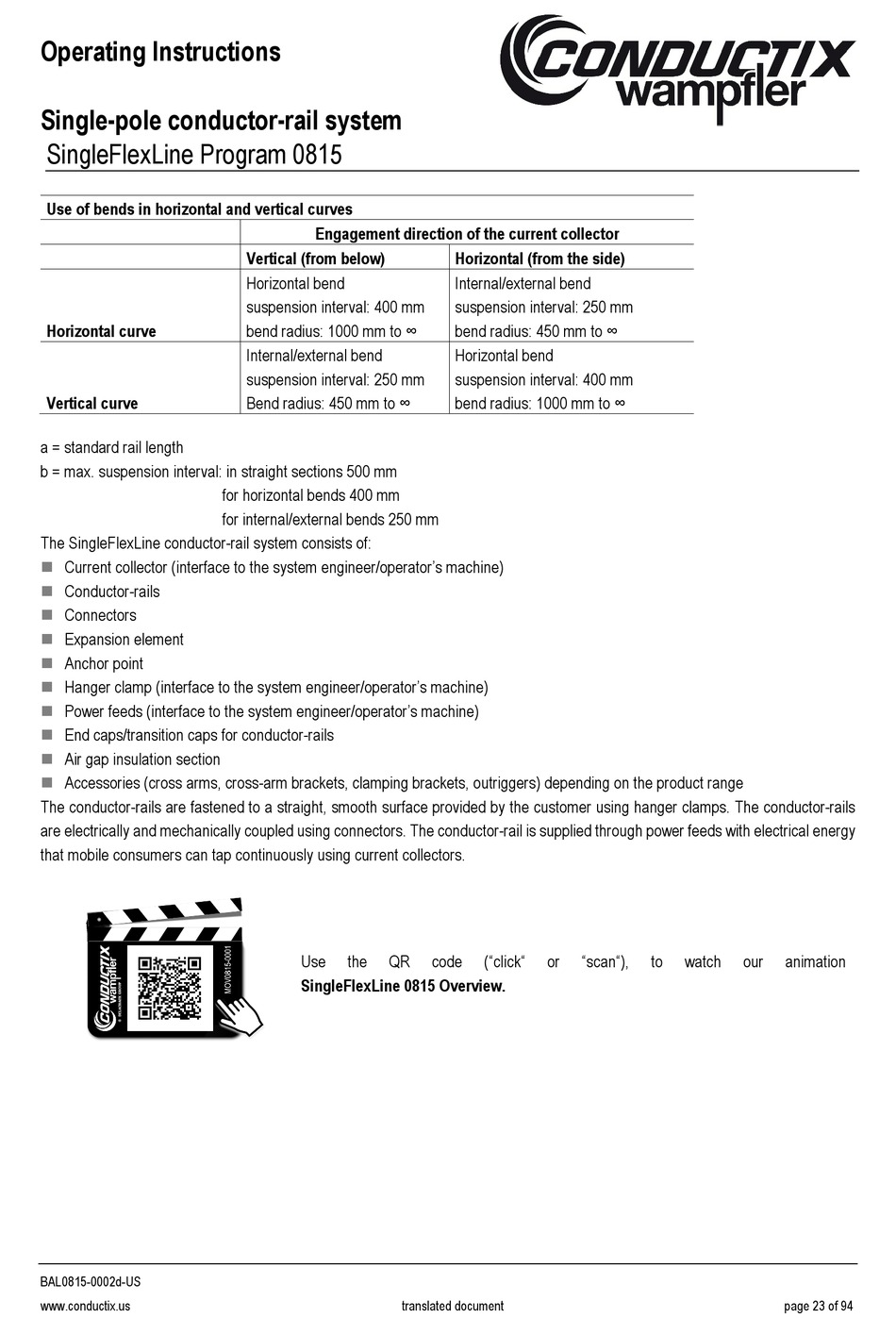

Operating Instructions
Single-pole conductor-rail system
SingleFlexLine Program 0815
Use of bends in horizontal and vertical curves
Horizontal curve
Vertical curve
a = standard rail length
b = max. suspension interval: in straight sections 500 mm
The SingleFlexLine conductor-rail system consists of:
Current collector (interface to the system engineer/operator's machine)

Conductor-rails

Connectors

Expansion element

Anchor point

Hanger clamp (interface to the system engineer/operator's machine)

Power feeds (interface to the system engineer/operator's machine)

End caps/transition caps for conductor-rails

Air gap insulation section

Accessories (cross arms, cross-arm brackets, clamping brackets, outriggers) depending on the product range

The conductor-rails are fastened to a straight, smooth surface provided by the customer using hanger clamps. The conductor-rails
are electrically and mechanically coupled using connectors. The conductor-rail is supplied through power feeds with electrical energy
that mobile consumers can tap continuously using current collectors.
BAL0815-0002d-US
www.conductix.us
Engagement direction of the current collector
Vertical (from below)
Horizontal bend
suspension interval: 400 mm
bend radius: 1000 mm to ∞
Internal/external bend
suspension interval: 250 mm
Bend radius: 450 mm to ∞
for horizontal bends 400 mm
for internal/external bends 250 mm
Use the QR
SingleFlexLine 0815 Overview.
Horizontal (from the side)
Internal/external bend
suspension interval: 250 mm
bend radius: 450 mm to ∞
Horizontal bend
suspension interval: 400 mm
bend radius: 1000 mm to ∞
code ("click" or
translated document
"scan"), to watch our animation
