Operating Instructions
Single-pole conductor-rail system
SingleFlexLine Program 0815

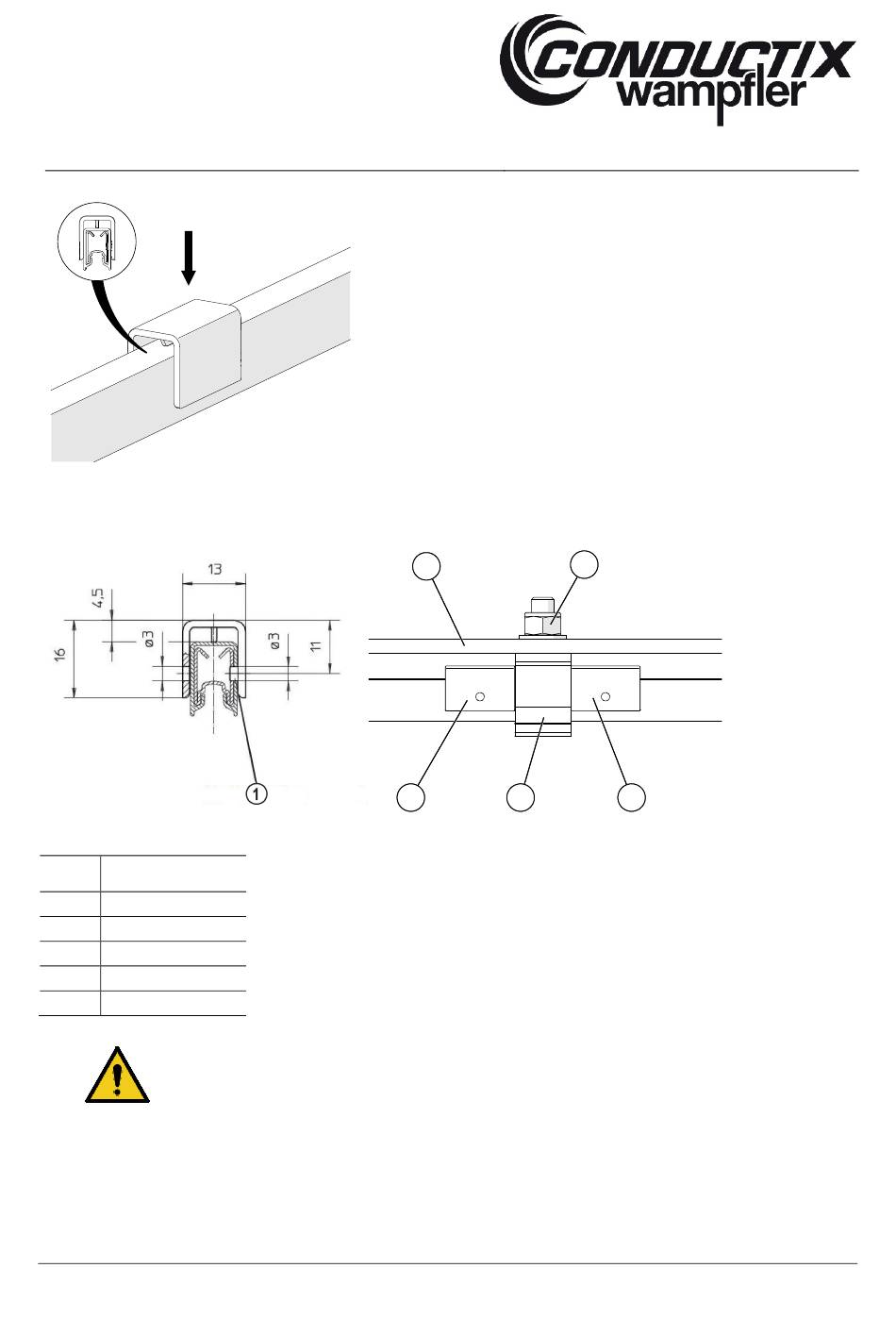

Fig. 64: Insert the engagement cam into the hole
Fig. 65: Fully assembled fixed point
Item Name
1 Engagement cam
2 Fixed-point cap
3 Hanger clamp
4 Track profile
5 Screw
Additional fixing of the hanger clamp is required for clip-in hanger clamps!
For clip-in hanger clamps, the hanger clamp that is to be used as the fixed point must be addition-
ally secured to the support profile/building structure with a screw.
