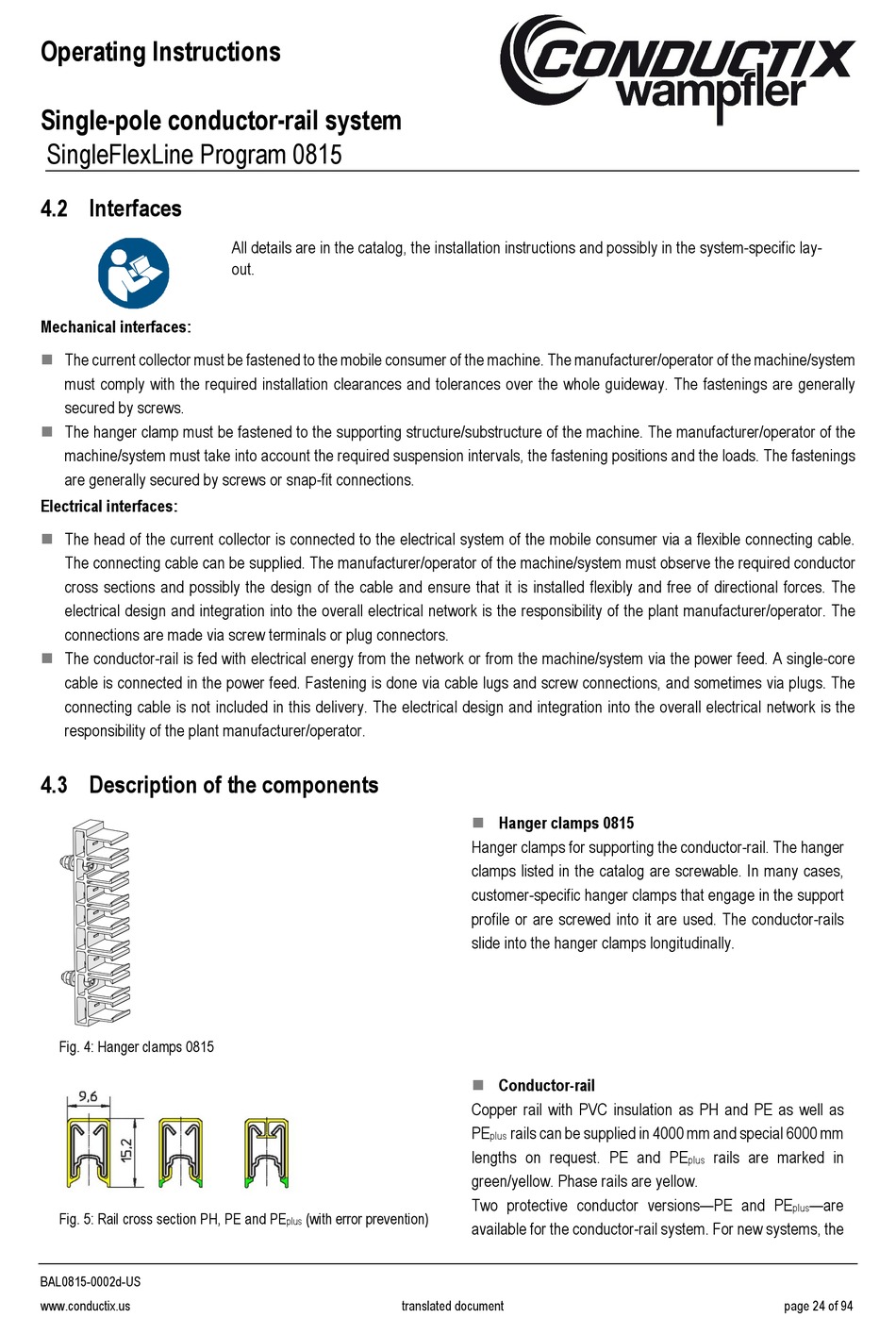

Operating Instructions
Single-pole conductor-rail system
SingleFlexLine Program 0815

4.2 Interfaces

Mechanical interfaces:
The current collector must be fastened to the mobile consumer of the machine. The manufacturer/operator of the machine/system

must comply with the required installation clearances and tolerances over the whole guideway. The fastenings are generally
secured by screws.
The hanger clamp must be fastened to the supporting structure/substructure of the machine. The manufacturer/operator of the

machine/system must take into account the required suspension intervals, the fastening positions and the loads. The fastenings
are generally secured by screws or snap-fit connections.
Electrical interfaces:
The head of the current collector is connected to the electrical system of the mobile consumer via a flexible connecting cable.

The connecting cable can be supplied. The manufacturer/operator of the machine/system must observe the required conductor
cross sections and possibly the design of the cable and ensure that it is installed flexibly and free of directional forces. The
electrical design and integration into the overall electrical network is the responsibility of the plant manufacturer/operator. The
connections are made via screw terminals or plug connectors.
The conductor-rail is fed with electrical energy from the network or from the machine/system via the power feed. A single-core

cable is connected in the power feed. Fastening is done via cable lugs and screw connections, and sometimes via plugs. The
connecting cable is not included in this delivery. The electrical design and integration into the overall electrical network is the
responsibility of the plant manufacturer/operator.

4.3 Description of the components

Fig. 4: Hanger clamps 0815
Fig. 5: Rail cross section PH, PE and PE
BAL0815-0002d-US
www.conductix.us
All details are in the catalog, the installation instructions and possibly in the system-specific lay-
out.
(with error prevention)
plus
Hanger clamps 0815

Hanger clamps for supporting the conductor-rail. The hanger
clamps listed in the catalog are screwable. In many cases,
customer-specific hanger clamps that engage in the support
profile or are screwed into it are used. The conductor-rails
slide into the hanger clamps longitudinally.
Conductor-rail

Copper rail with PVC insulation as PH and PE as well as
PE rails can be supplied in 4000 mm and special 6000 mm
plus
lengths on request. PE and PE
green/yellow. Phase rails are yellow.
Two protective conductor versions—PE and PE
available for the conductor-rail system. For new systems, the
translated document
rails are marked in
plus
—are
plus
