Operating Instructions
Single-pole conductor-rail system
SingleFlexLine Program 0815

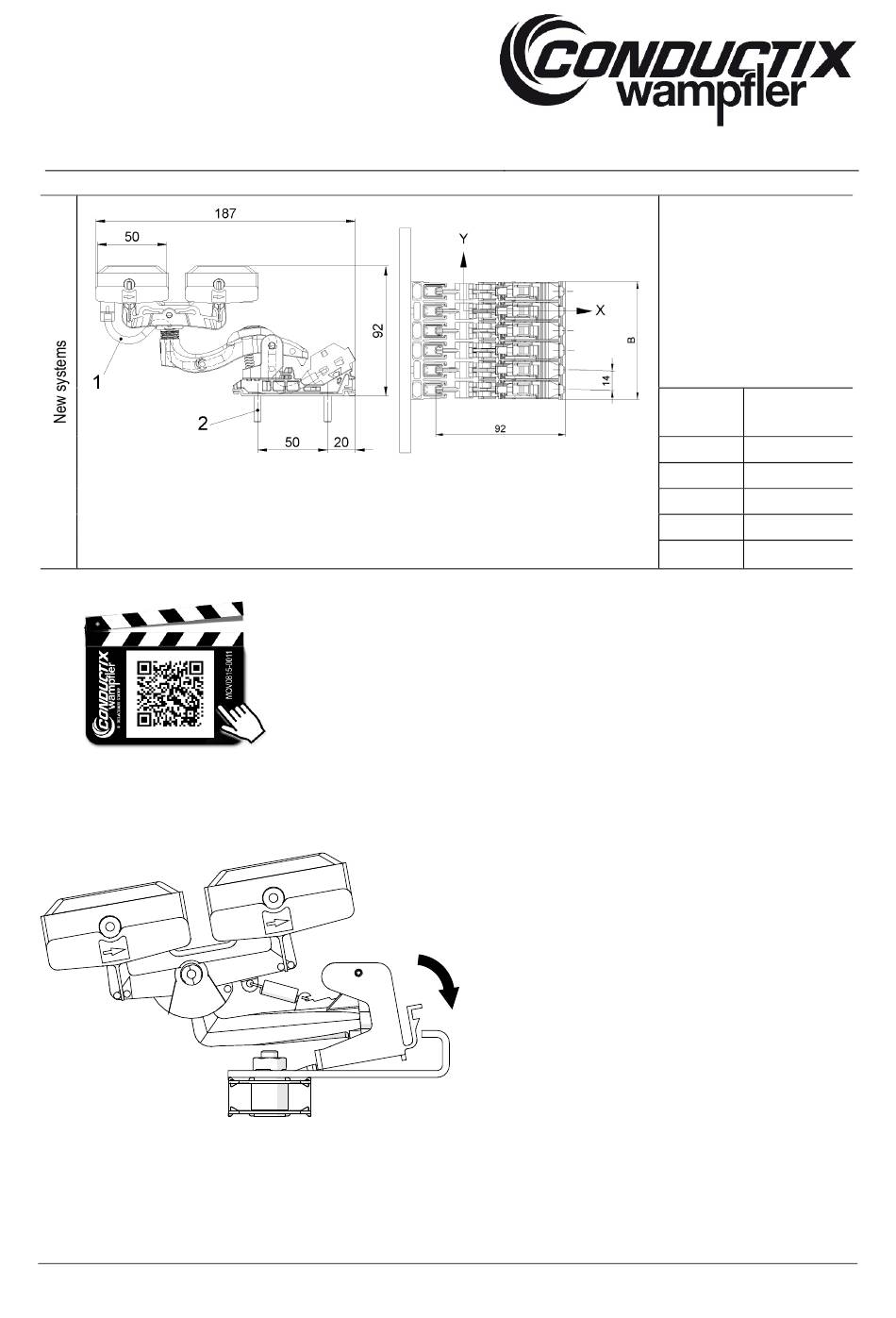

Fig. 68: EMS current collector (08150A / B...)
*The screw is not part of the scope of supply. It must be ordered separately.
The single current collectors are mounted on base plates:
Fig. 69: Mount the single current collector (081506..., 081507..., 081508..., 081509...) on base plate
BAL0815-0002d-US
www.conductix.us
Use the QR code
EMS Current Collector Tolerances.
translated document
("click" or "scan"), to
Tolerances in the X-axis
and Y-axis: ± 15 mm
1 = Hexagon screw M5 DIN
EN 4017 (DIN 933)*
2 = integrated cable
Number B
of Poles
2 28
4 56
6 84
8 112
10 140
watch our animation
page 58 of 94
