Operating Instructions
Single-pole conductor-rail system
SingleFlexLine Program 0815

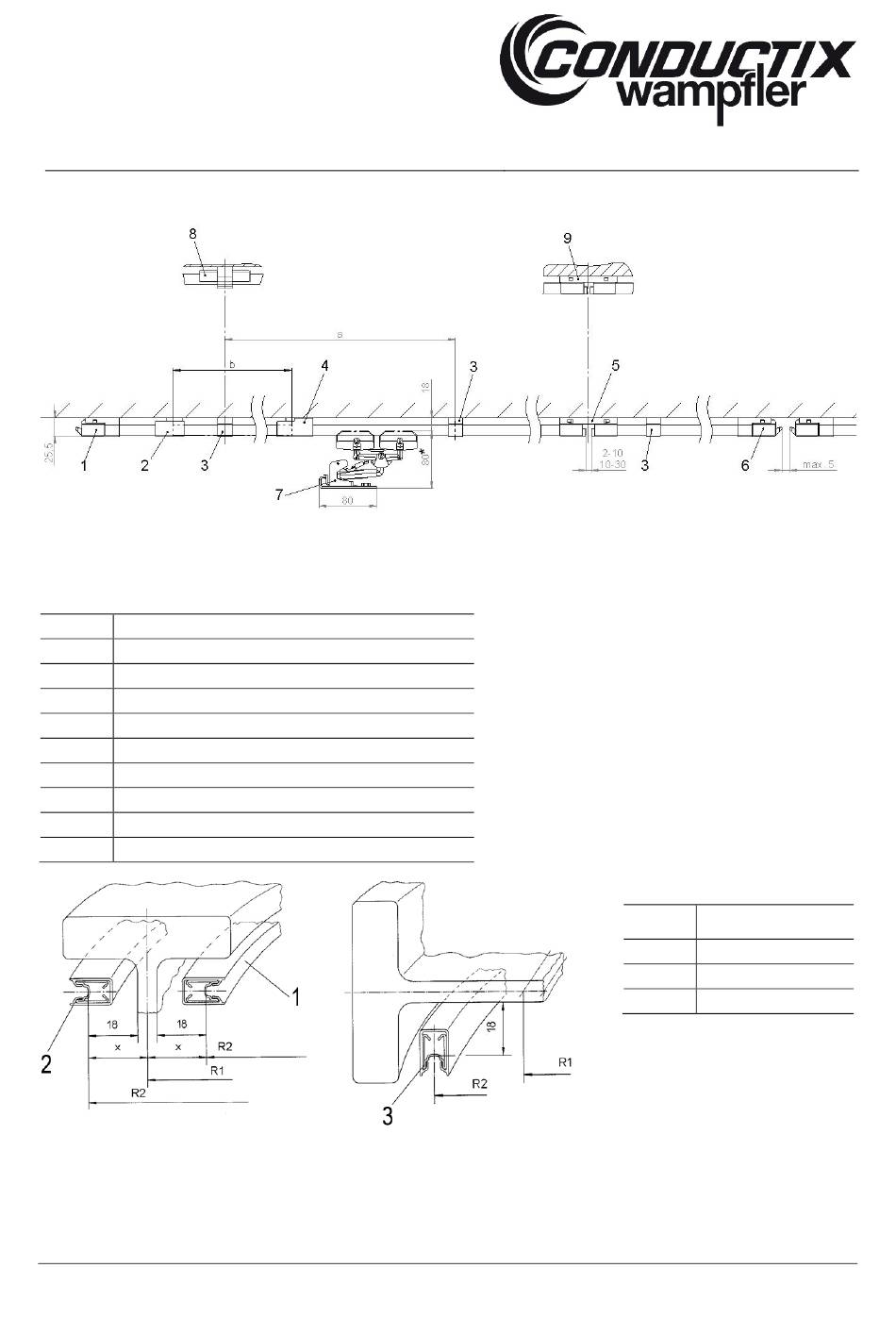

Fig. 2: System layout
*The installation spacing depends on the current-collector type (65 mm, 80 mm, 92 mm)
Item Name
1 End cap
2 Connectors
3 Hanger clamp
4 Power feed
5 Air gap insulation section with expansion travel
6 Transition caps/"long" end caps
7 Current collector
8 Hanger clamp with anchor point caps
9 Air gap insulation section without expansion travel
Fig. 3: Outside/inside bends and horizontal bend
BAL0815-0002d-US
www.conductix.us translated document
Item Name
1 Inside bend
2 Outside bend
3 Horizontal bend
page 22 of 94
