Operating Instructions
Single-pole conductor-rail system
SingleFlexLine Program 0815
6.3.3.4

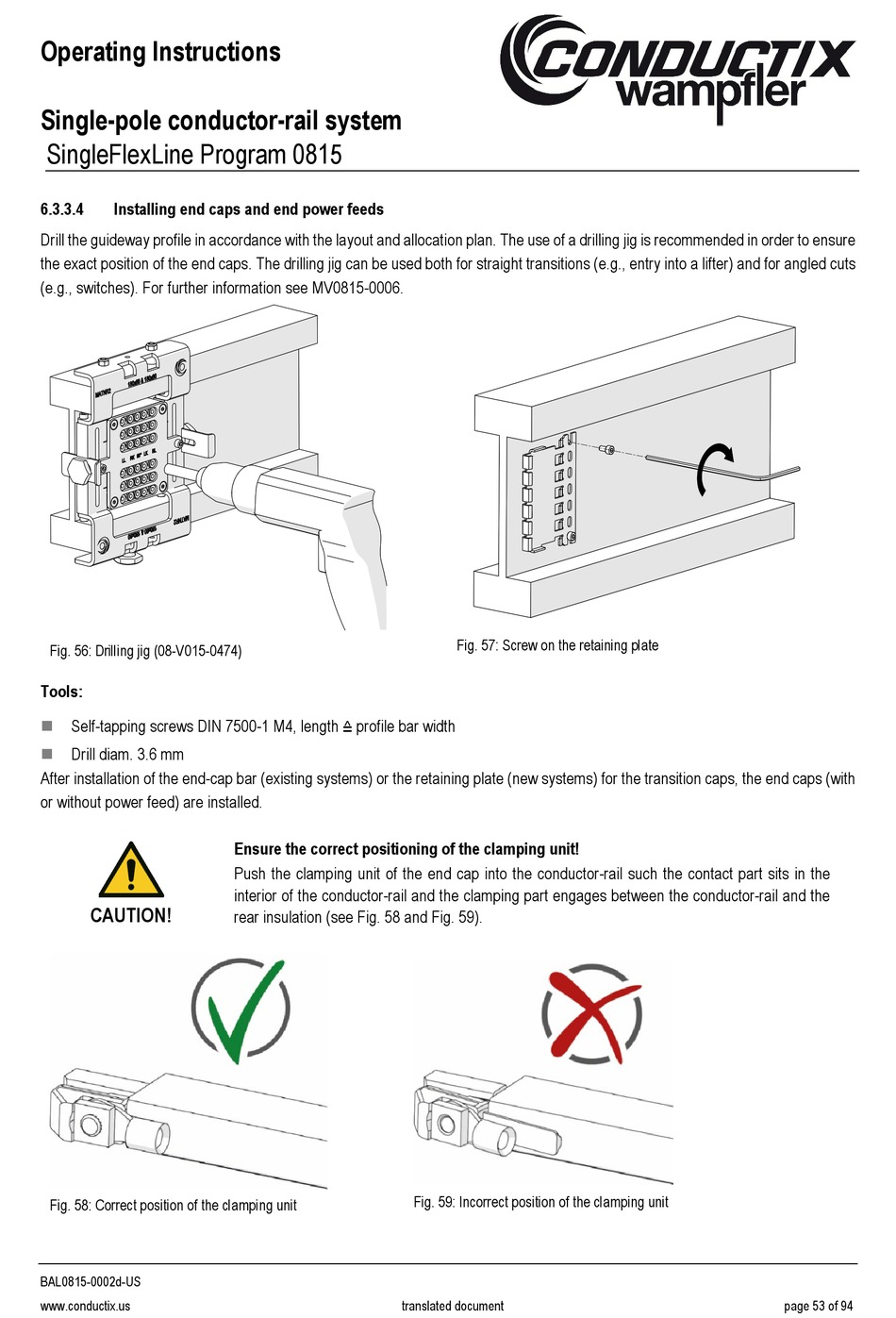

Installing end caps and end power feeds

Drill the guideway profile in accordance with the layout and allocation plan. The use of a drilling jig is recommended in order to ensure
the exact position of the end caps. The drilling jig can be used both for straight transitions (e.g., entry into a lifter) and for angled cuts
(e.g., switches). For further information see MV0815-0006.
Fig. 56: Drilling jig (08-V015-0474)
Tools:
Self-tapping screws DIN 7500-1 M4, length ≙ profile bar width

Drill diam. 3.6 mm

After installation of the end-cap bar (existing systems) or the retaining plate (new systems) for the transition caps, the end caps (with
or without power feed) are installed.
CAUTION!
Fig. 58: Correct position of the clamping unit
BAL0815-0002d-US
www.conductix.us
Ensure the correct positioning of the clamping unit!
Push the clamping unit of the end cap into the conductor-rail such the contact part sits in the
interior of the conductor-rail and the clamping part engages between the conductor-rail and the
rear insulation (see Fig. 58 and Fig. 59).
translated document
Fig. 57: Screw on the retaining plate
Fig. 59: Incorrect position of the clamping unit
page 53 of 94
