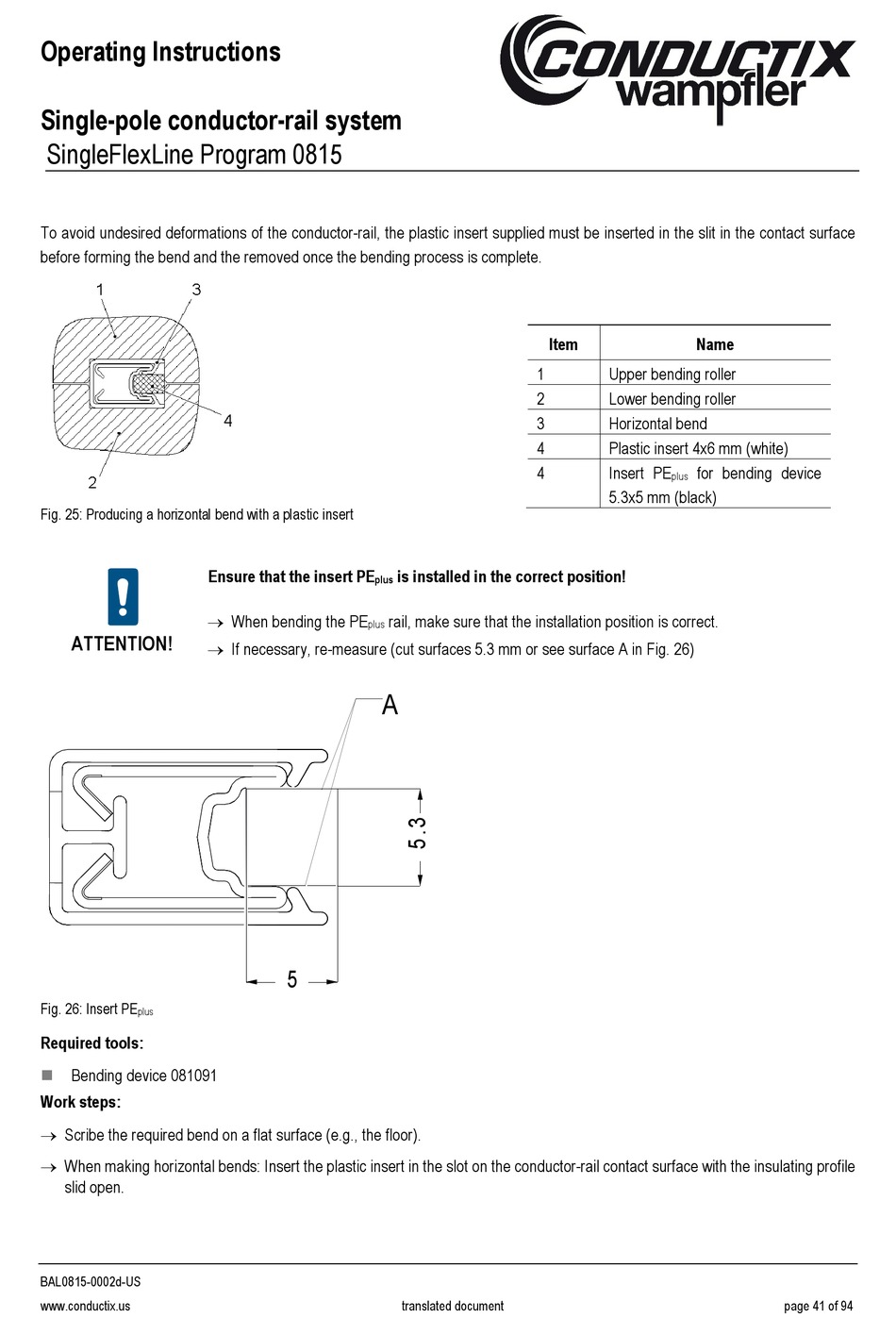

Operating Instructions
Single-pole conductor-rail system
SingleFlexLine Program 0815
To avoid undesired deformations of the conductor-rail, the plastic insert supplied must be inserted in the slit in the contact surface
before forming the bend and the removed once the bending process is complete.
Fig. 25: Producing a horizontal bend with a plastic insert
Ensure that the insert PE
→ When bending the PE
ATTENTION!
→ If necessary, re-measure (cut surfaces 5.3 mm or see surface A in Fig. 26)
Fig. 26: Insert PE
plus
Required tools:
Bending device 081091

Work steps:
→ Scribe the required bend on a flat surface (e.g., the floor).
→ When making horizontal bends: Insert the plastic insert in the slot on the conductor-rail contact surface with the insulating profile
slid open.
BAL0815-0002d-US
www.conductix.us
is installed in the correct position!
plus
rail, make sure that the installation position is correct.
plus
A
5
translated document
Item Name
1 Upper bending roller
2 Lower bending roller
3 Horizontal bend
4 Plastic insert 4x6 mm (white)
4 Insert PE for bending device
plus
5.3x5 mm (black)
